Installation Procedure

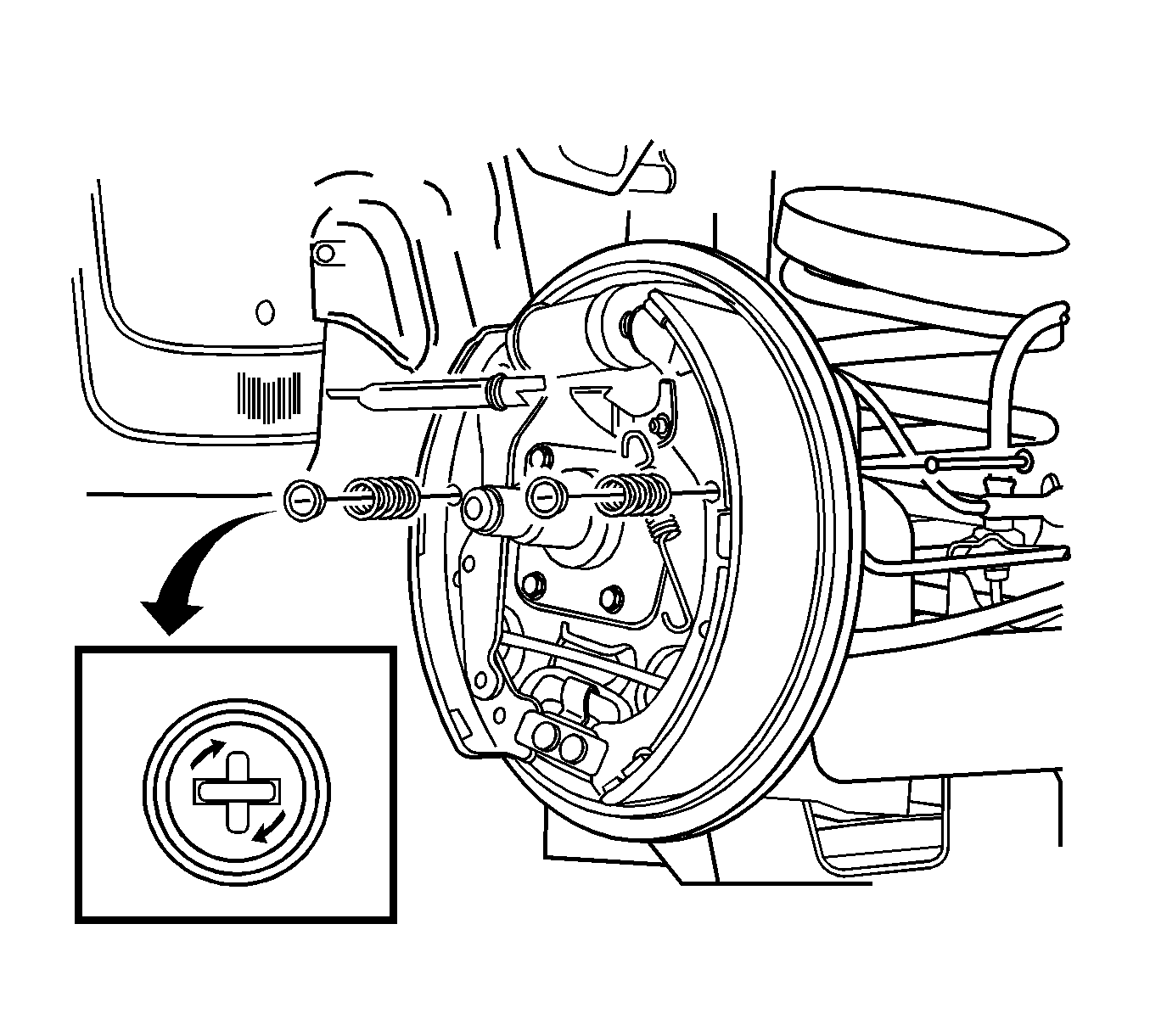

Fig 1: View of Trailing Shoe and Lining Assembly Hold-Down Return Spring

Courtesy of GENERAL MOTORS CORP.

Install the new parking brake cable through the brake backing plate. Use a new cable if the original is frayed or damaged. Attach the cable to the parking brake shoe lever.

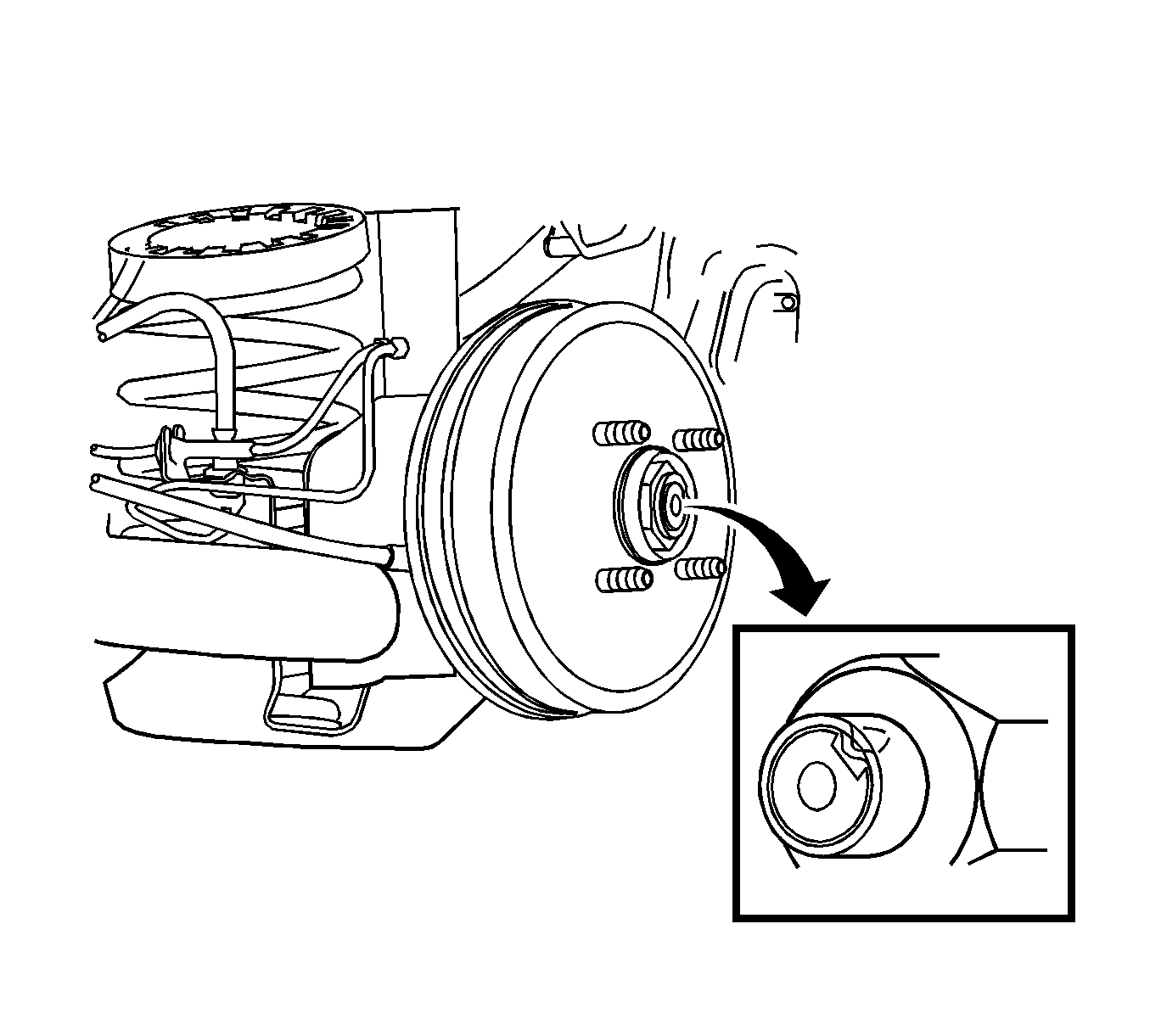

Fig 2: View of Lock Ring and Caulking Nut From Spindle

Courtesy of GENERAL MOTORS CORP.

Insert the plastic sleeve into the brake backing plate and press in the retaining ring. Make sure the parking brake cable is routed correctly.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the brake drums and fasten the caulking nut.
Tighten: Tighten the rear brake drum caulking nut to 200 N.m (147 lb ft).
Install the rear wheels. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.

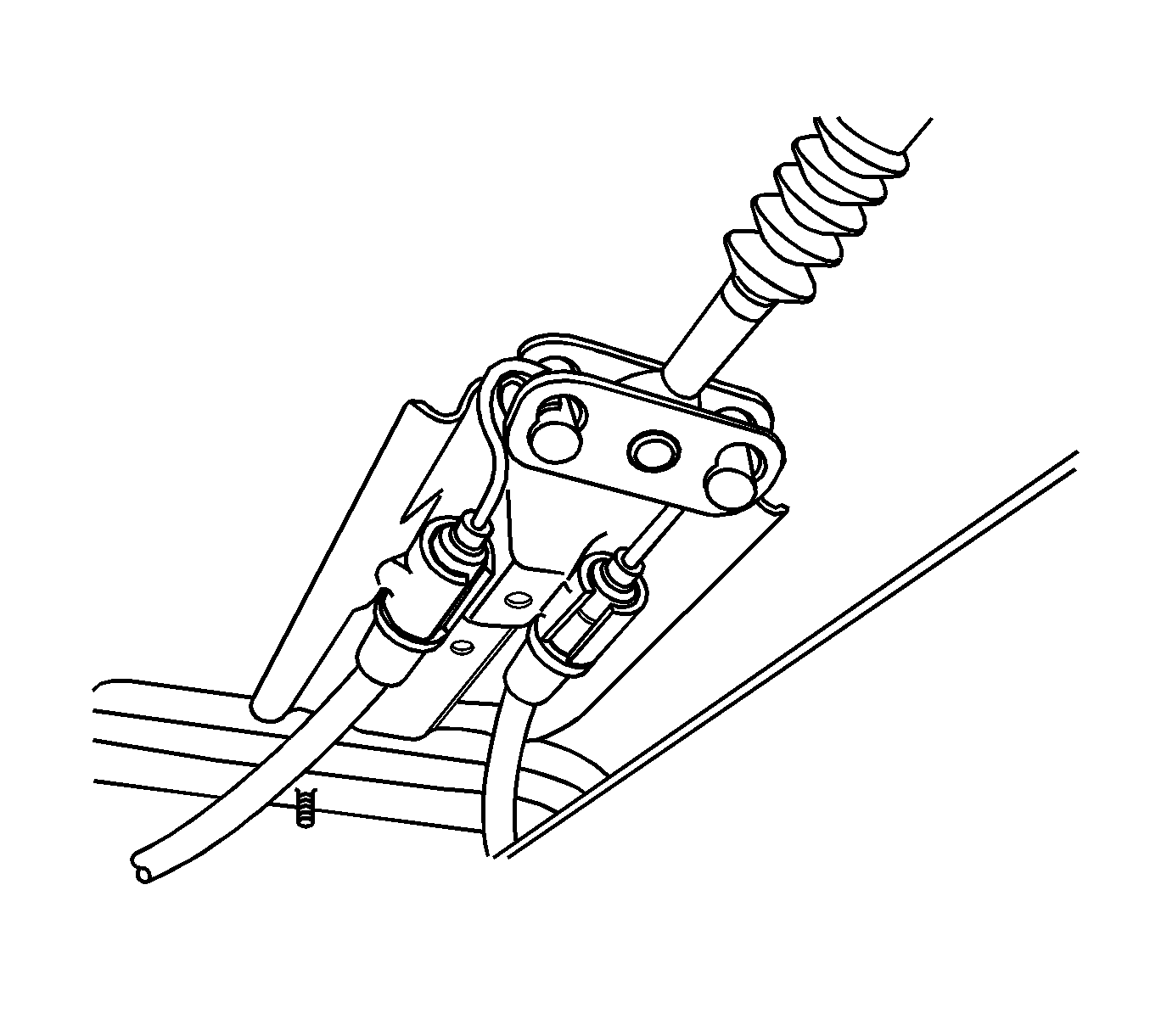

Fig 3: View of Parking Brake Cables On Welded Body Bracket

Courtesy of GENERAL MOTORS CORP.

Install the parking brake cable to the underbody side brackets on each side of the vehicle, and a bracket near the underbody side bracket.
Tighten: Tighten the parking brake cable-to-underbody side and near side bracket bolts to 12 N.m (106 lb in).

Fig 4: View of Parking Brake Cable

Courtesy of GENERAL MOTORS CORP.

Install the parking cable on the rear axle brackets on each side of the vehicle.
Tighten: Tighten the parking brake cable-to-rear axle bracket bolt to 12 N.m (106 lb in).

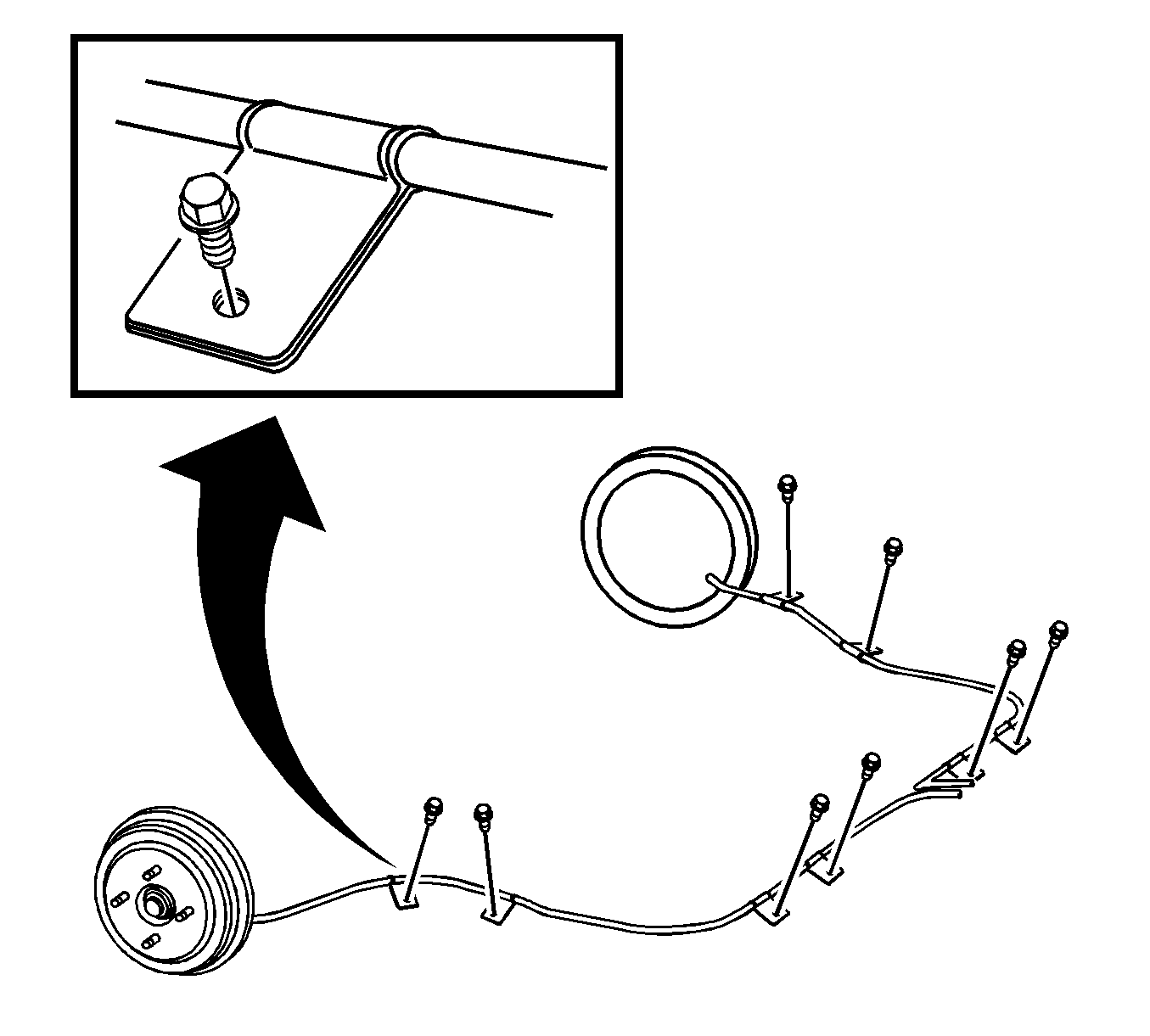

Fig 5: View of Parking Brake Cables On Welded Body Bracket

Courtesy of GENERAL MOTORS CORP.

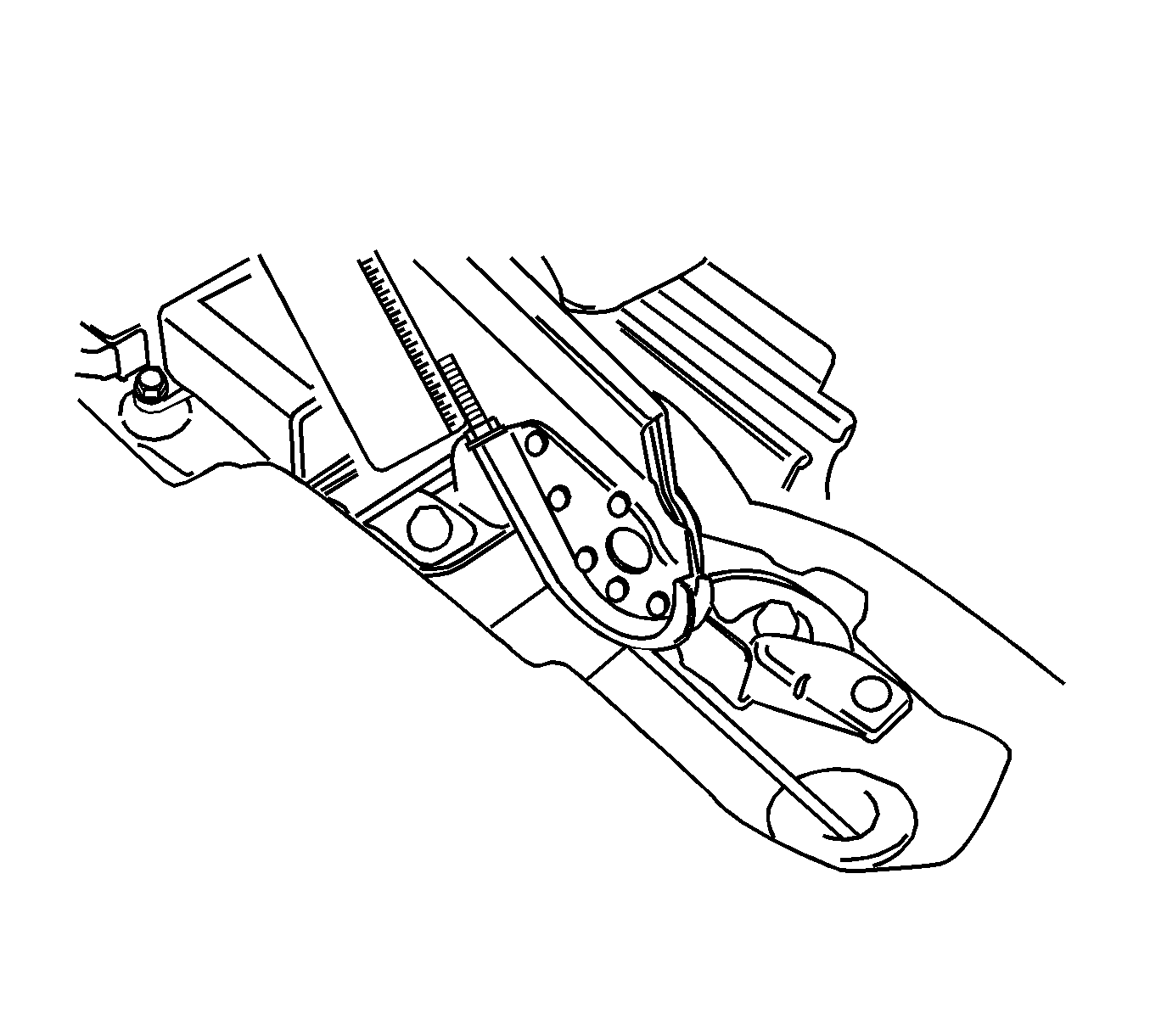

Fig 6: Adjusting Length of Parking Brake Cable

Courtesy of GENERAL MOTORS CORP.
