Removal Procedure

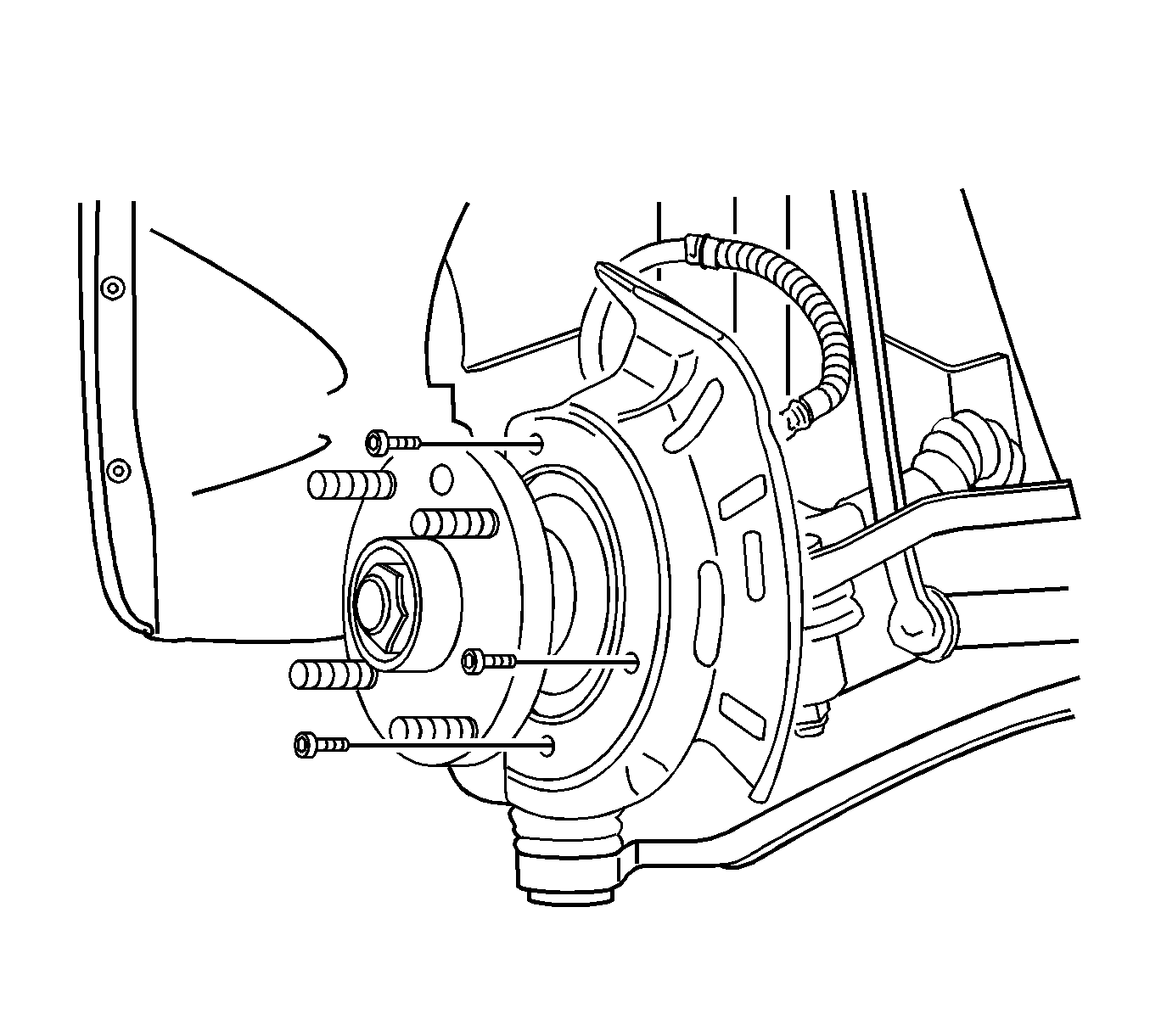

    Fig 1: View of Rotor Splash Shield
    GM1245702Courtesy of GENERAL MOTORS CORP.
  1. Remove the rotor. Refer to Brake Rotor Replacement .
  2. Remove the screws for the splash shield from the steering knuckle.
  3. Remove the splash shield.
