ABS Description and Operation: Notes

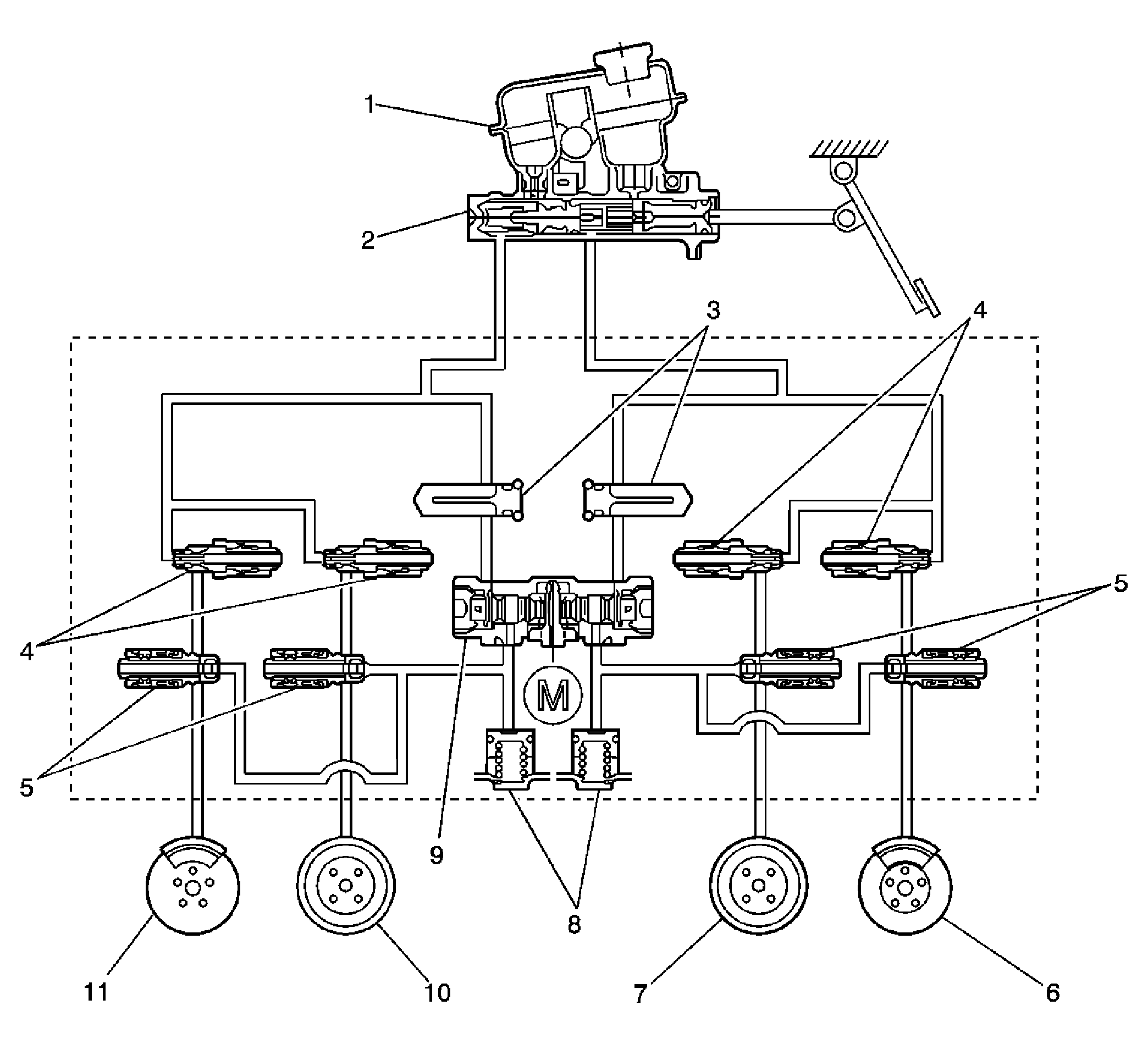

| Callout | Component Name |
|---|---|
| 1 | Reservoir |
| 2 | Master Cylinder |
| 3 | Inlet Valve |
| 4 | Outlet Valve |
| 5 | Damper |
| 6 | Pump |
| 7 | Left Front |
| 8 | Right Rear |
| 9 | Left Rear |
| 10 | Accumulator |
| 11 | Right Front |
The purpose of the MGH-25 antilock brake system (ABS) is to minimize wheel slip during heavy braking. MGH-25 performs this function by monitoring the speed of each wheel and controlling the brake fluid pressure to each wheel independently during a braking event. This allows the driver to retain directional stability and better steering capability.
