Installation Procedure

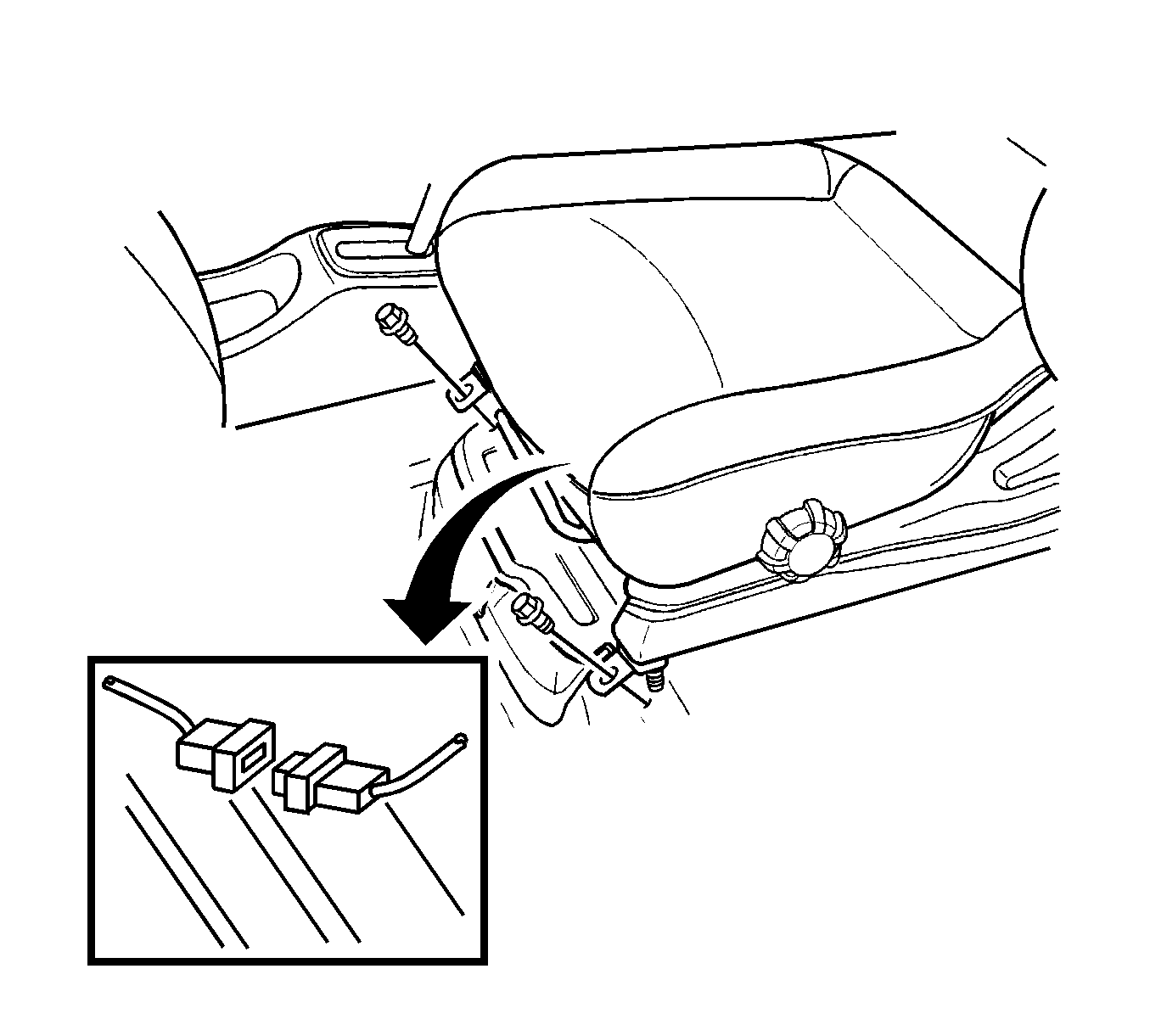

    Fig 1: View of Front Seat and Electrical Connector
    GM1248229Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector to the driver's seat.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the bolts into the front and rear portion of the front seat.

    Tighten:  Tighten the front and rear bucket seat bolts to 25 N.m (18 lb ft).
