Installation Procedure

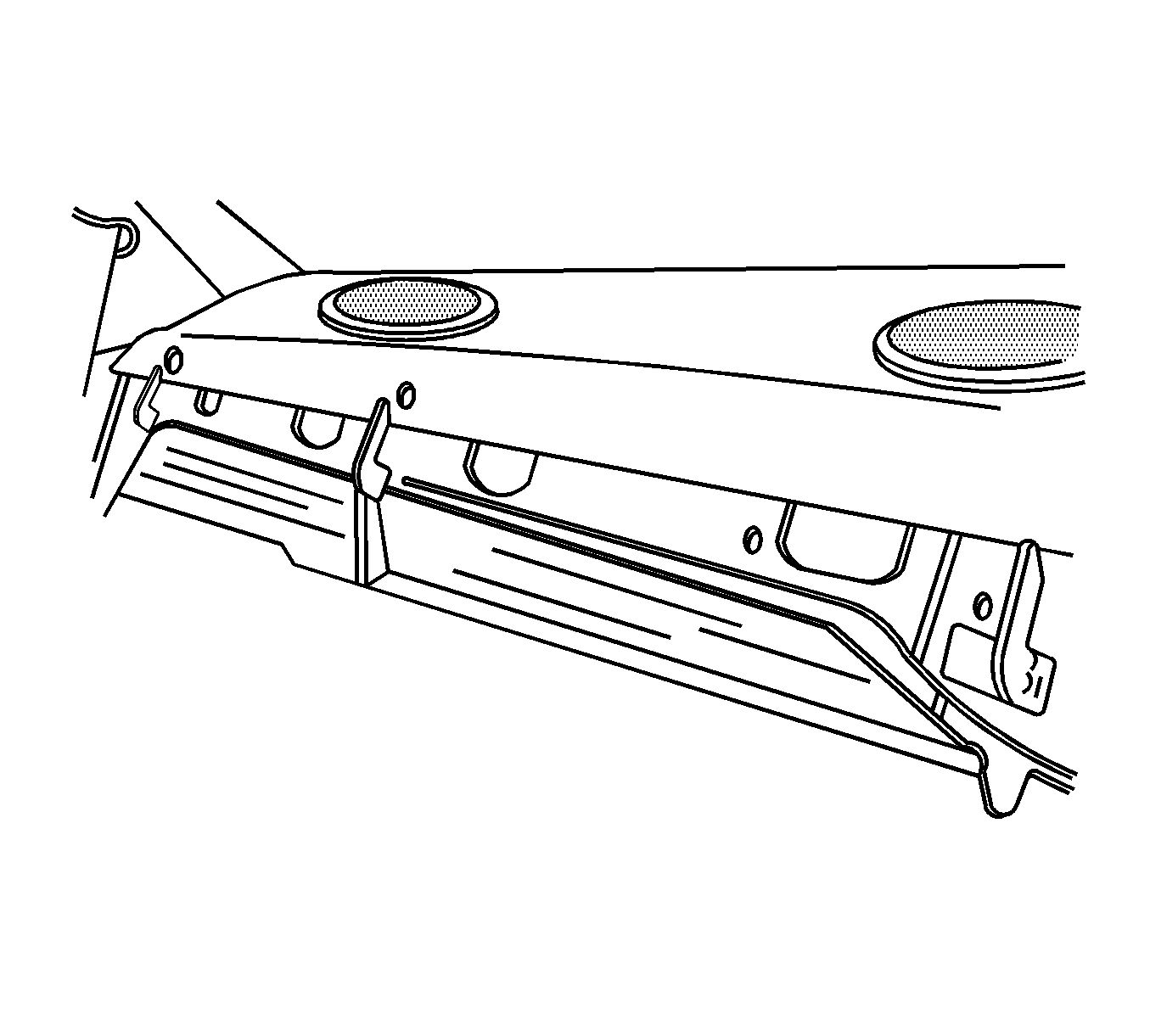

    Fig 1: View of Rear Seat Back with Metal Loops over Hooks
    GM1248243Courtesy of GENERAL MOTORS CORP.
  1. Insert the rear seat back by inserting the metal loops over the hooks.

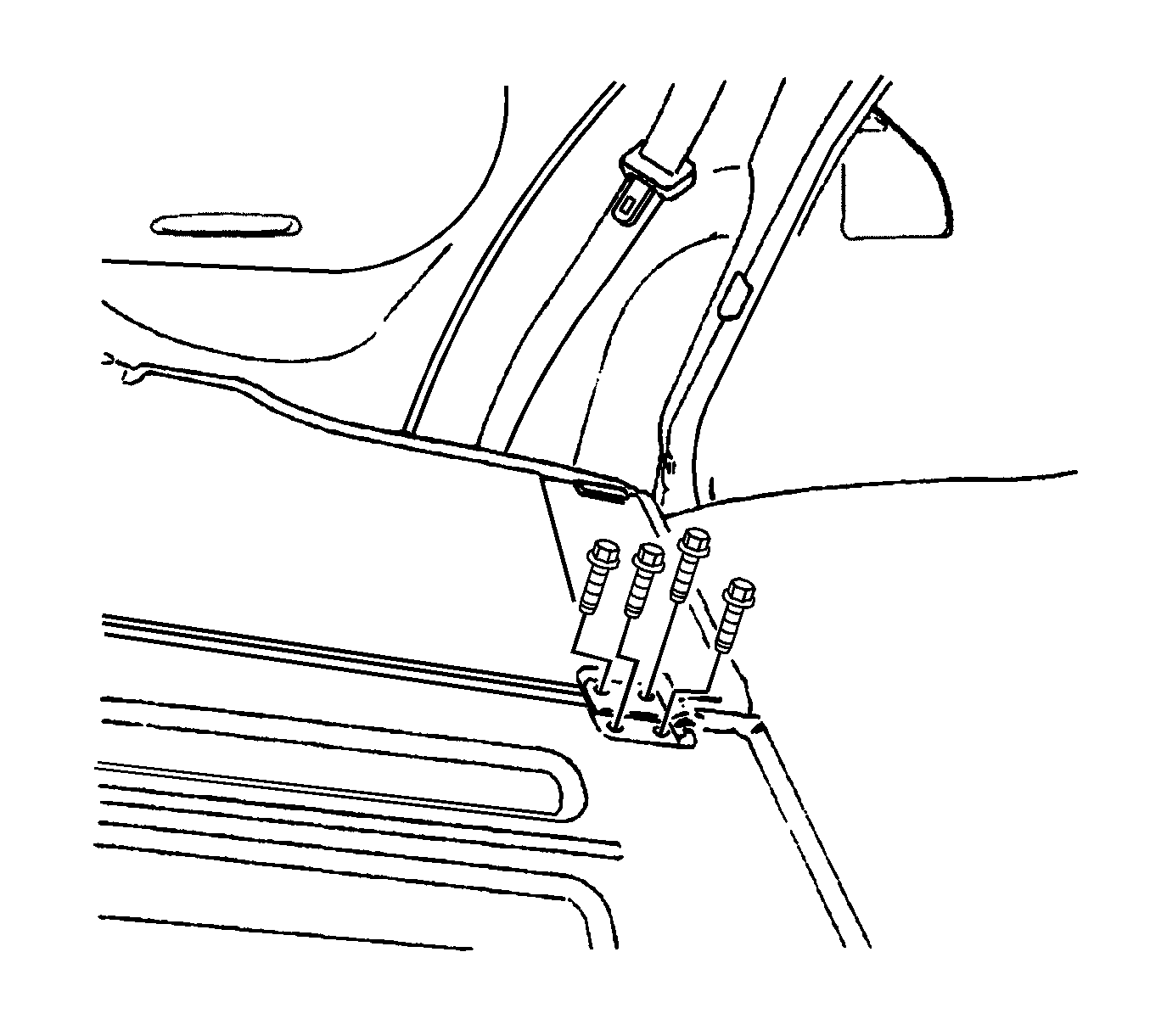

    2. Fig 2: View of Rear Seat Back and Bolts
    GM1248242Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the rear seat back with the bolts.

    Tighten:  Tighten the rear seat back bolt to 25 N.m (18 lb ft).

  3. Install the rear seat cushion. Refer to Seat Cushion Replacement - Rear .
