Door Lock/Indicator Schematics

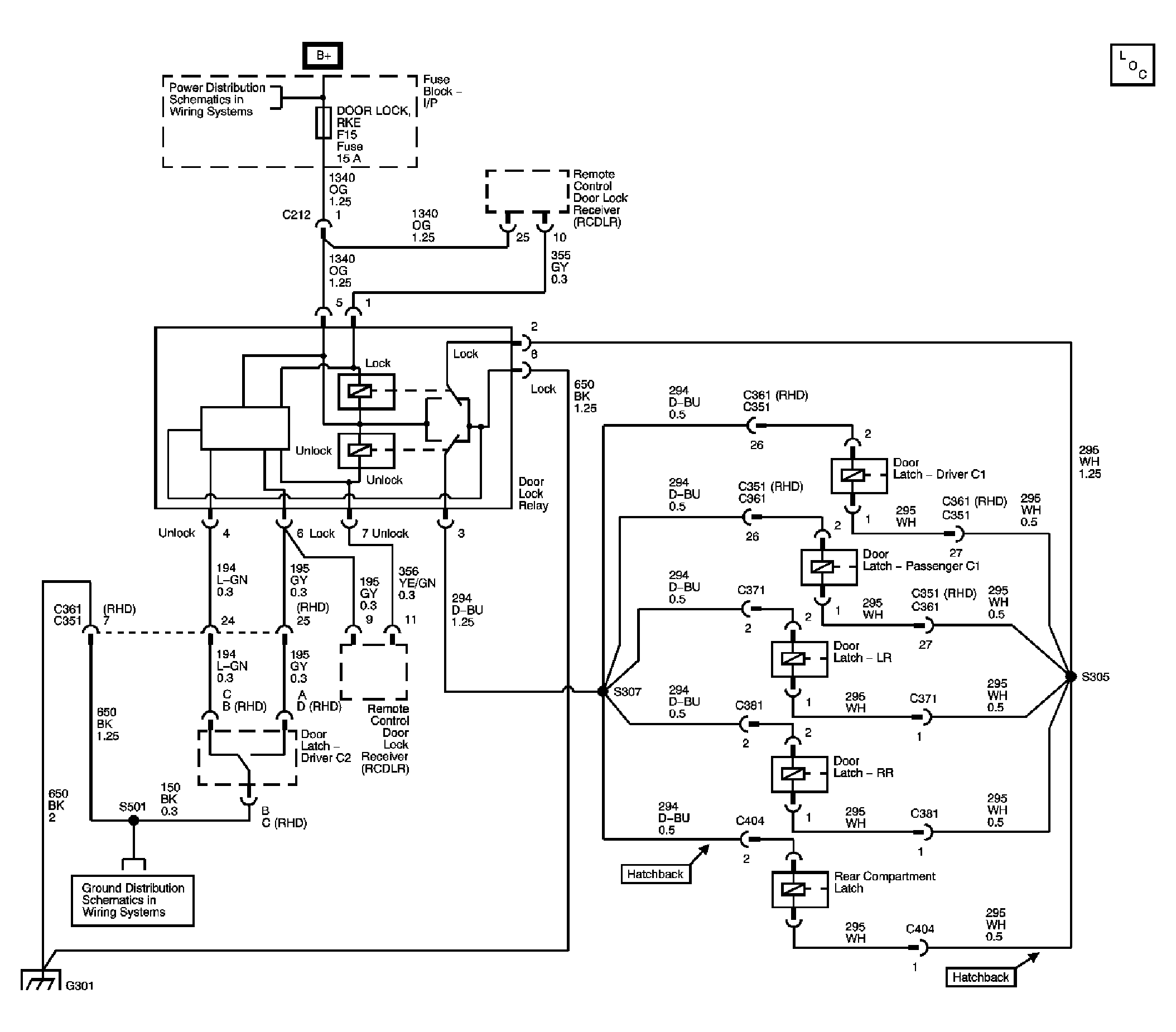

Fig 1: Door Lock/Indicator
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
