Rear Frame (Hatch Back)

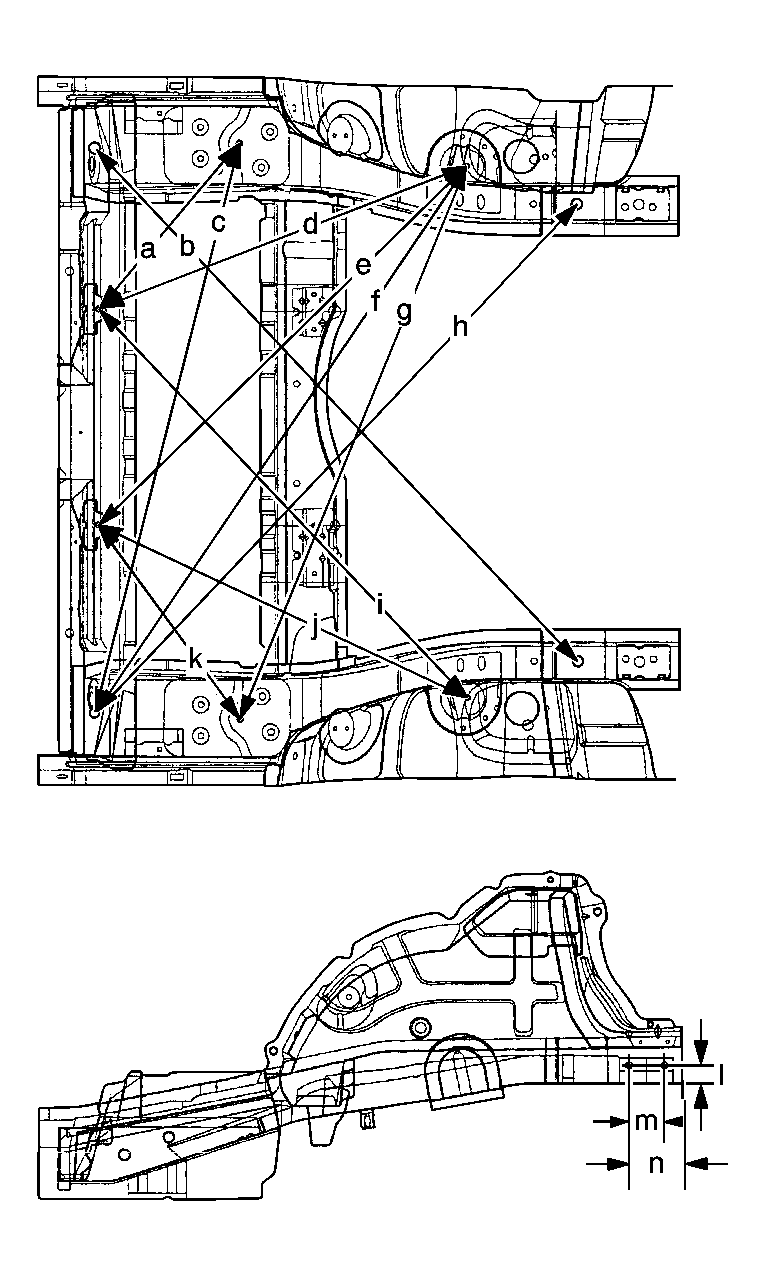

Fig 1: Dimensions of Rear Frame (Hatch Back)

Courtesy of GENERAL MOTORS CORP.

Dimensions - Rear Frame (Hatch Back)

Points	Dimensions (mm)	Dimensions (in)
IMPORTANT: Reference dimensions show the distance between the center of positioning holes shown in illustrations.
A	1,447	56.97
B	419.6	16.50
C	1,172.6	46.14
D	743	29.25
E	991.4	39.02
F	1,303	51.30
G	1,184	46.61
H	1,455	57.28
I	1,036.1	40.79
J	768.4	30.24
K	468.7	18.43
L	35	1.38
M	66.6	2.60
N	100	3.94
