Installation Procedure

    Fig 1: View of Instrumental Panel and End Screws
    GM1248461Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the instrument panel assembly with the bolts and screws.

    Tighten:  Tighten the instrument panel bolts to 20 N.m (15 lb ft).

  2. Connect ALDL connector with the screws.
  3. Install the passenger's air bag module to the instrument panel. Refer to Inflatable Restraint Instrument Panel Module Replacement in SIR.
  4. Install glove box assembly from the instrument panel. Refer to Storage Compartment Replacement - Instrument Panel (I/P) .

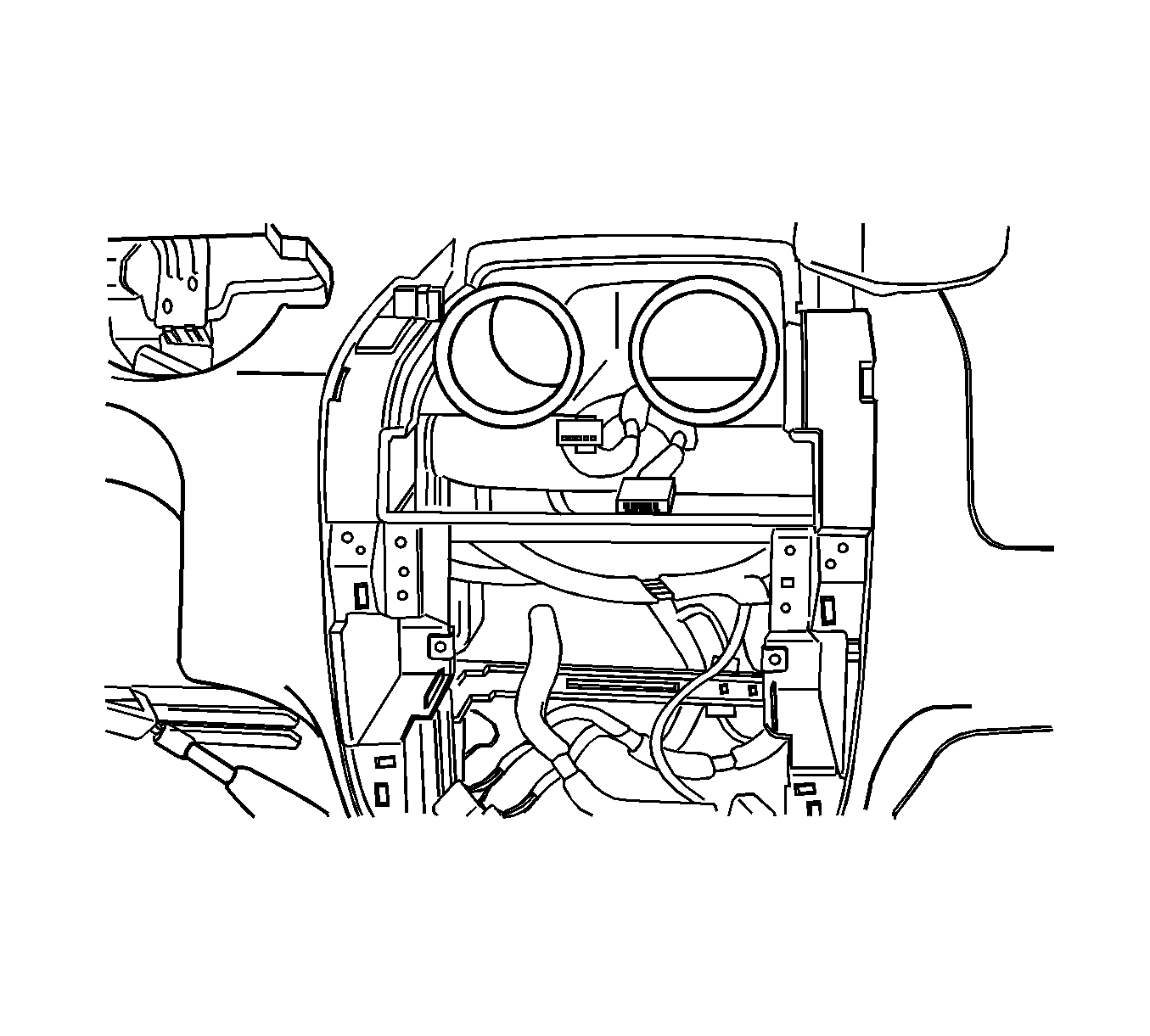

    5. Fig 2: View of Instrument Panel For Audio System and A/C Controller
    GM1248457Courtesy of GENERAL MOTORS CORP.
  5. Install the digital clock.
  6. Install the audio system from the instrument panel. Refer to Radio Replacement in Entertainment.
  7. Install the A/C controller from the instrument. Refer to HVAC Control Assembly Replacement in HVAC Systems - Manual.

    Tighten:  Tighten the instrument panel bolts behind the HVAC controls to 4 N.m (35 lb in).

  8. Install the cupholder.
  9. Install the cigar lighter and ashtray.
    10. Fig 3: View Of Steering Wheel Column (European and Non-European)
    GM1543924Courtesy of GENERAL MOTORS CORP.
  10. Install the instrument panel center upper, lower cover.
  11. Install the instrument panel lower cover.
  12. Install the side cover.
  13. Install the instrument cluster assembly. Refer to Instrument Panel Cluster (IPC) Replacement .
  14. Install the windshield pillar garnish molding. Refer to Garnish Molding Replacement - Windshield Pillar in Interior Trim.
  15. Install the signal lamp switch and the wiper switch. Refer to Multifunction, Turn Signal Switch Replacement in Steering Wheel and Column for signal, and refer to Wipers/Washer Switch Replacement in Wiper/Washer.
  16. Install the steering column trim cover. Refer to Steering Column Replacement in Steering Wheel and Column.
  17. Install the steering wheel to the steering column. Refer to Steering Wheel Replacement in Steering Wheel and Column.
  18. Install the driver's air bag module from the steering wheel, if equipped. Refer to Inflatable Restraint Steering Wheel Module Replacement in SIR.
  19. Connect the negative battery cable.
