Installation Procedure

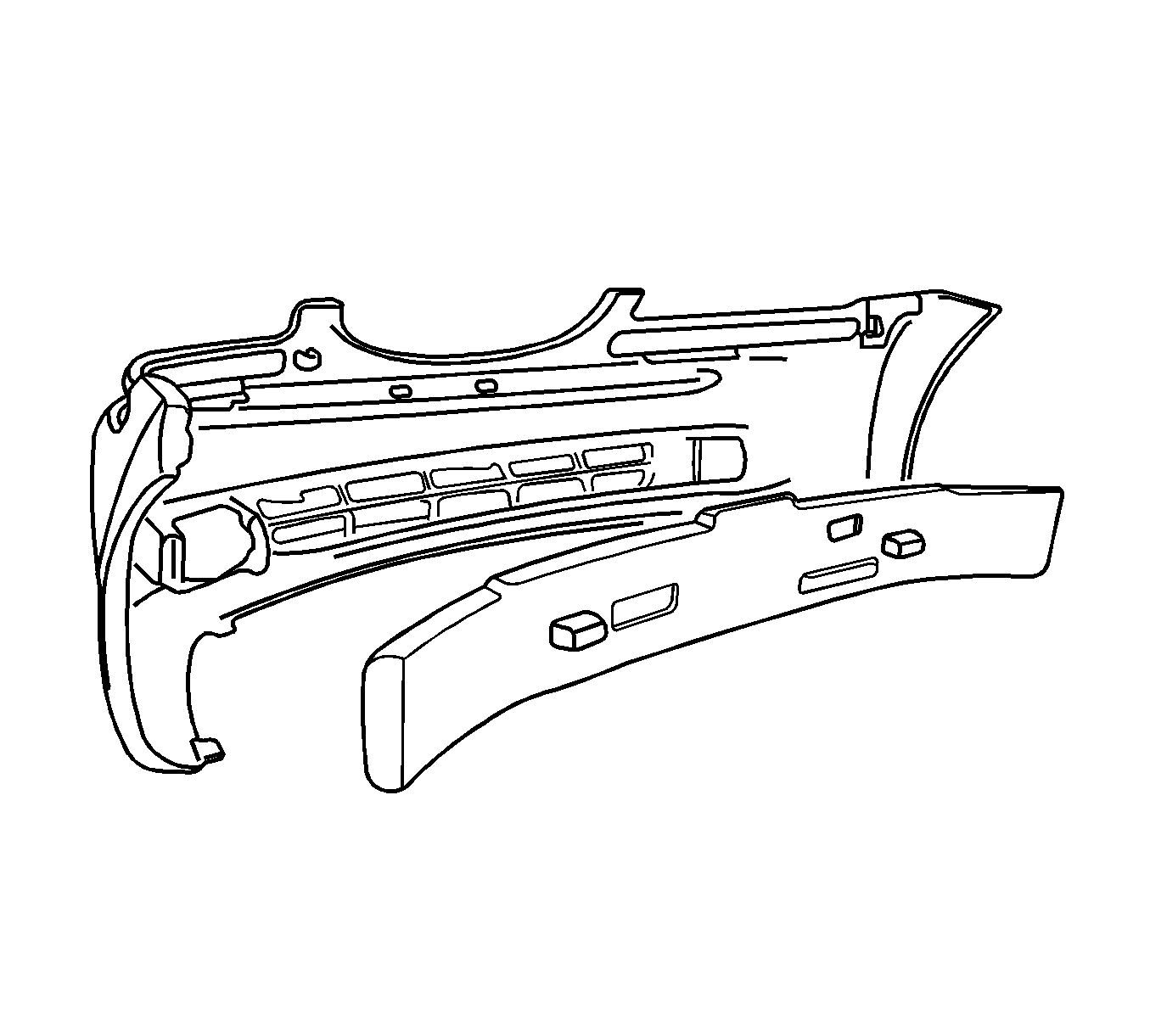

    Fig 1: View of Front Bumper Energy Absorber
    GM1376150Courtesy of GENERAL MOTORS CORP.
  1. Install the front bumper energy absorber.
  2. Install the front bumper fascia. Refer to Fascia Replacement - Front Bumper .
