Removal Procedure

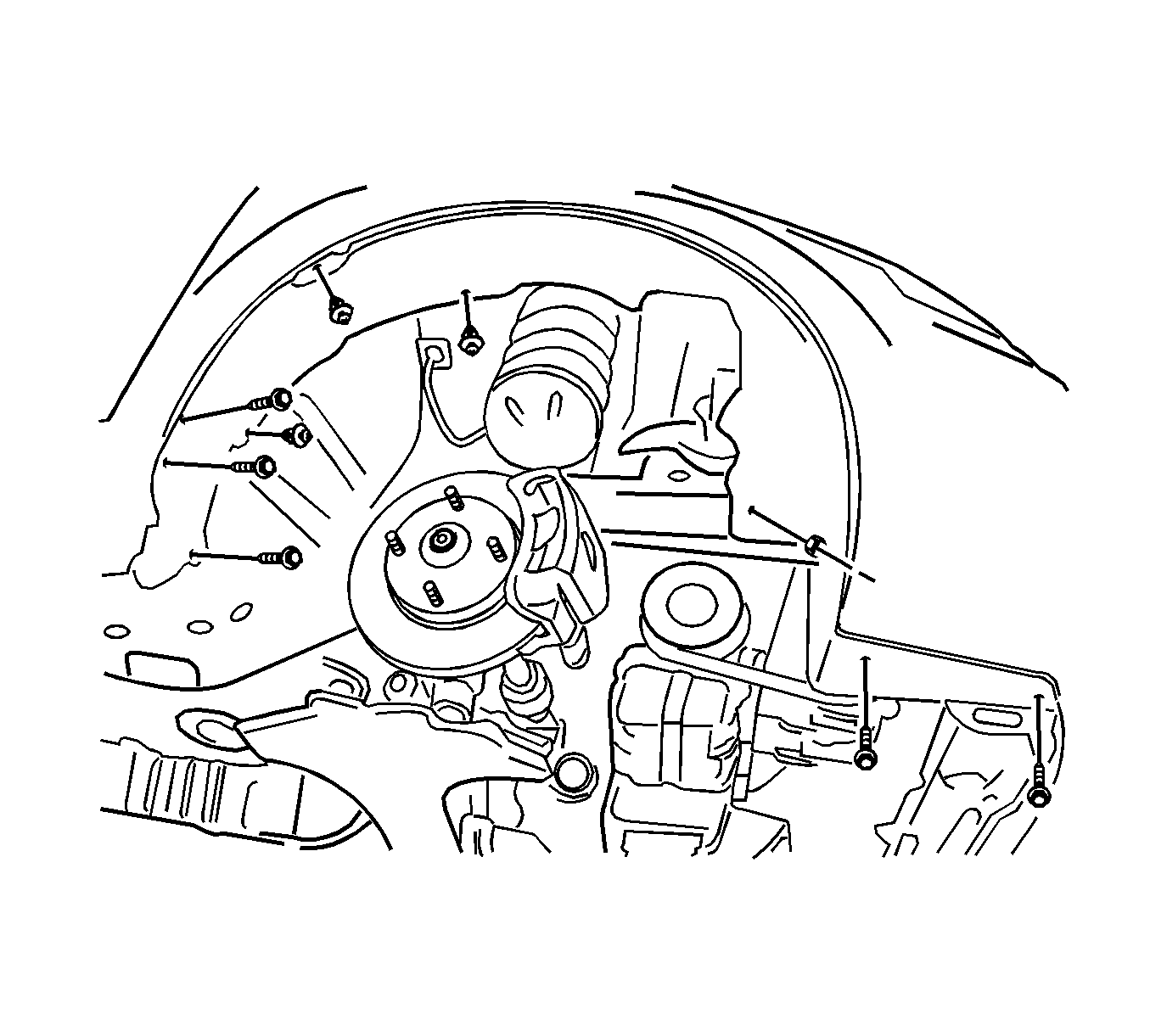

    Fig 1: View of Screws and Splash Shield
    GM1252066Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Vehicle Lifting and Jacking Notice in Cautions and Notices.
  1. Raise and suitably support the vehicle.
  2. Remove the front wheel. Refer to Tire and Wheel Removal and Installation
  3. Remove the bolts and the splash shield.
    4. Fig 2: View of Screws Underneath Front Bumper Fascia
    GM1252071Courtesy of GENERAL MOTORS CORP.
  4. Remove the screws underneath the front bumper fascia.
    5. Fig 3: View of Bolts At Fender Base
    GM1252072Courtesy of GENERAL MOTORS CORP.
  5. Remove the screw securing the front bumper fascia to the fender.
  6. Remove the bolts at the base of the fender.
    7. Fig 4: View of Bolt At Windshield Pillar Base
    GM1252074Courtesy of GENERAL MOTORS CORP.
  7. Open the front door. Remove the bolt at the base of the Windshield Pillar.

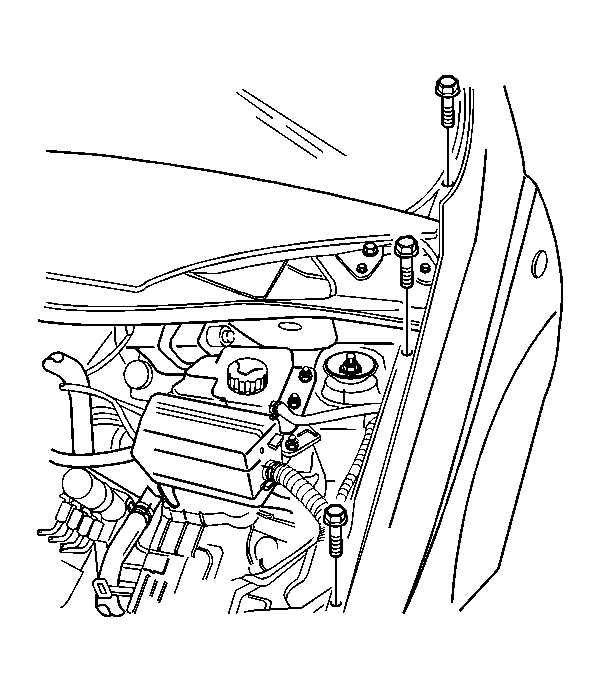

    8. Fig 5: View of Fender and Bolts
    GM1252075Courtesy of GENERAL MOTORS CORP.
  8. Open the hood.
  9. Remove the headlamp. Refer to Headlamp Replacement
  10. Remove the bolts along the top of the fender.
  11. Remove the fender.
