Removal Procedure

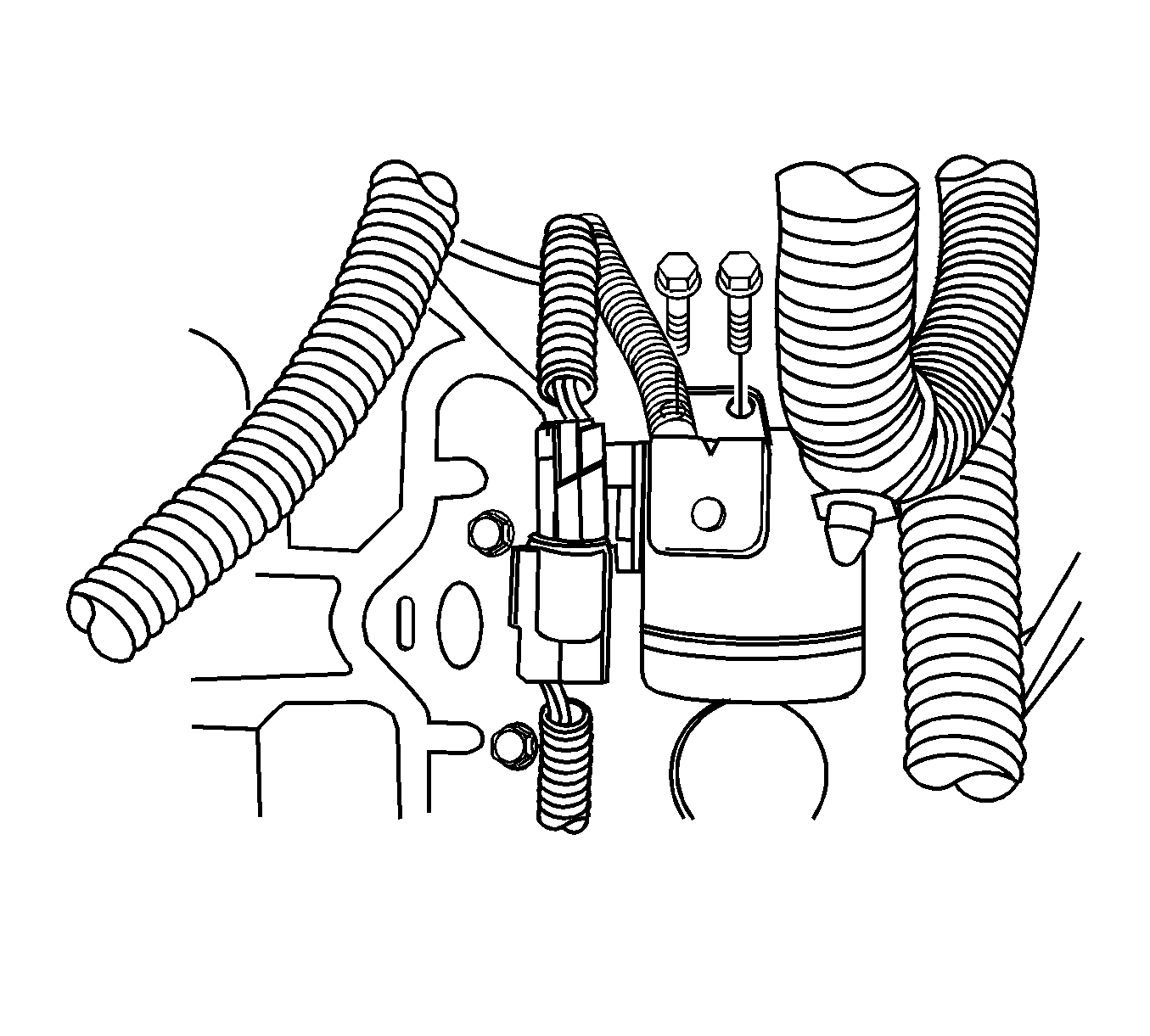

    Fig 1: View of Theft Deterrent Alarm, Mounting Bolts, and Electrical Connector
    GM1252098Courtesy of GENERAL MOTORS CORP.
  1. Remove the theft deterrent alarm electrical connector.
  2. Remove the theft deterrent alarm bracket mounting bolts and the theft deterrent alarm.
