Removal Procedure

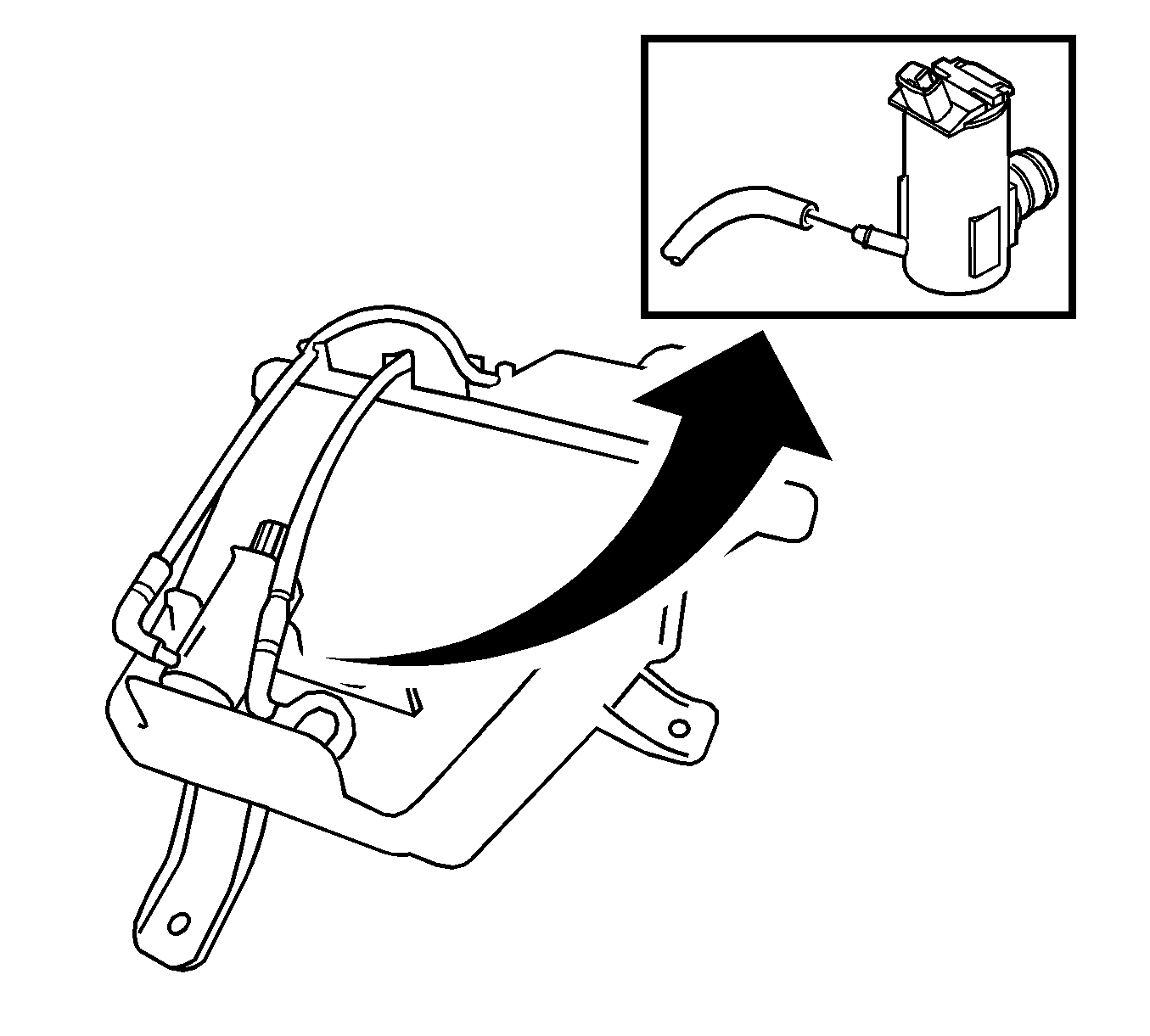

    Fig 1: View of Washer Pump
    GM1248439Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.
  1. Disconnect the negative battery cable.
  2. Remove the left front left wheel. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
  3. Remove the screws and the front wheel well splash shield.
  4. Disconnect the electrical connector.
  5. Disconnect the washer hose.
  6. Remove the washer pump.
