Removal Procedure

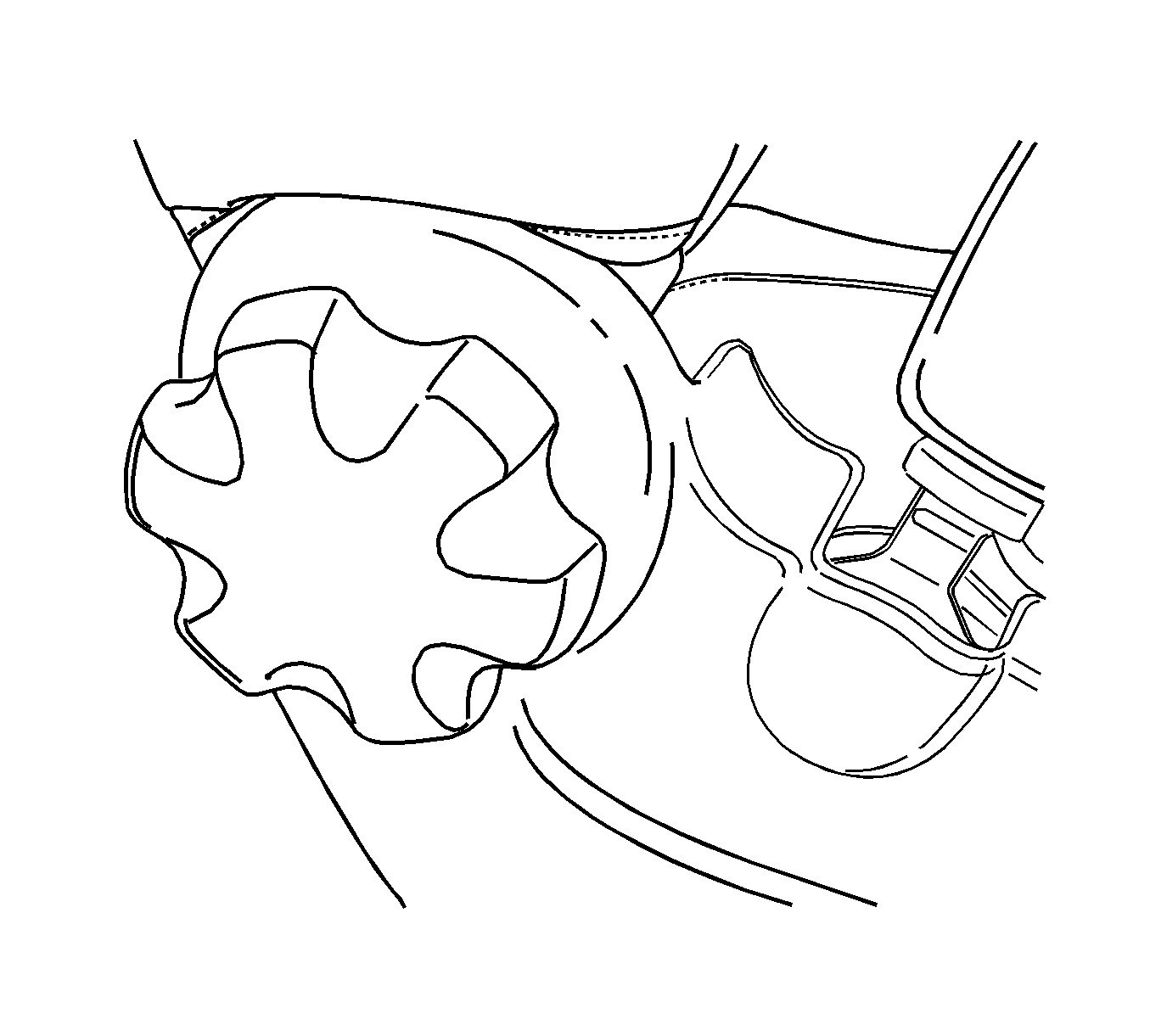

    Fig 1: View of Recliner Adjustment Knob
    GM1248233Courtesy of GENERAL MOTORS CORP.
  1. Remove the front bucket seat from the vehicle. Refer to Seat Replacement - Front Bucket .
  2. Remove the recliner adjustment knob.

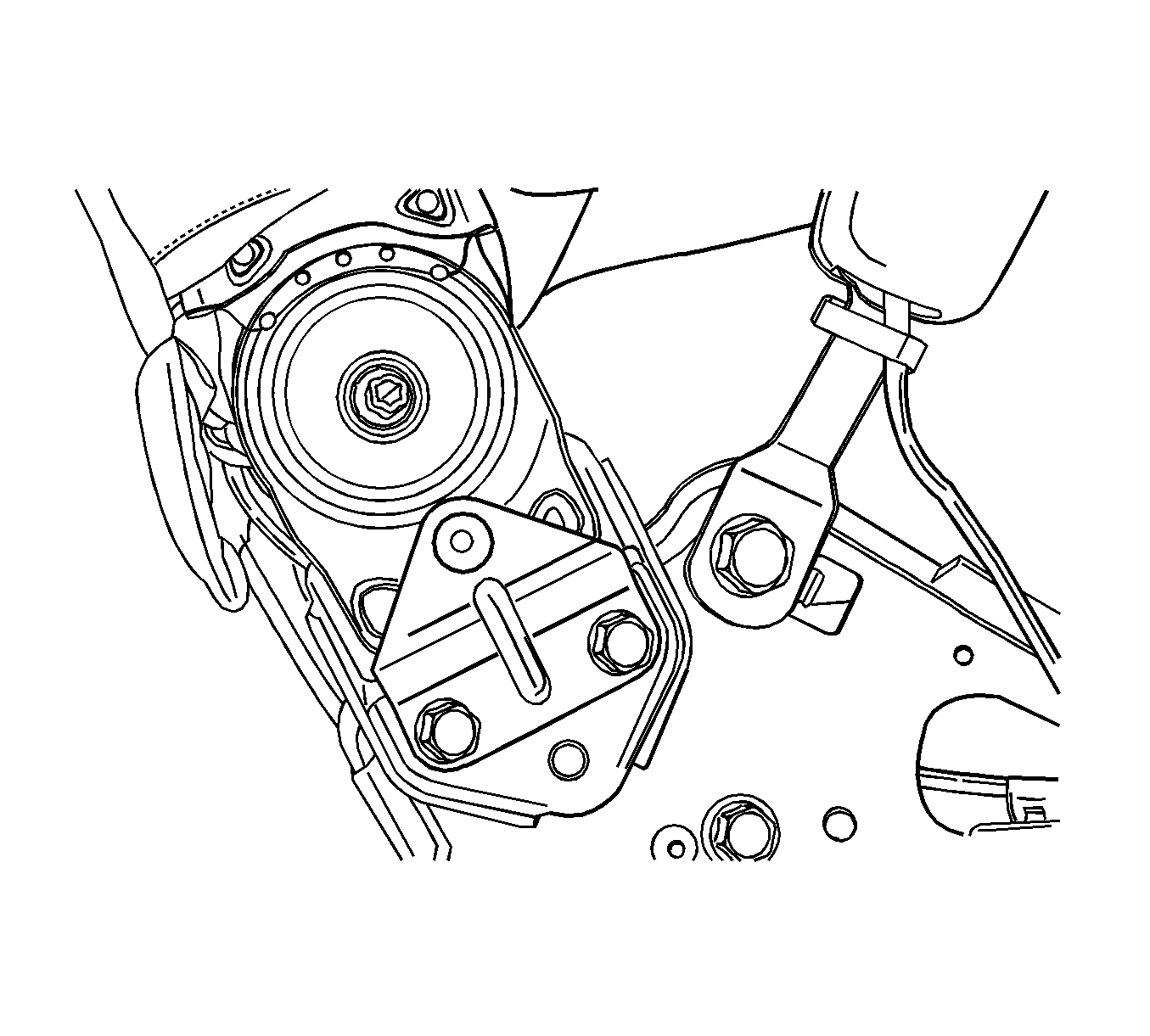

    3. Fig 2: View of Seat Back and Bolts
    GM1248235Courtesy of GENERAL MOTORS CORP.
  3. Remove the recliner cover from the front seat.
  4. Remove the seat back bolts from the seat cushion.
  5. Remove the seat back.
