Radio/Audio System Schematics

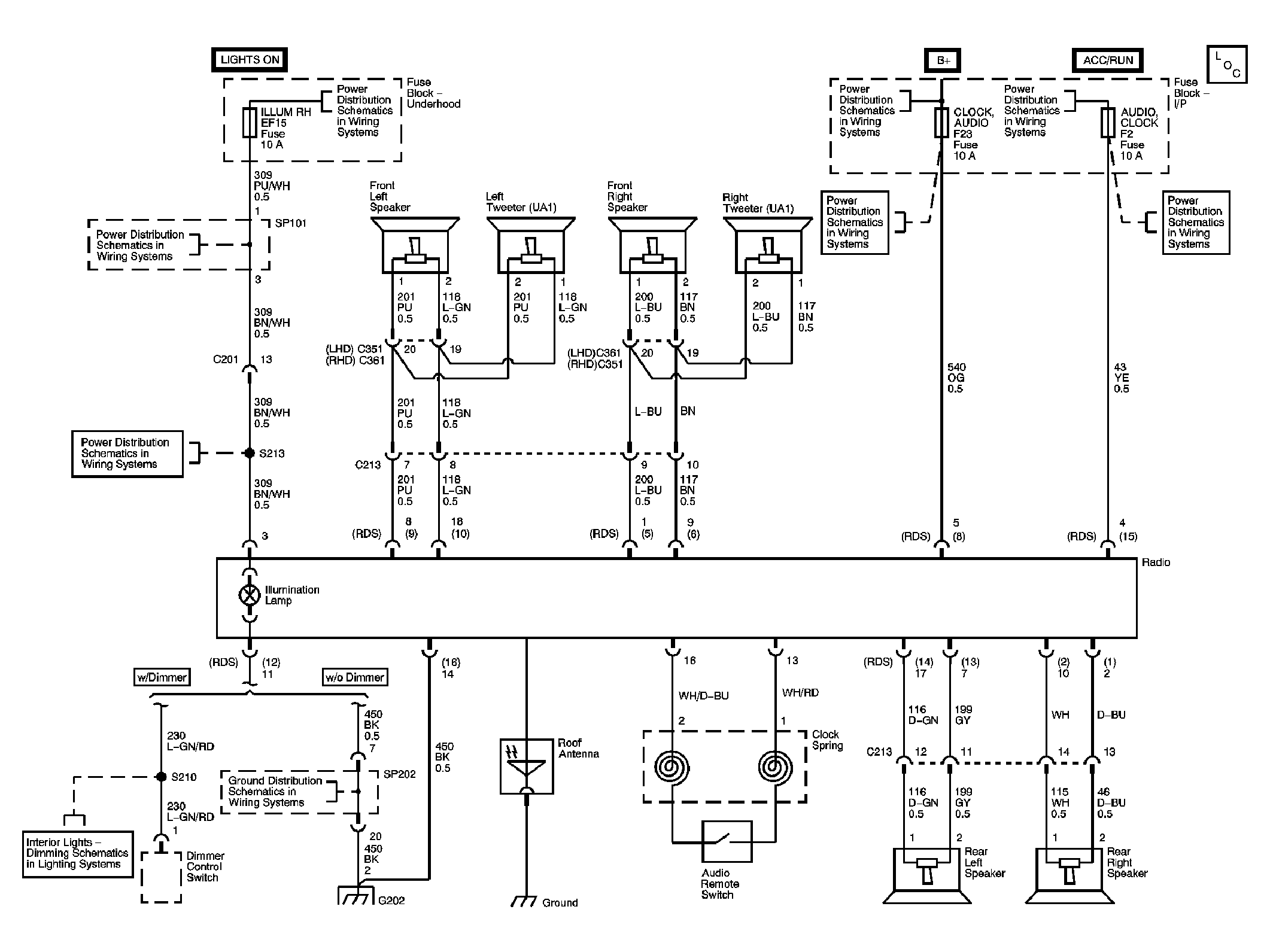

Fig 1: Radio/Audio System
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
