Installation Procedure

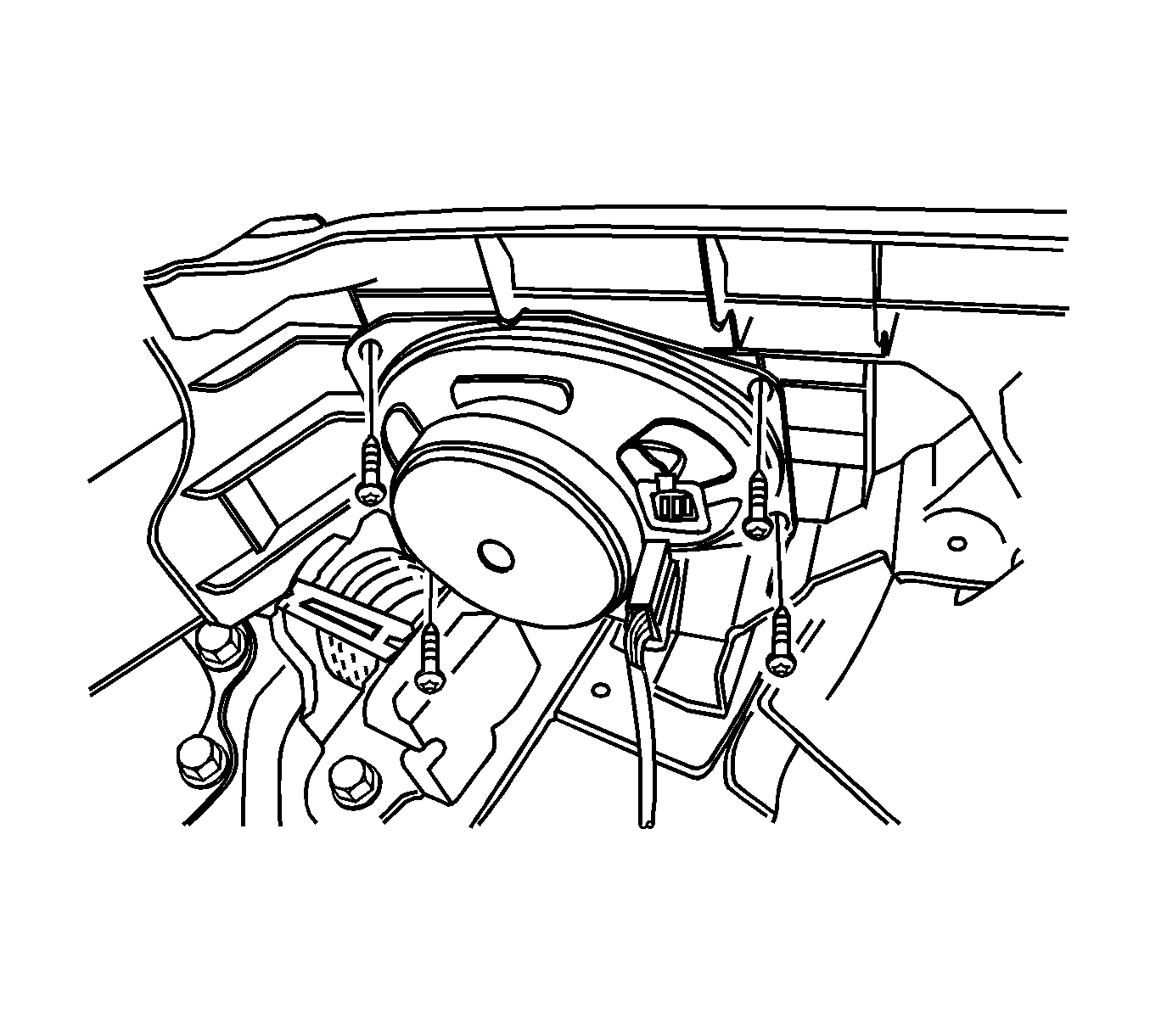

Fig 1: View of Rear Speakers and Screws (Hatchback)

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the rear speaker with the screws.
Tighten: Tighten the rear speaker screws to 3 N.m (27 lb in).
Connect the electrical connector.
Install the rear cargo area trim panel. Refer to Trim Panel Replacement - Cargo Area Rear (Hatchback) in Interior Trim.
Connect the negative battery cable.
