Installation Procedure

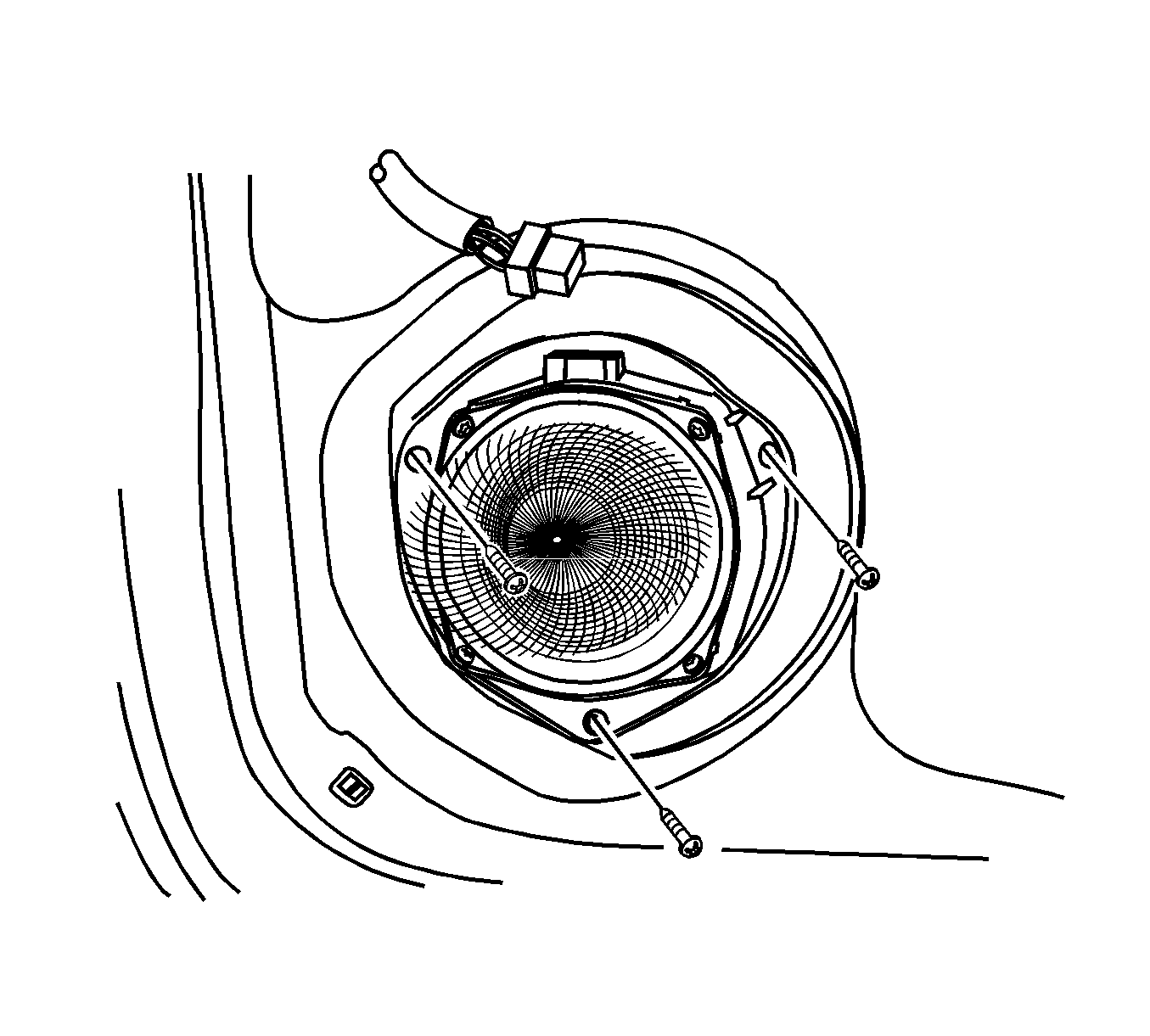

    Fig 1: View of Front Speaker and Screws
    GM1248467Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the front speaker with the screws.

    Tighten:  Tighten the front speaker screws to 3.5 N.m (31 lb in).

  3. Install the front door trim panel. Refer to Trim Panel Replacement - Front Door in Interior Trim.
  4. Connect the negative battery cable.
