Installation Procedure

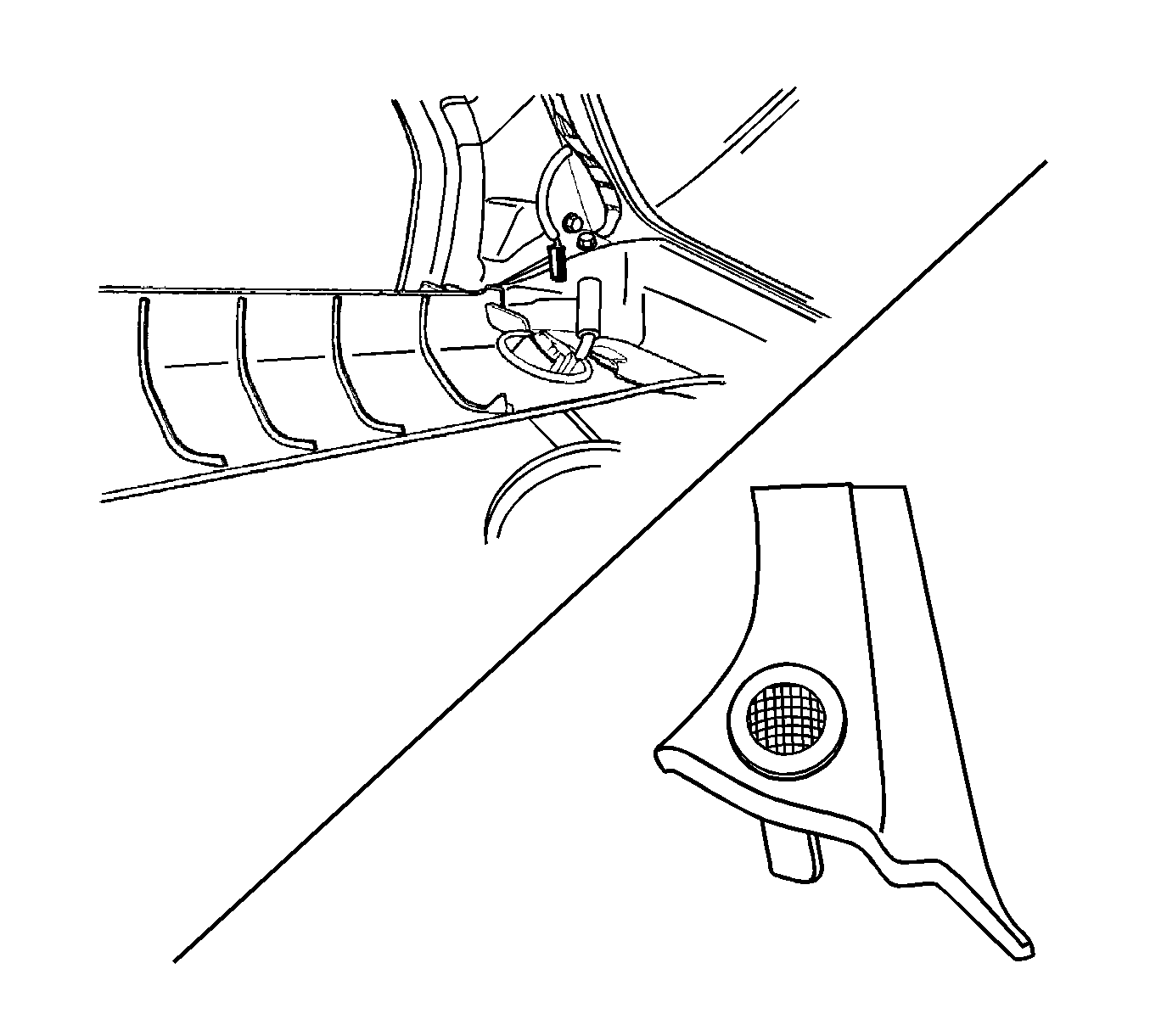

    Fig 1: View of Tweeter
    GM1248472Courtesy of GENERAL MOTORS CORP.
  1. Install the tweeter.
  2. Connect the electrical connector.
  3. Install the windshield pillar garnish molding. Refer to Garnish Molding Replacement - Windshield Pillar in Interior Trim.
  4. Connect the negative battery cable.
