Headlights Schematics

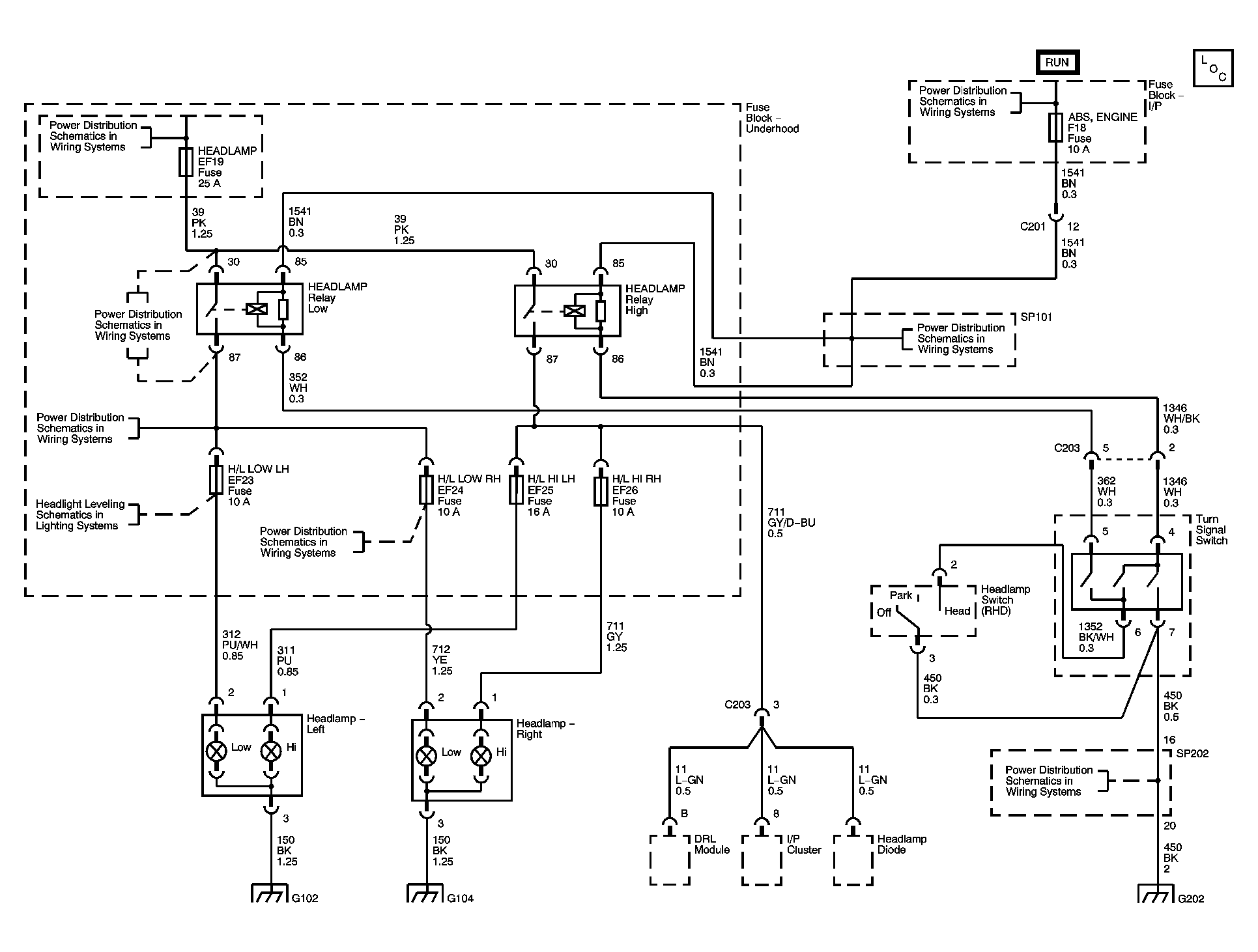

Fig 1: Headlights
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
