Removal Procedure

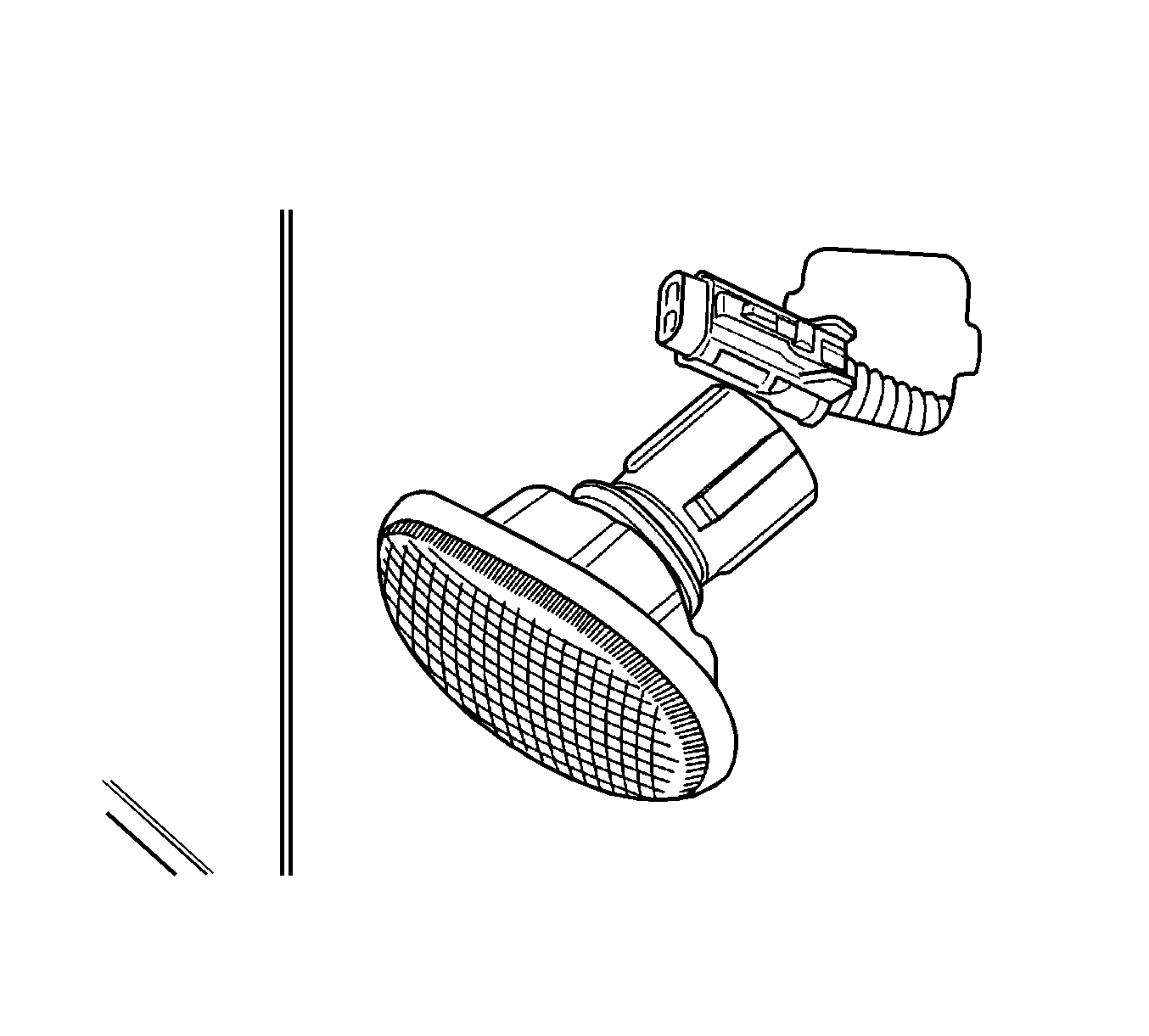

    Fig 1: View of Side Turn Signal Lamp
    GM1248417Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Battery Disconnect Caution .
  1. Disconnect the negative battery cable.
  2. Slide the side turn signal lamp rearward.
  3. Remove the lamp.
  4. Disconnect the electrical connector.
