Replacement Procedure

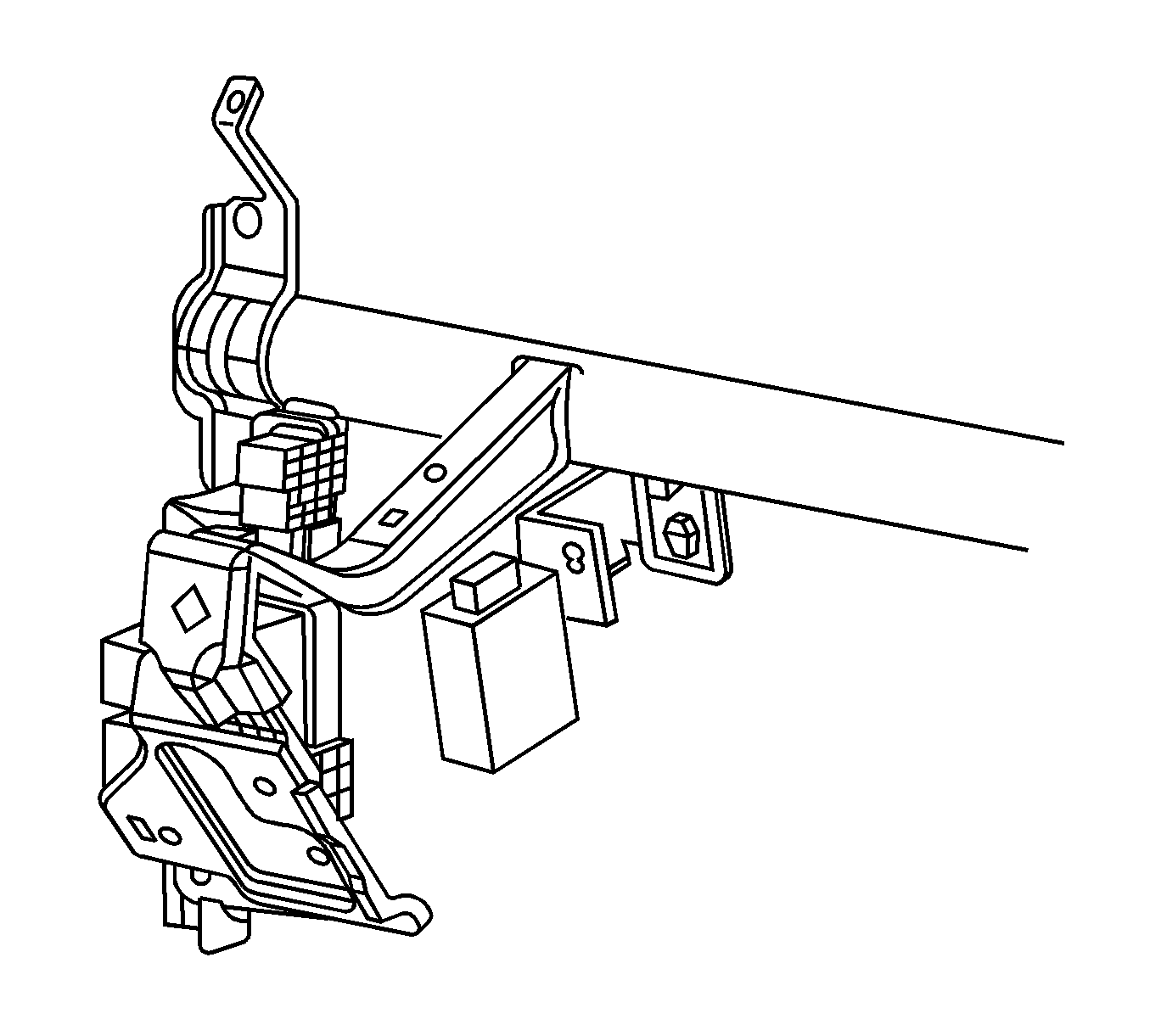

    Fig 1: View of Lamp Control Module
    GM1376092Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.
  1. Disconnect the negative battery cable.
  2. Remove the instrument panel low cover.
  3. Remove the screws and the lamp control module.
  4. Disconnect the electrical connector.
