Removal Procedure

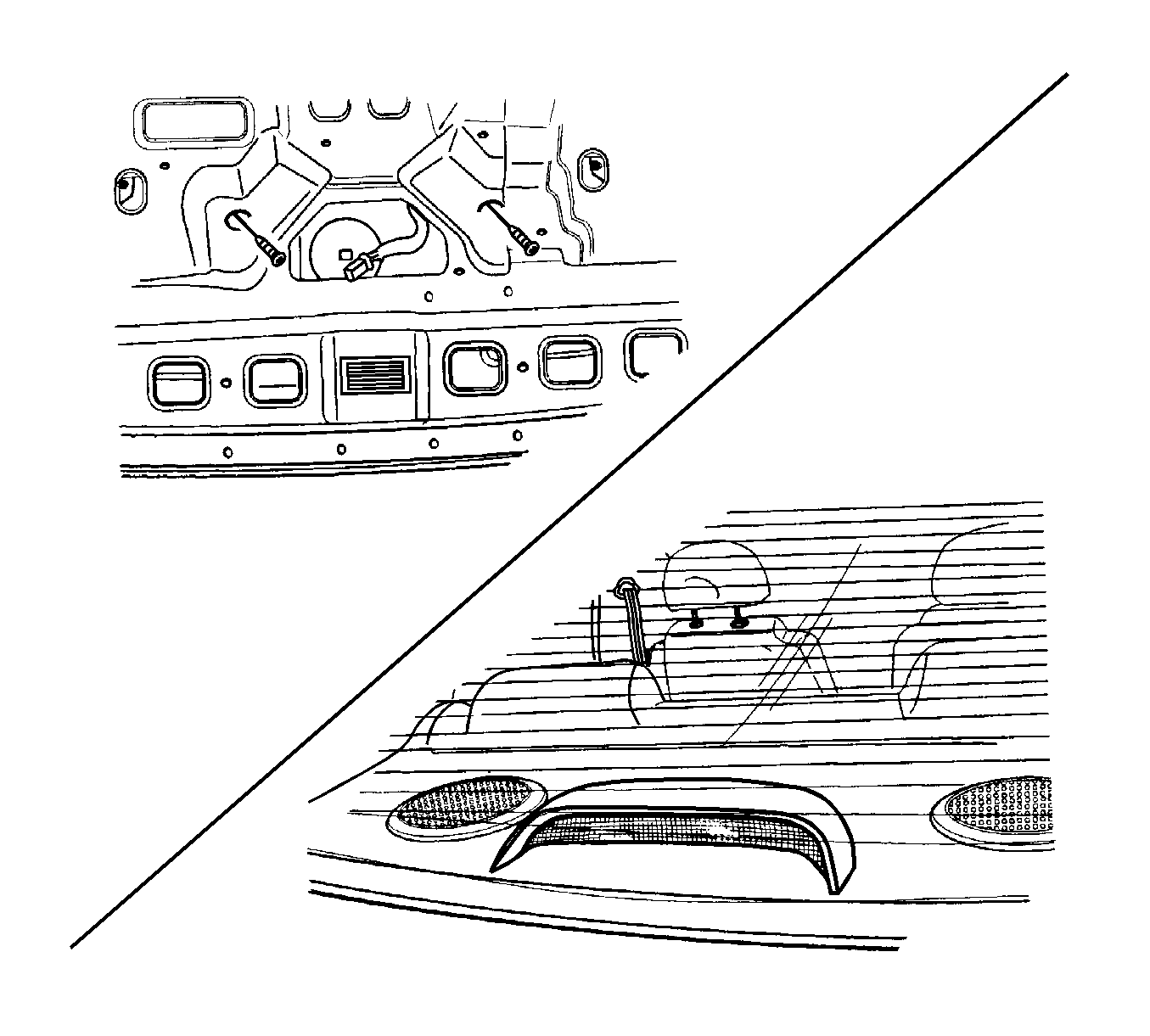

    Fig 1: View of Center High-Mounted Stop Lamp, Screws, and Bulb
    GM1248421Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.
  1. Disconnect the negative battery cable.
  2. Open the rear deck lid.
  3. Remove the screws and the center high-mounted stop lamp (CHMSL).
  4. Remove the CHMSL bulb.
