Data Link Connector (DLC) Wiring Schematics

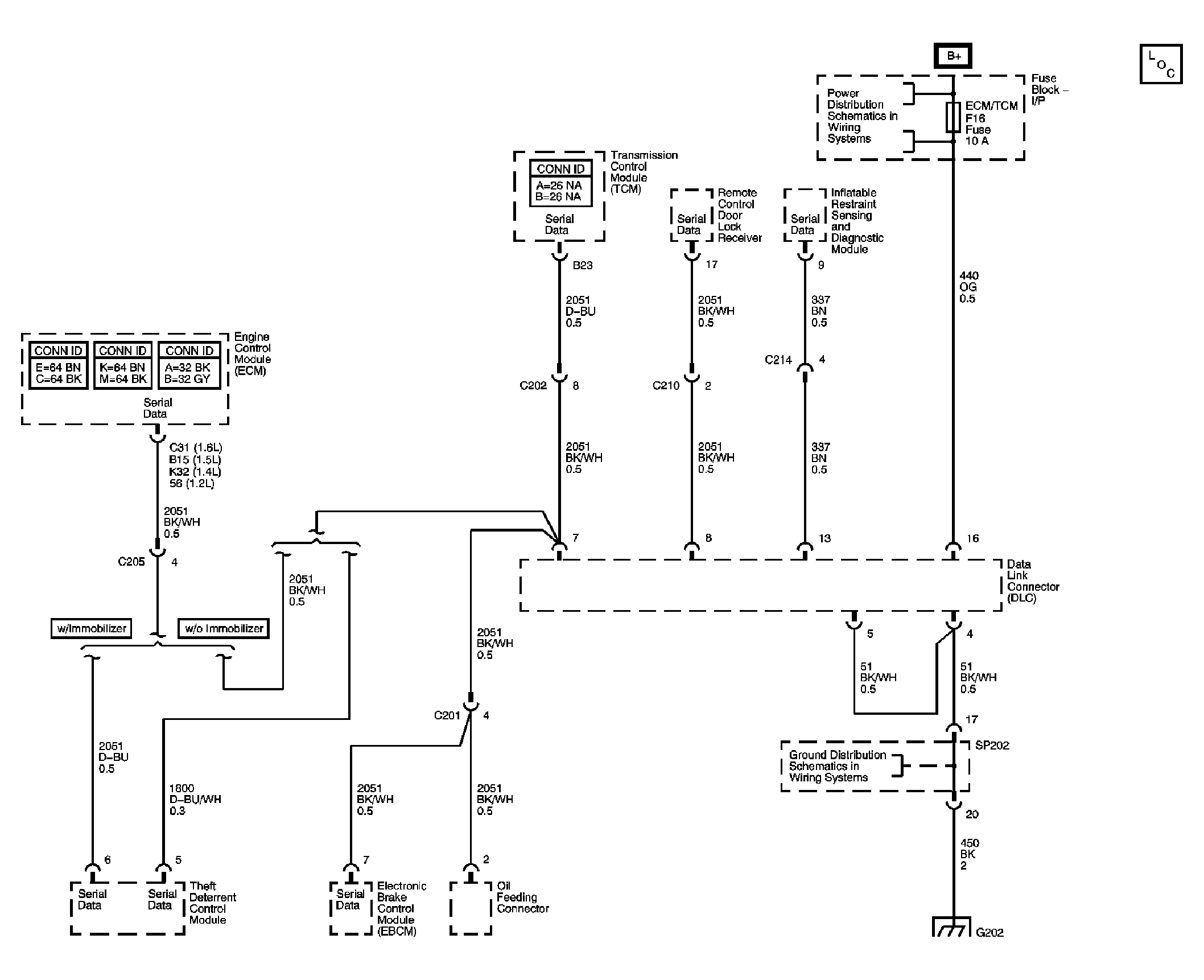

Fig 1: Data Link Connector (DLC) Schematics
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
