Outside Mirror Schematics

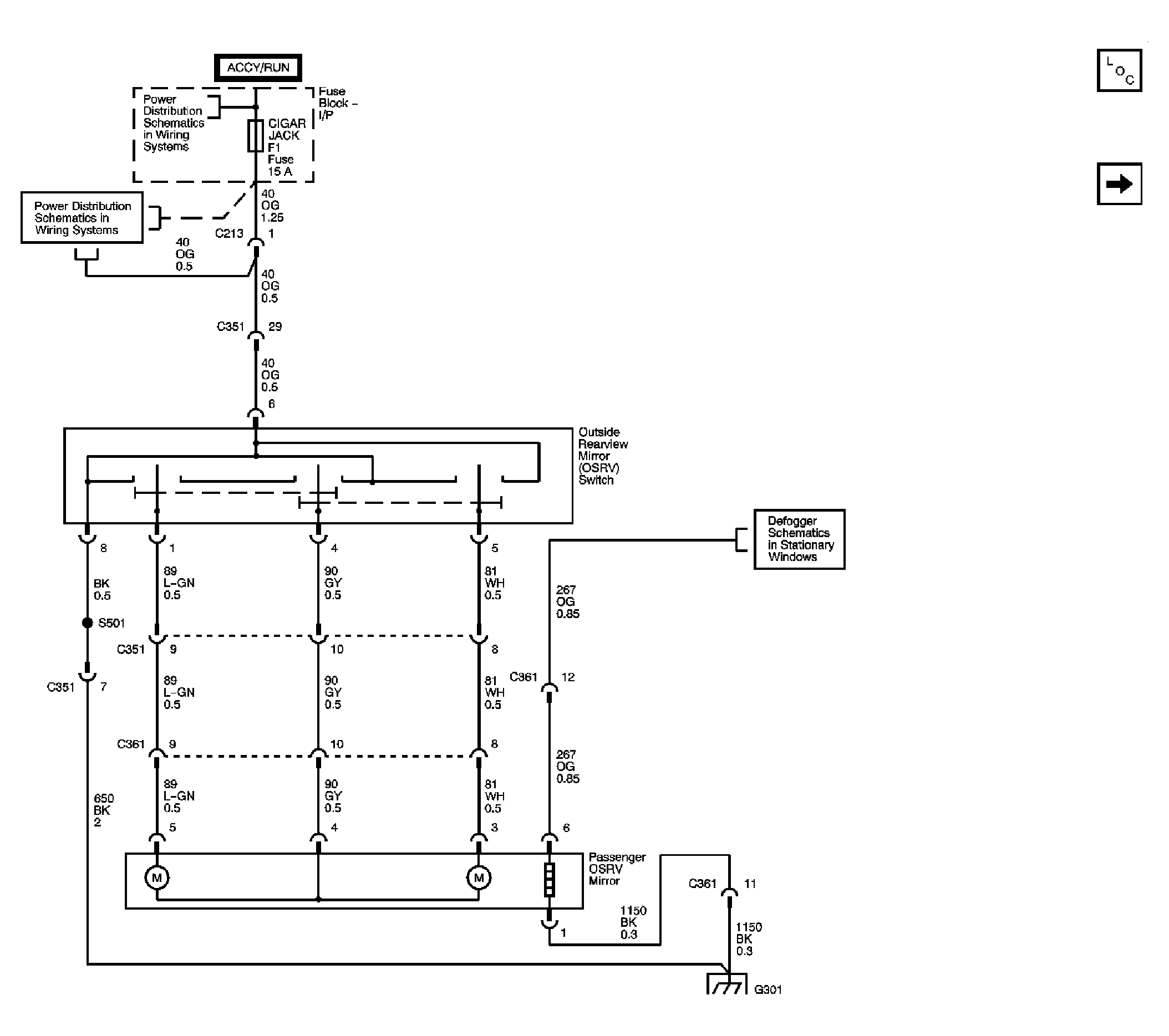

Fig 1: Outside Mirror (Passenger Only)
GM1630251Courtesy of GENERAL MOTORS CORP.

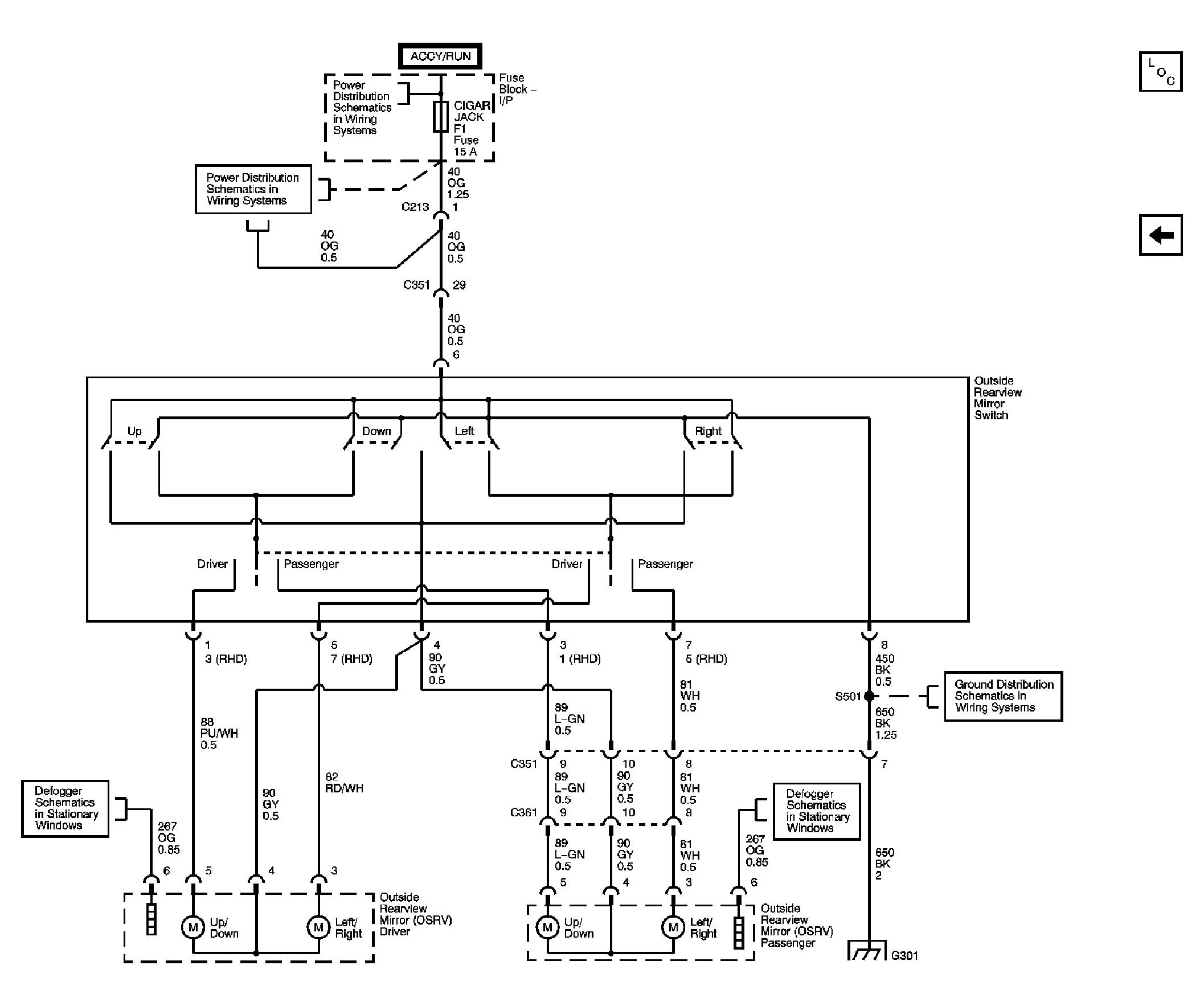

Fig 2: Outside Mirror (Dual)
GM1680316Courtesy of GENERAL MOTORS CORP.
