Catalytic Converter Removal and Installation: Installation

Install the catalytic converter and the gasket to the exhaust front pipe flange.
Tighten:
- Tighten the exhaust front pipe-to-catalytic converter nuts to 40 N.m (30 lb-ft).
- Tighten the exhaust front pipe-to-cylinder block bolt to 50 N.m (37 lb-ft).

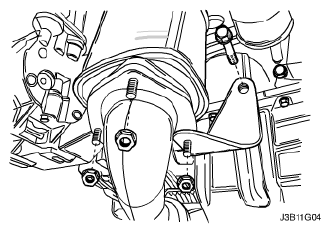

  Fig 1: Identifying Exhaust Front Pipe-To-Catalytic Converter Nuts
  Courtesy of SUZUKI OF AMERICA CORP.
Install the catalytic converter to exhaust manifold nuts and the gasket.
Tighten:

Tighten the catalytic converter to exhaust manifold nuts to 40 N.m (30 lb-ft).

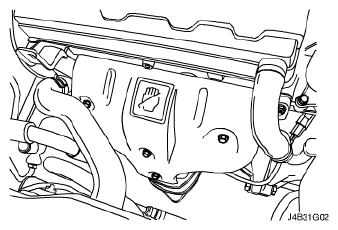

Fig 2: Identifying Catalytic Converter To Exhaust Manifold Nuts
Courtesy of SUZUKI OF AMERICA CORP.
Install the exhaust manifold cover bolts.
Tighten:

Tighten the exhaust manifold cover bolts to 15 N.m (11 lb-ft).
Connect the heated oxygen sensor electrical connector.
Connect the negative battery cable.

Fig 3: Identifying Exhaust Manifold Cover Bolts
Courtesy of SUZUKI OF AMERICA CORP.
