Electric Control OSRV (Outside Rearview) Mirror System Circuit Wiring Diagram

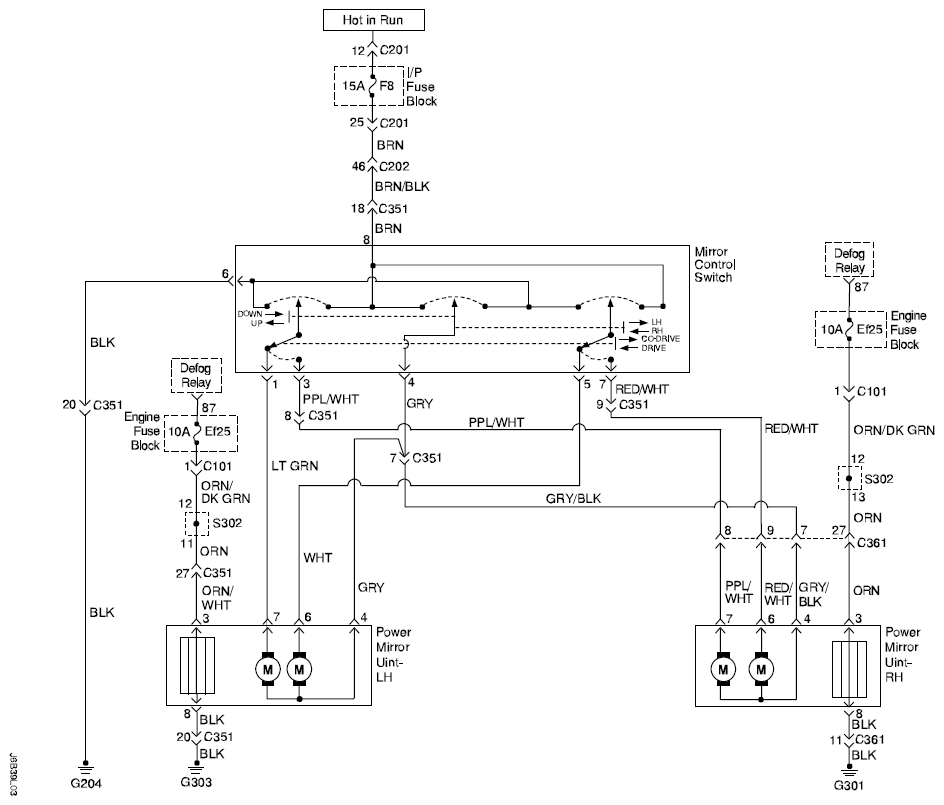

Fig 1: Electric Control OSRV Mirror System Circuit Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
