Steering Column Removal and Installation: Removal

Disconnect the negative battery cable and let the vehicle sit for 1 minute to deactivate the air bag.
Remove the lower instrument trim panels. Refer to INSTRUMENT CLUSTER TRIM PANEL REMOVAL AND INSTALLATION .
Remove the upper and the lower steering column cover panel by removing the screws.
Remove the switch levers. Refer to Headlamp / Turn Signal Switch and Lever Removal and Installation and Wiper Switch and Lever Removal and Installation .

Fig 1: Identifying Upper And Lower Steering Column Cover Panel Screws
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect the air bag electrical connections.

Fig 2: Identifying Air Bag Electrical Connections
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect the ignition switch electrical connection.

Fig 3: Disconnecting Ignition Switch Electrical Connection
Courtesy of SUZUKI OF AMERICA CORP.
Adjust the steering to the straight-ahead position.
Remove the pinch bolt from the intermediate shaft universal joint.
Disconnect the speed sensitive steering electrical connector.

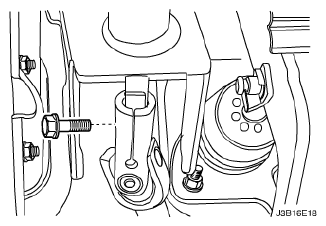

Fig 4: Identifying Pinch Bolt On Intermediate Shaft Universal Joint
Courtesy of SUZUKI OF AMERICA CORP.
Remove the bolts and nuts holding the front bracket of the steering column jacket assembly.

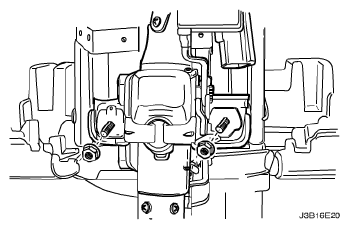

Fig 5: Identifying Bolts And Nuts Holding Front Bracket Of Steering Column Jacket Assembly
Courtesy of SUZUKI OF AMERICA CORP.
Remove the nuts holding the rear bracket of the steering column jacket assembly.
Guide the steering column assembly out of steering shaft flange and carefully lay down the assembly.

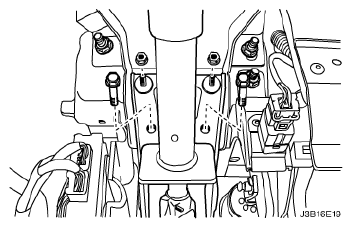

Fig 6: Identifying Nuts Holding Rear Bracket Of Steering Column Jacket Assembly
Courtesy of SUZUKI OF AMERICA CORP.
