For HATCHBACK Model

Unit: mm (in.)

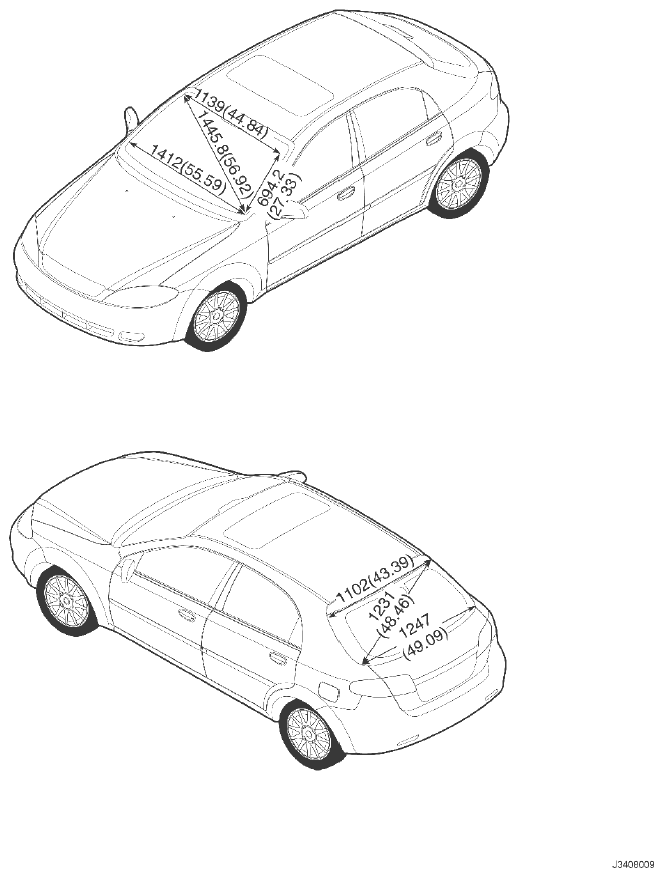

Fig 1: Identifying Windshield And Rear Glass Dimension - Hatchback Model
G04718517Courtesy of SUZUKI OF AMERICA CORP.
