For HATCHBACK Model

Unit: mm (in.)

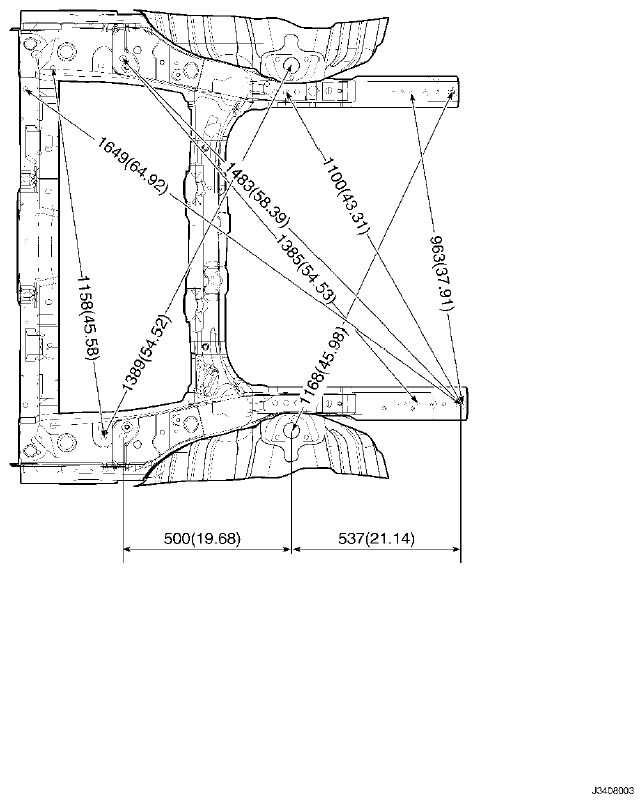

Fig 1: Identifying Under Body Dimension Chart - Rear Frame (Hatchback Model)
G04718503Courtesy of SUZUKI OF AMERICA CORP.
