System With Front and Rear Power Windows, One or Both Rear Windows Are Inoperative

System with Front and Rear Power Windows, One or Both Rear Windows Are Inoperative

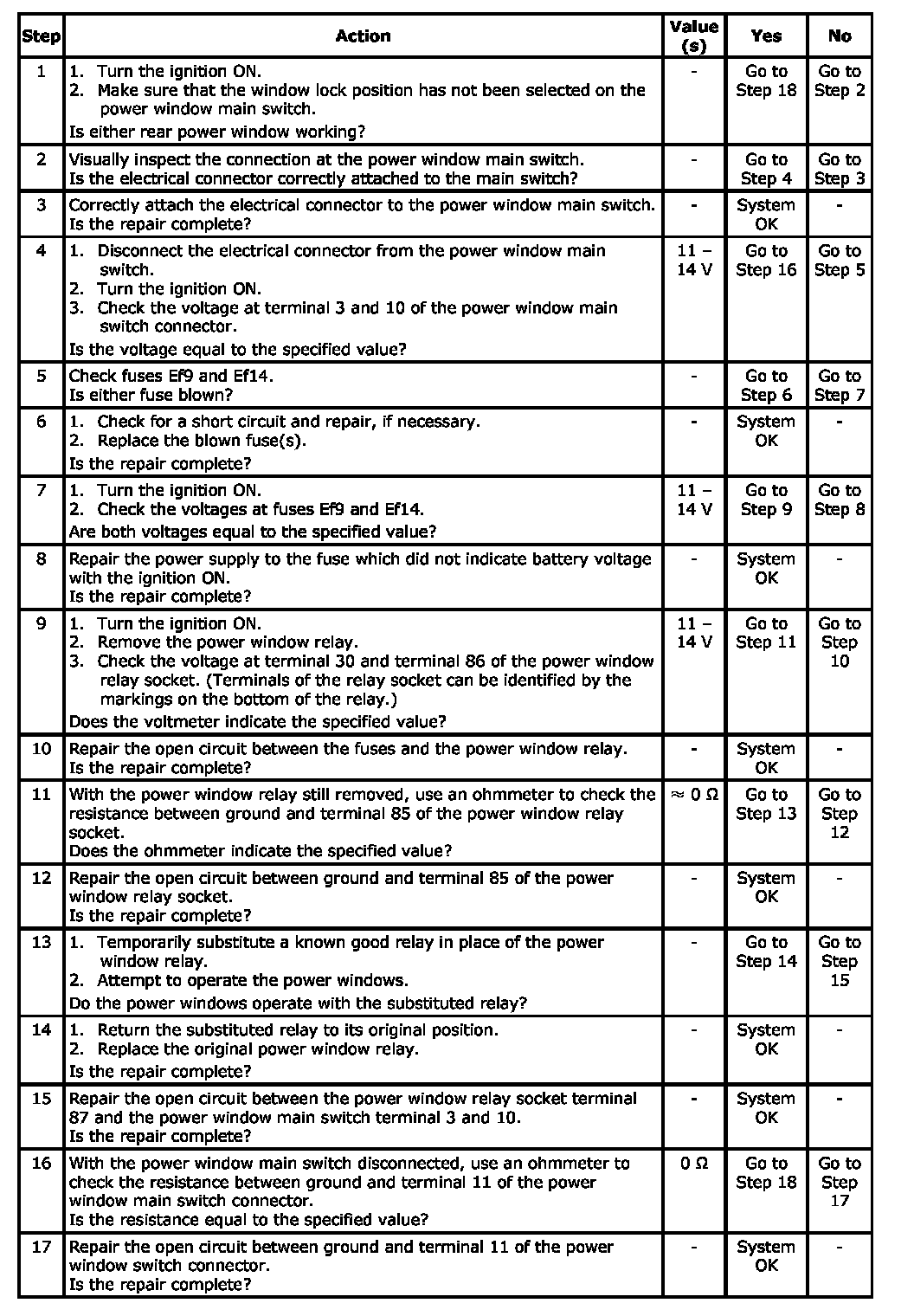

Step 1 - 17:

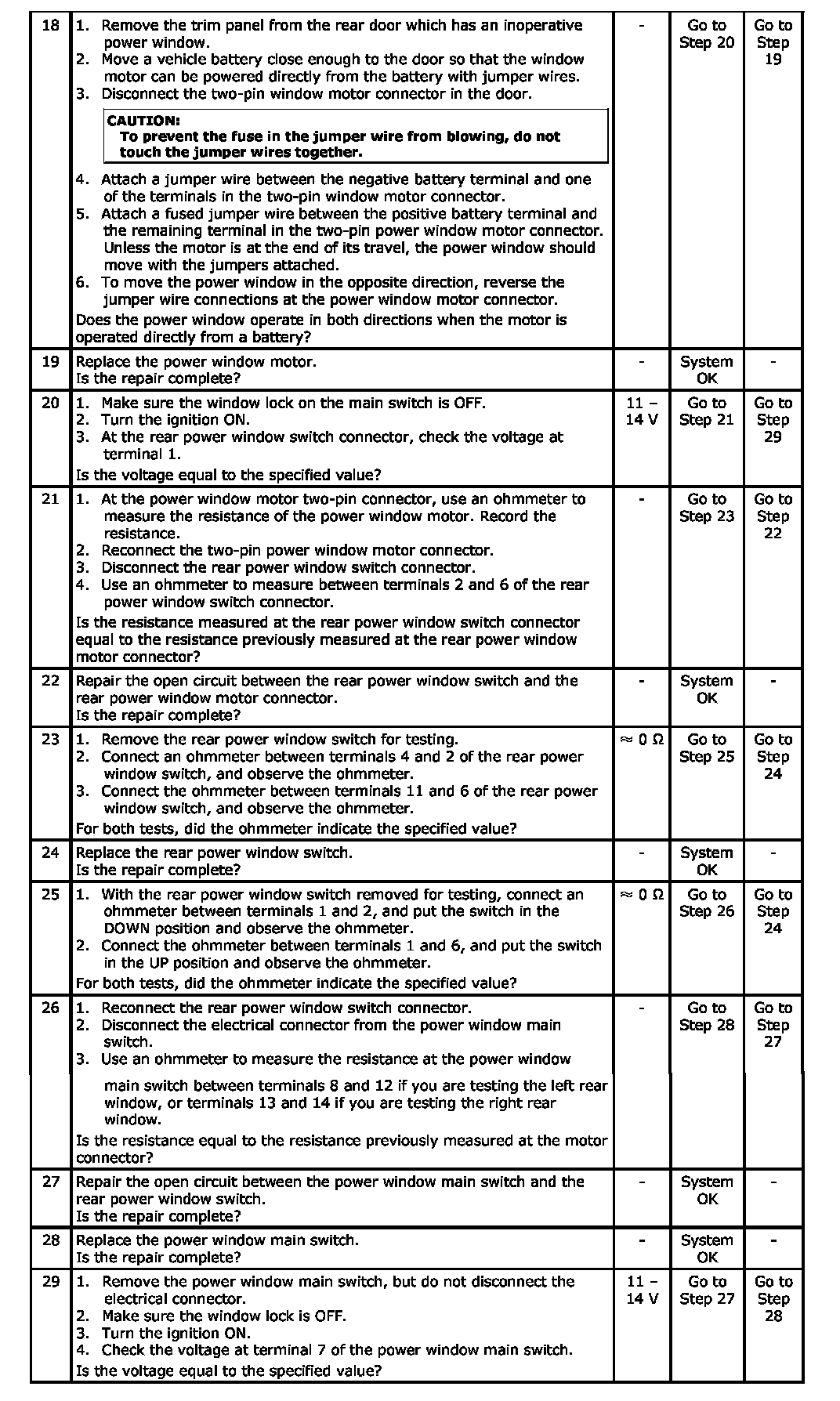

Step 18 - 29:





CAUTION: When powering the window motors directly from a battery with jumper wires, make sure one of the jumper wires contains a fuse. If the jumpers are accidentally touched together, the fuse will prevent sparking and burns from sudden terminal heating.
