Transaxle Control Module Circuit Wiring Diagram

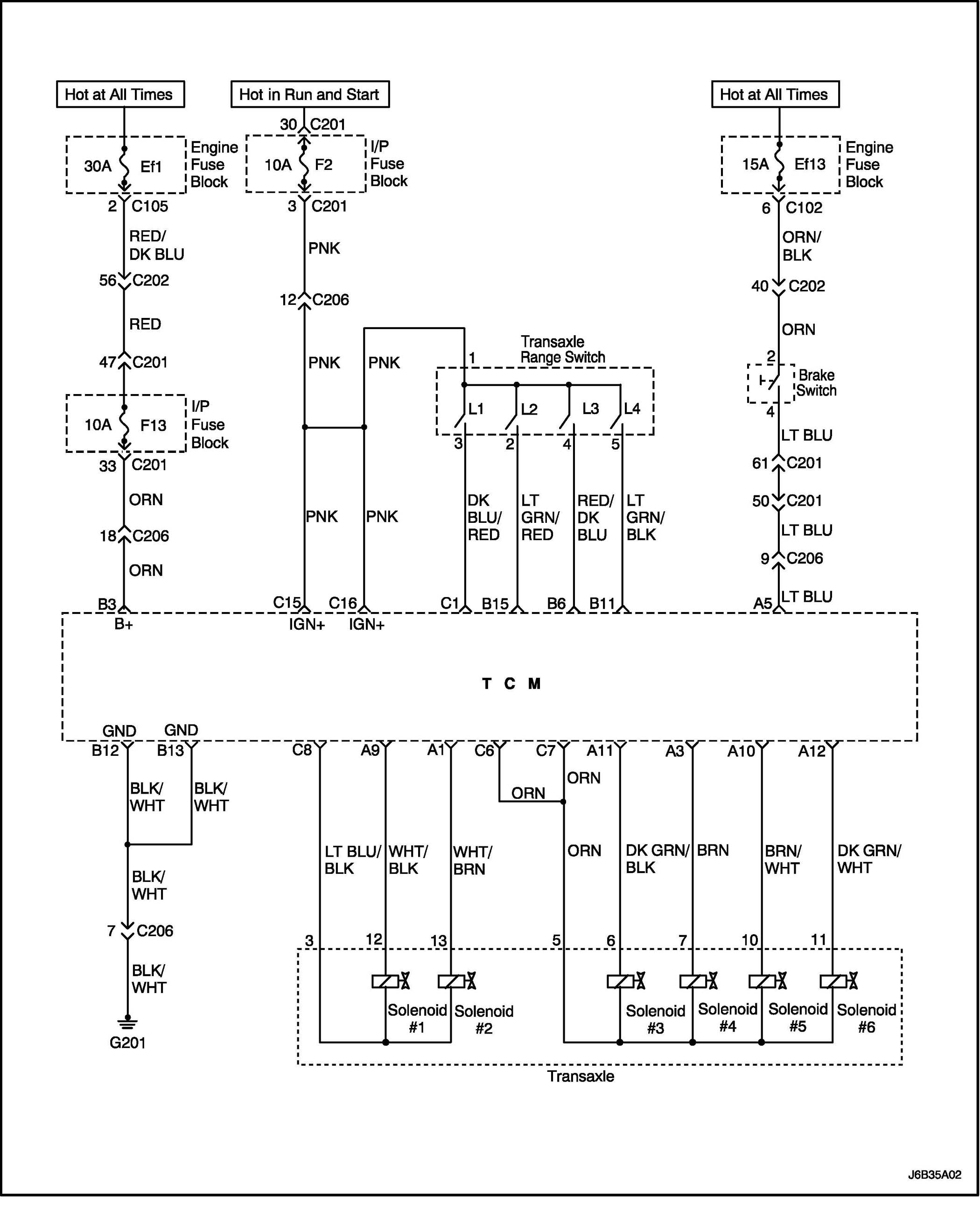

Transaxle Control Module Circuit Wiring Diagram (part 1):



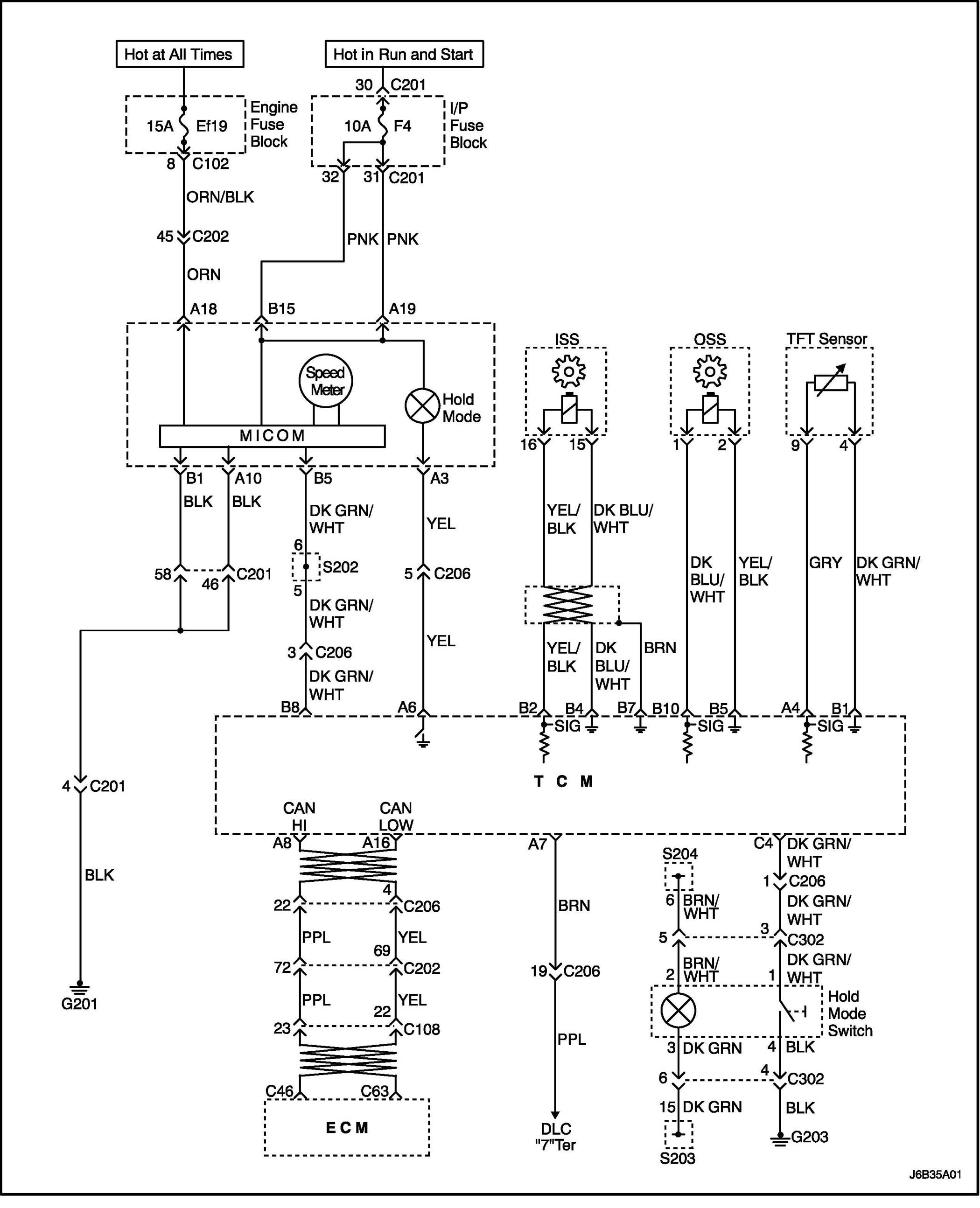

Transaxle Control Module Circuit Wiring Diagram (part 2):

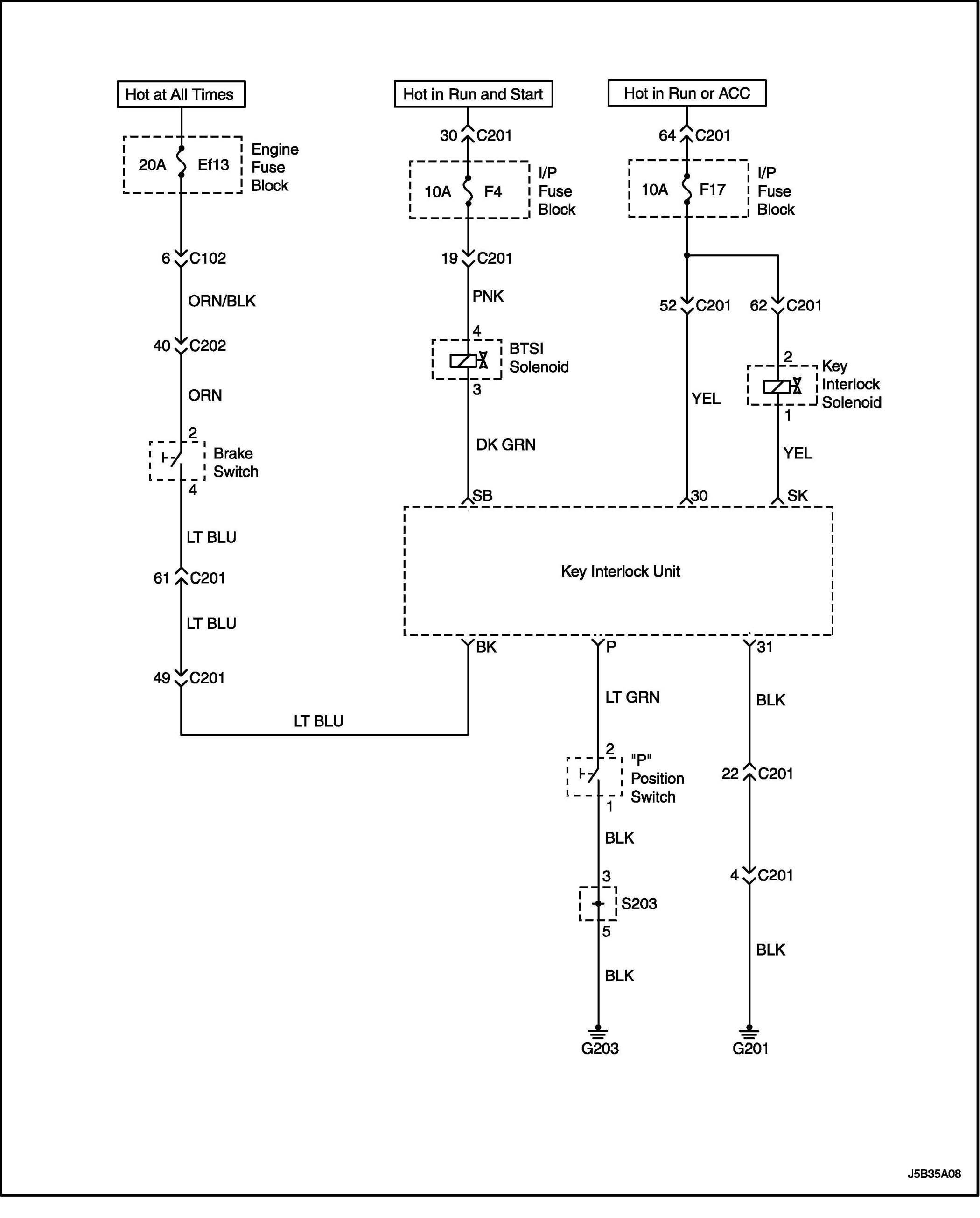

Shift Lock Control Circuit Wiring Diagram:
