Battery Power Supply, Ground, EI System and CKP Sensor Circuit

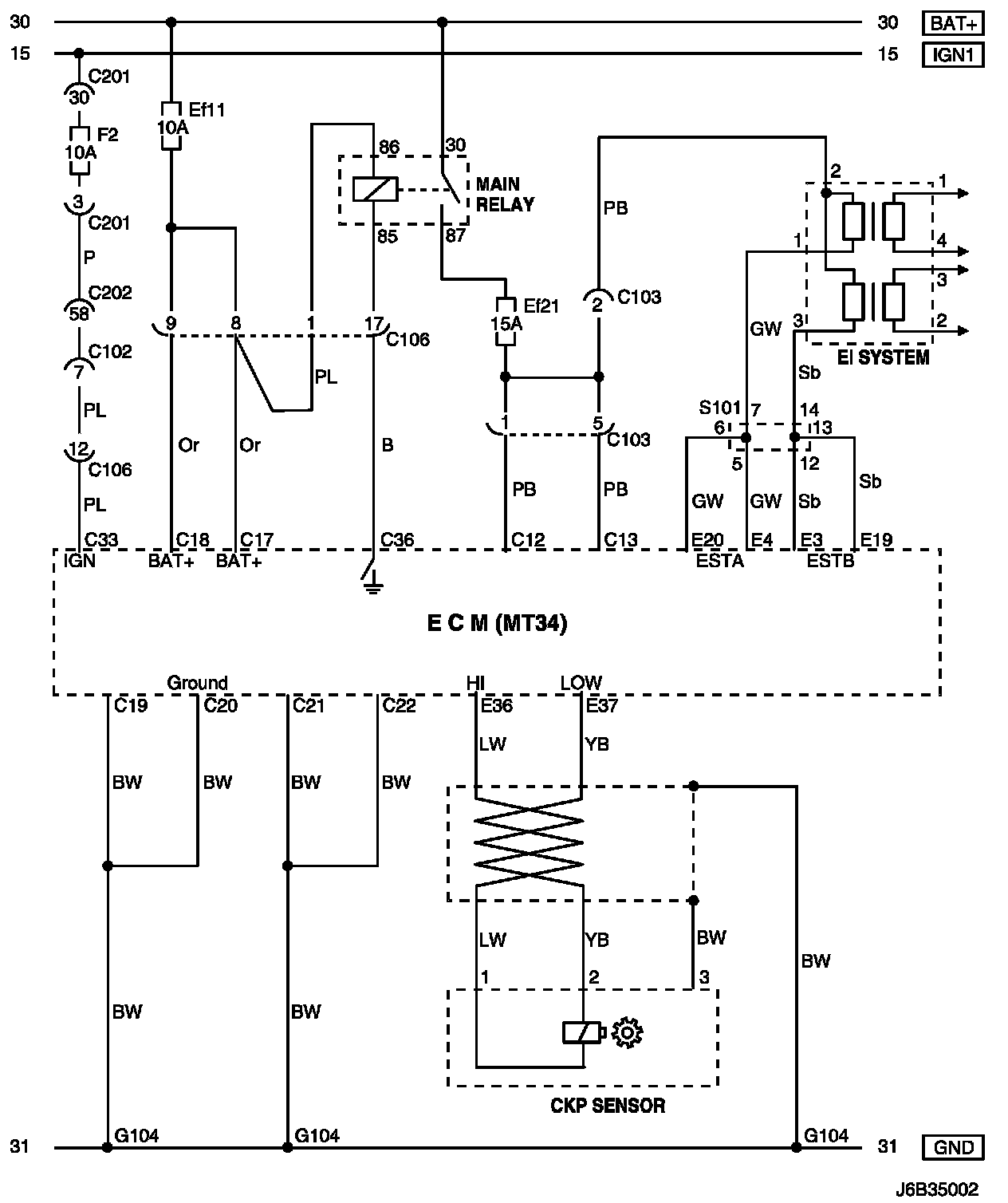

Battery Power Supply, Ground, EI System and CKP Sensor Circuit:
WIRING DIAGRAM
C102 - G104:
CONNECTOR INFORMATION

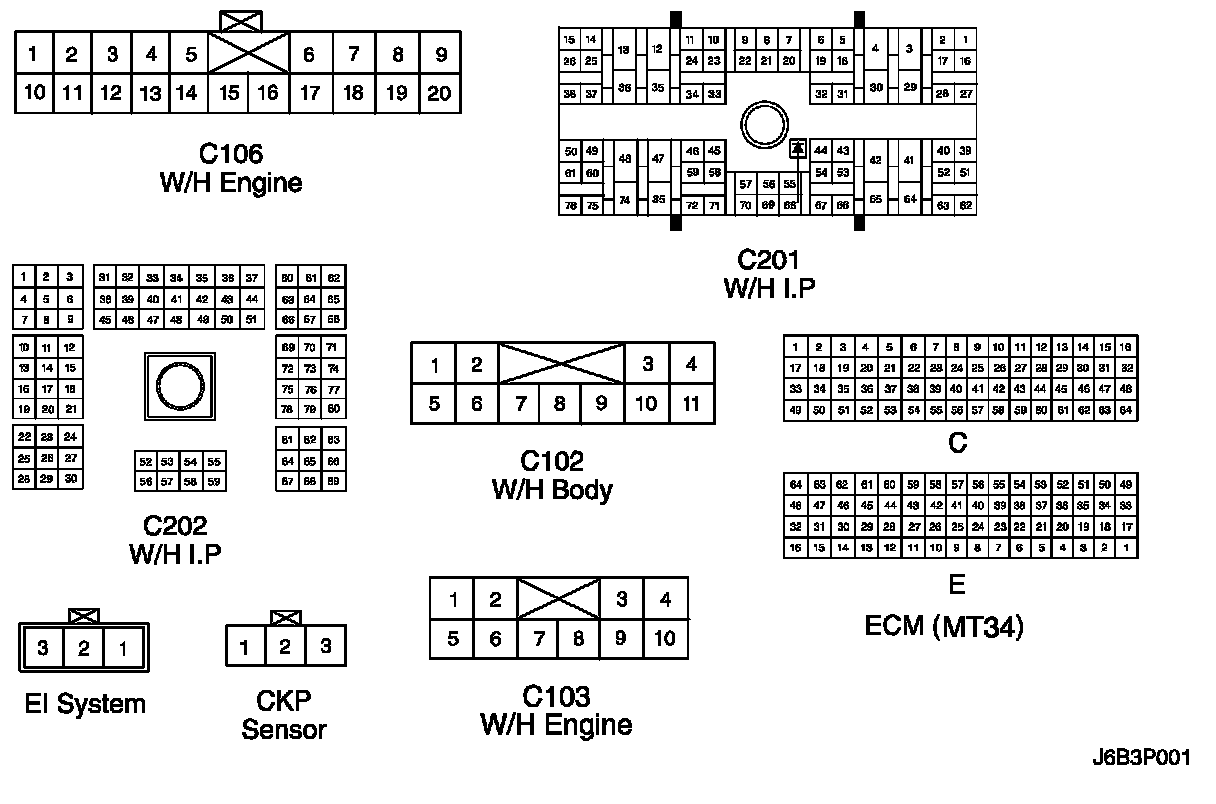

Connector Identification Symbol and Pin Number Position:
CONNECTOR IDENTIFICATION SYMBOL AND PIN NUMBER POSITION

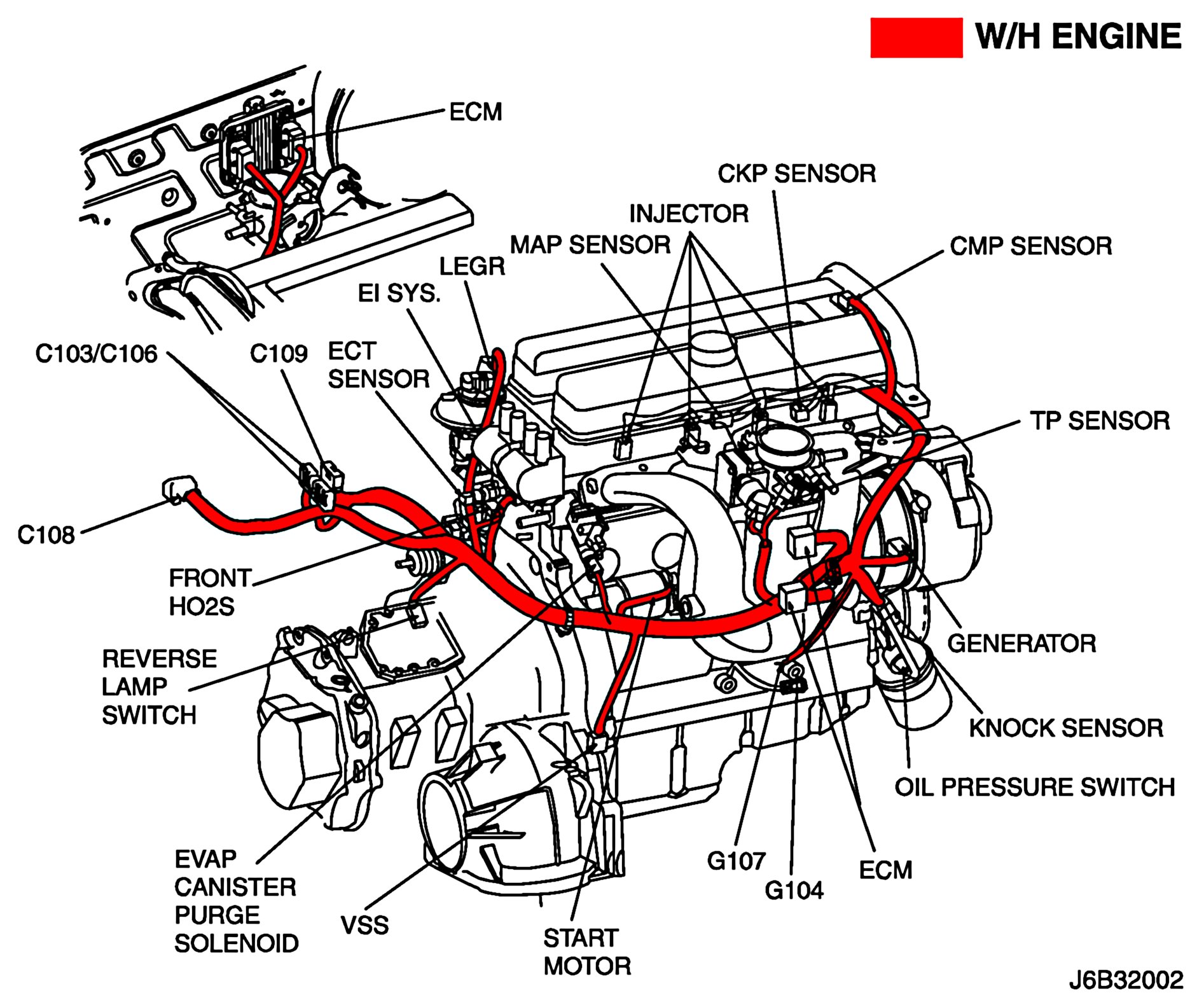

W/H ENGINE:
POSITION OF CONNECTORS AND GROUNDS
S101:
SPLICE PACK
