Home >> Suzuki >> 2006 >> Reno L4-2.0L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Application and ID
April 5, 2026: LEMON Manuals is launched! Read the announcement.

Fuse: Application and ID









Fuse Location

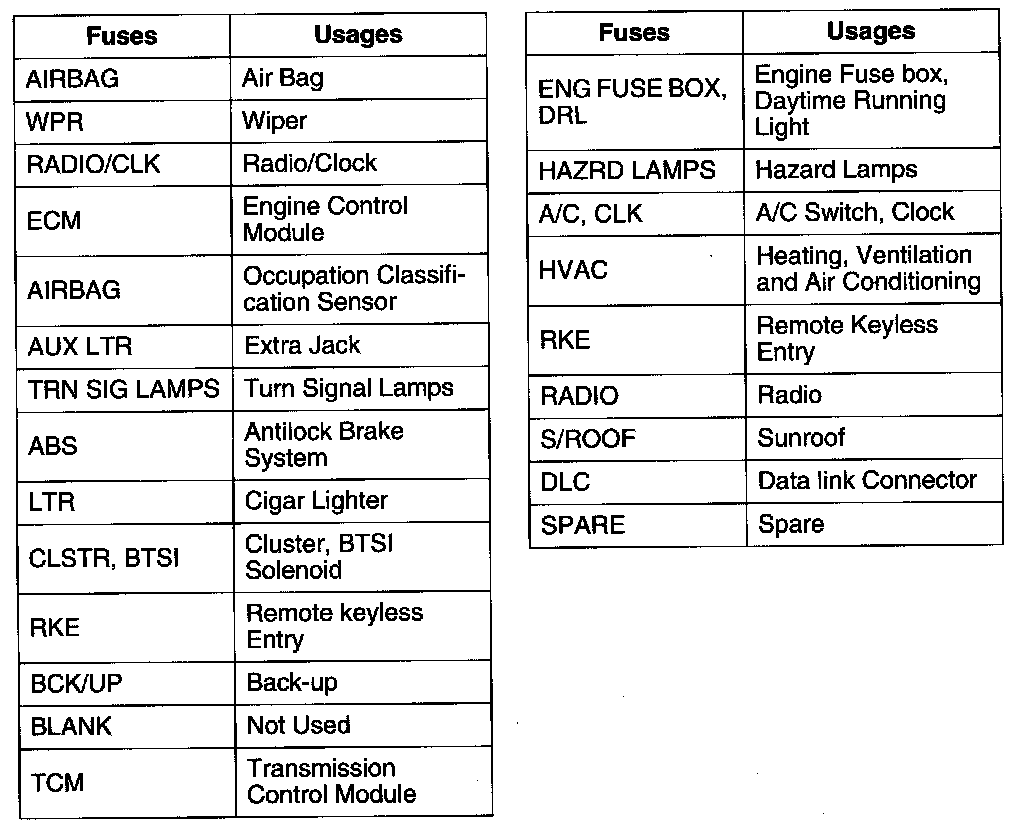

Fuse Details I/P

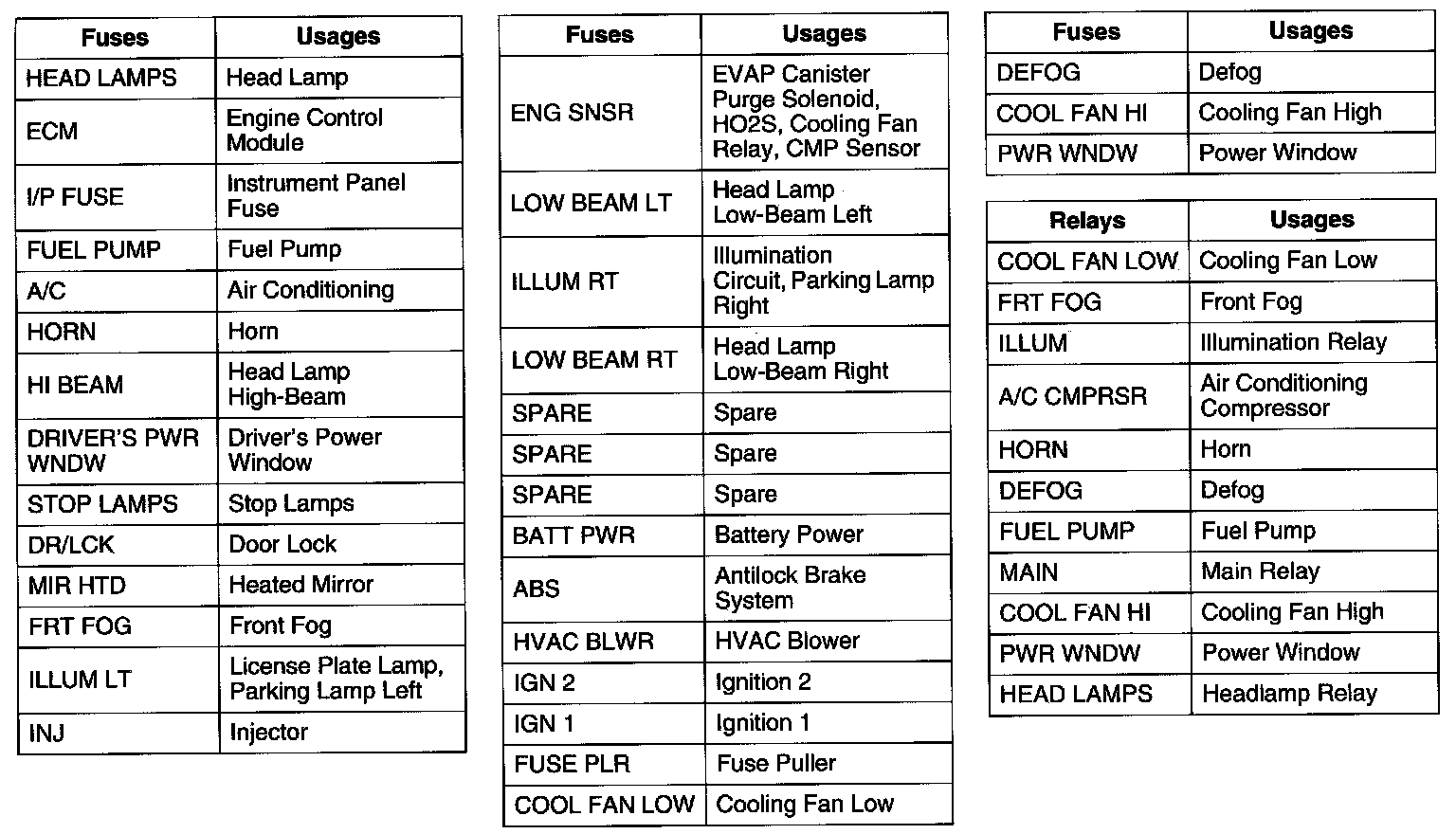

Fuse Details Engine Compartment
