For Notchback Model Canada Only

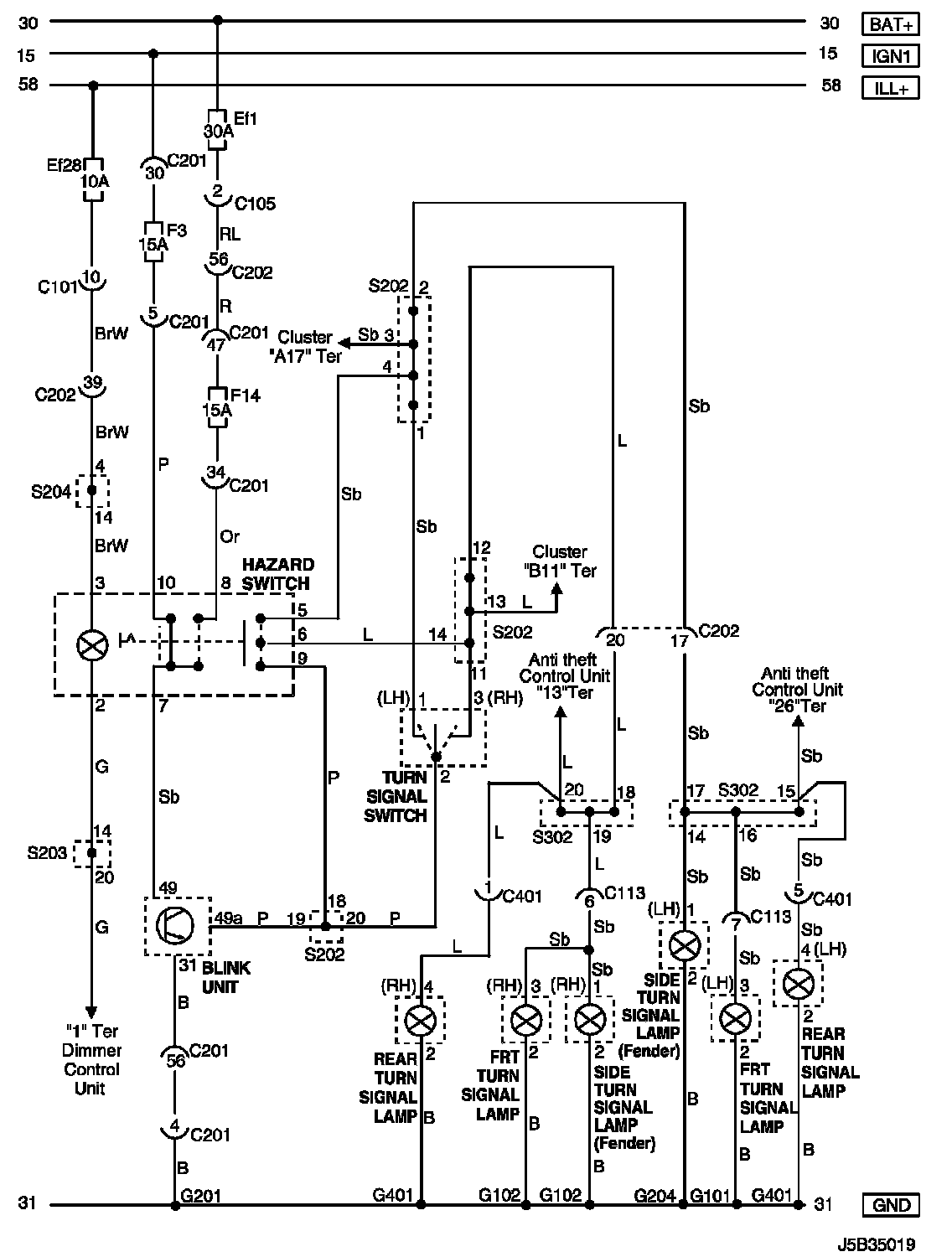

Hazard and Turn Signal Lamp Circuit Wiring Diagram (For NOTCHBACK Model Canada Only):
WIRING DIAGRAM
CONNECTOR INFORMATION

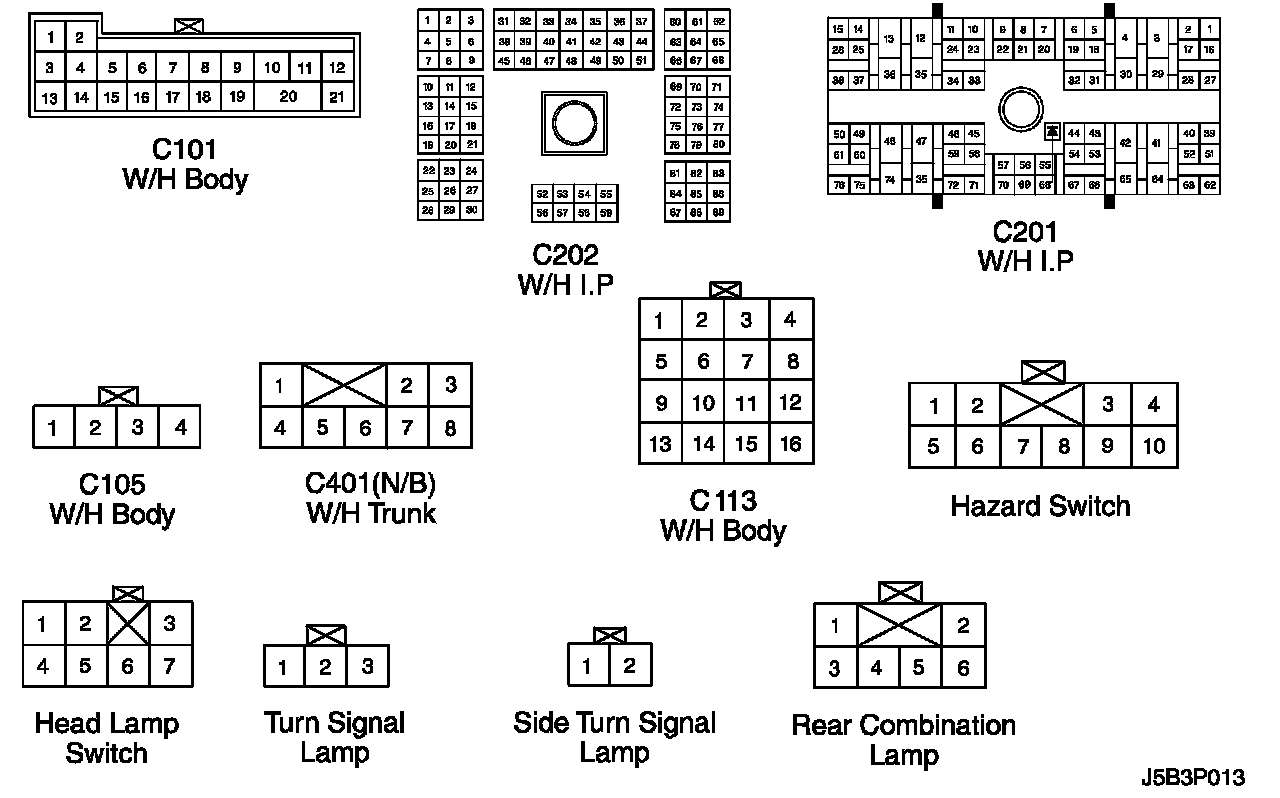

Connector Identification Symbol and Pin Number Position:
CONNECTOR IDENTIFICATION SYMBOL AND PIN NUMBER POSITION

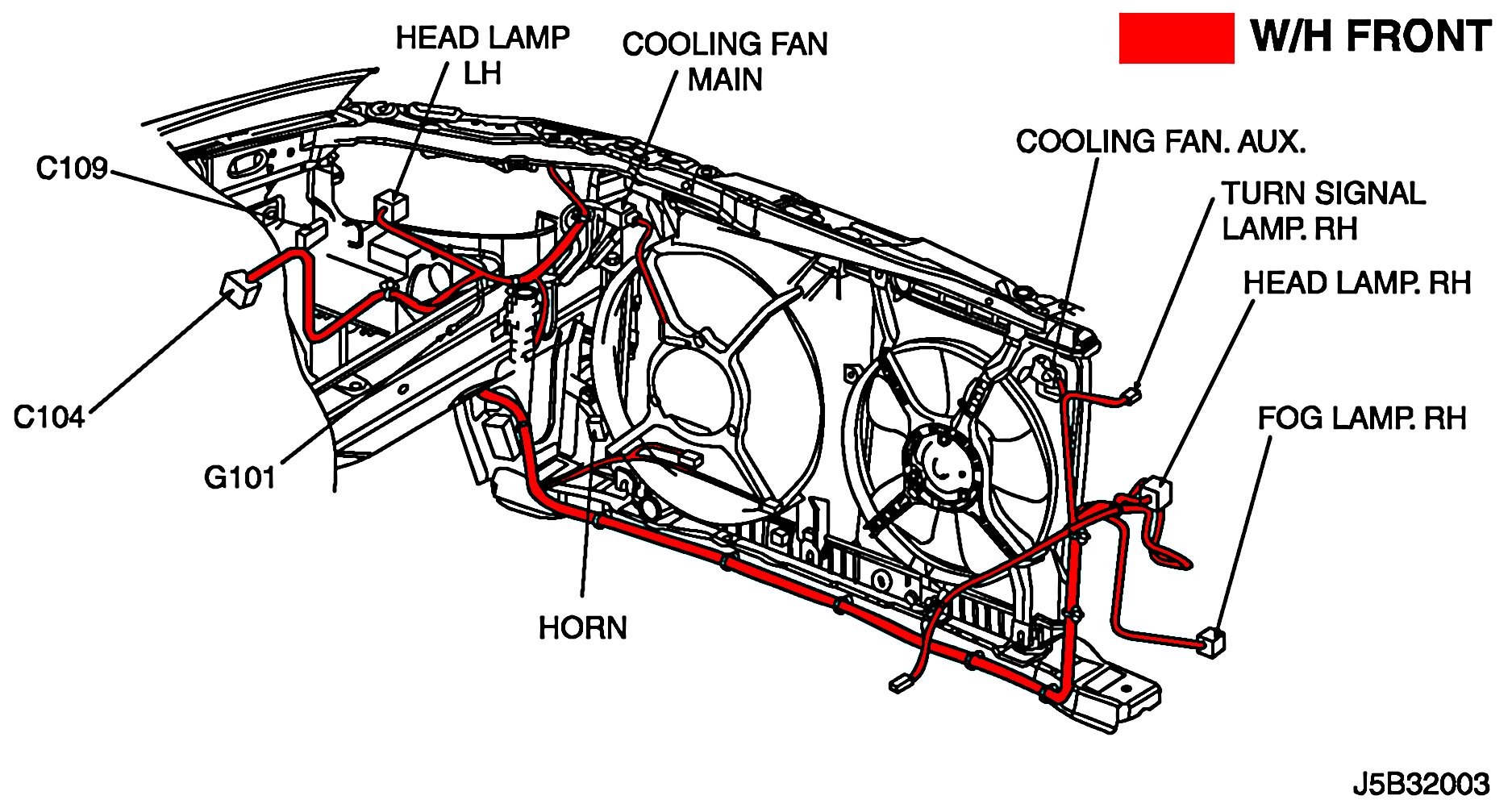

W/H FRONT:
POSITION OF CONNECTORS AND GROUNDS
S202:
S203:
S204:
S302 (Notchback):
SPLICE PACK
