For Notchback Model

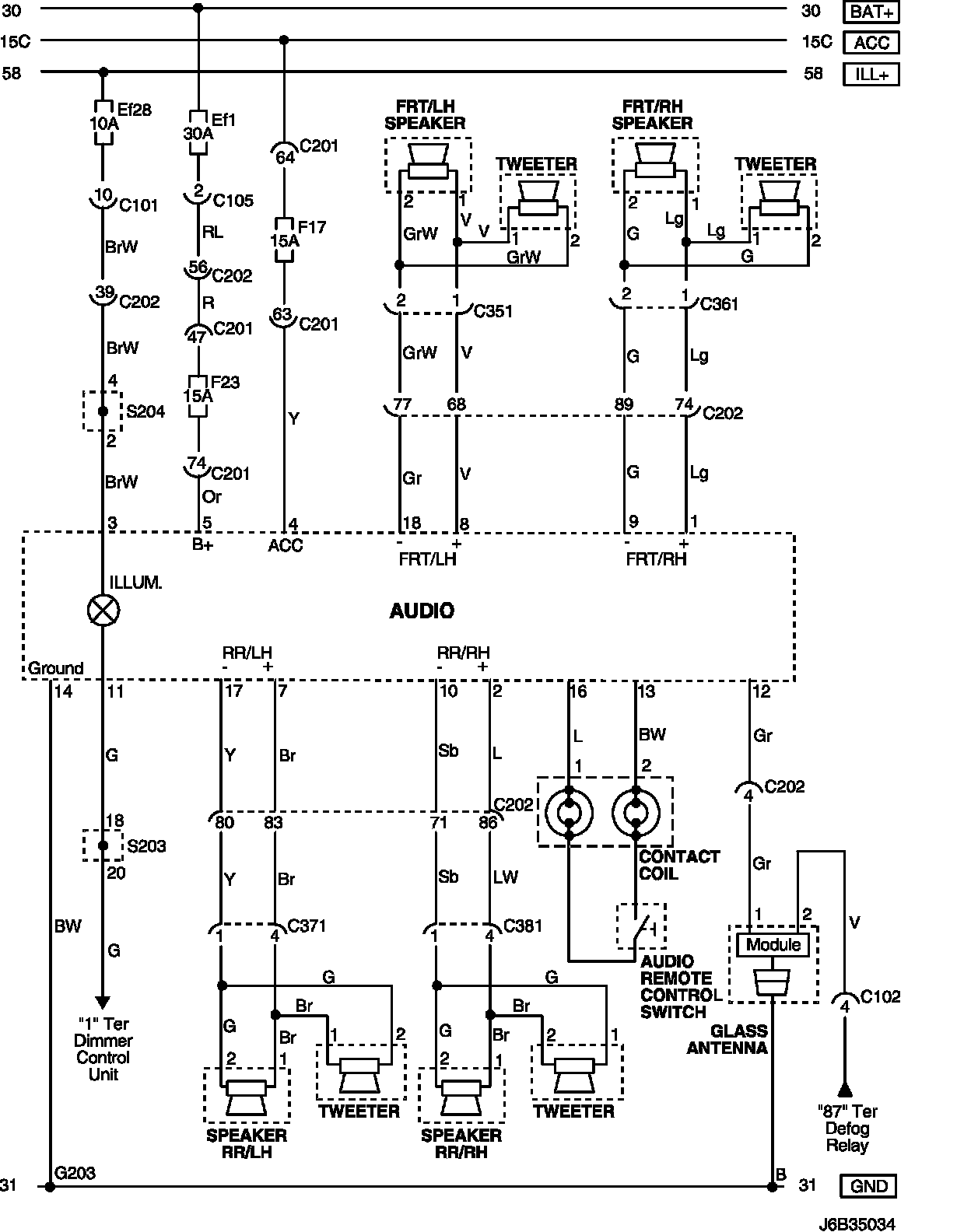

Audio Circuit (For NOTCHBACK Model):
WIRING DIAGRAM
C101 - G203:
CONNECTOR INFORMATION

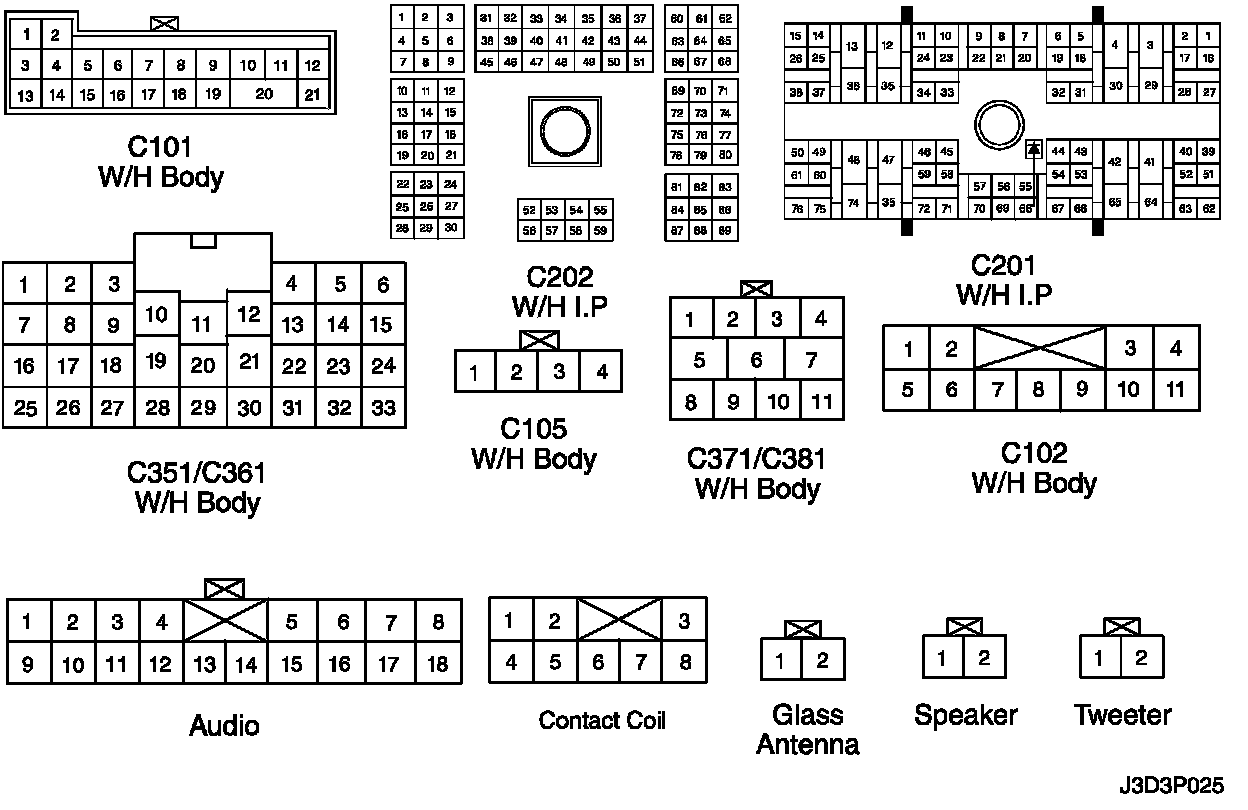

Connector Identification Symbol and Pin Number Position:
CONNECTOR IDENTIFICATION SYMBOL AND PIN NUMBER POSITION
W/H INSTRUMENT PANEL:

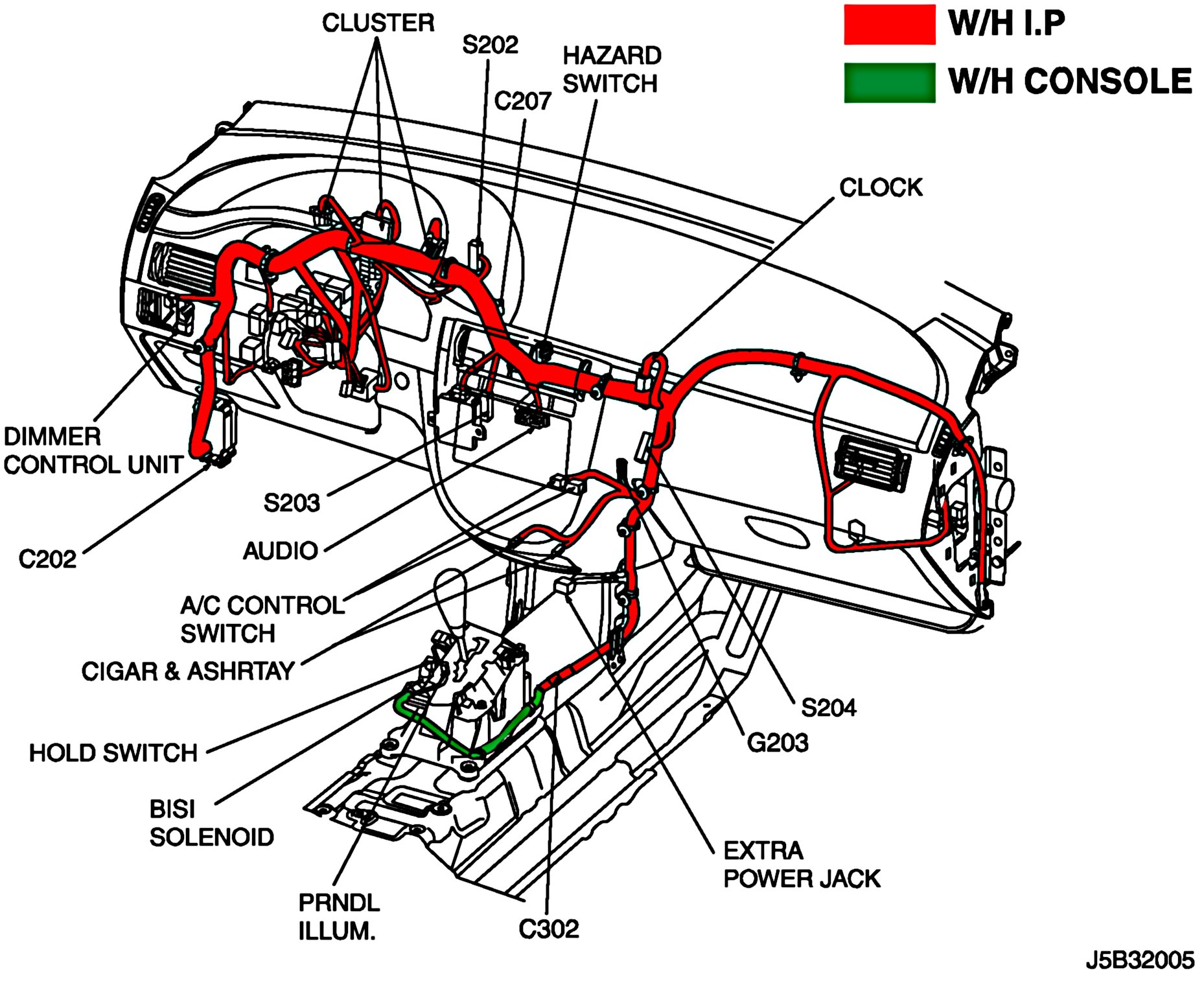

POSITION OF CONNECTORS AND GROUNDS
S203:
S204:
SPLICE PACK
