Illumination Circuit - W/ Dimmer Control
Illumination Circuit:

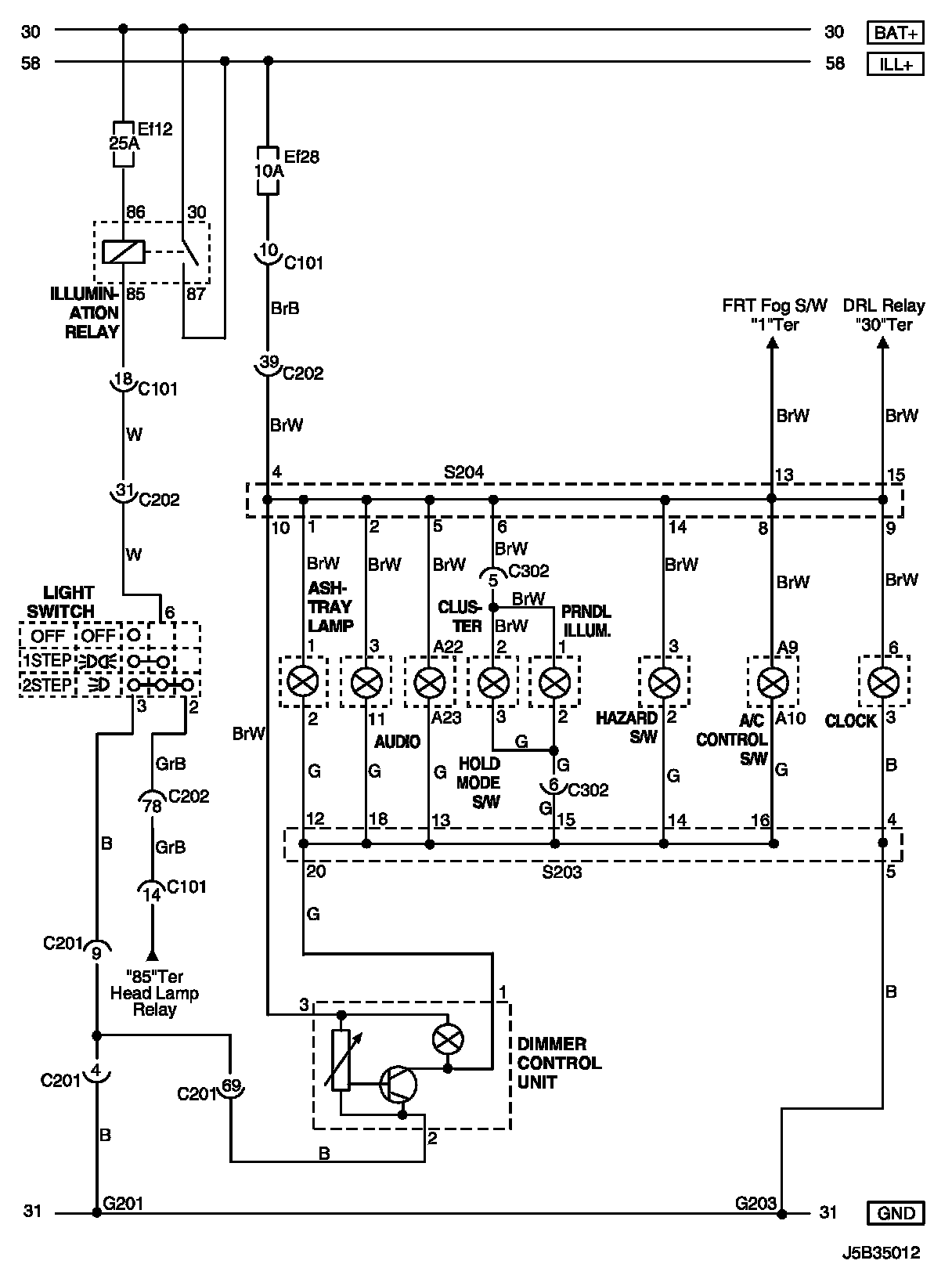

WIRING DIAGRAM
C101 - G203:
CONNECTOR INFORMATION
Connector Identification Symbol and Pin Number Position:
CONNECTOR IDENTIFICATION SYMBOL AND PIN NUMBER POSITION
W/H INSTRUMENT PANEL:

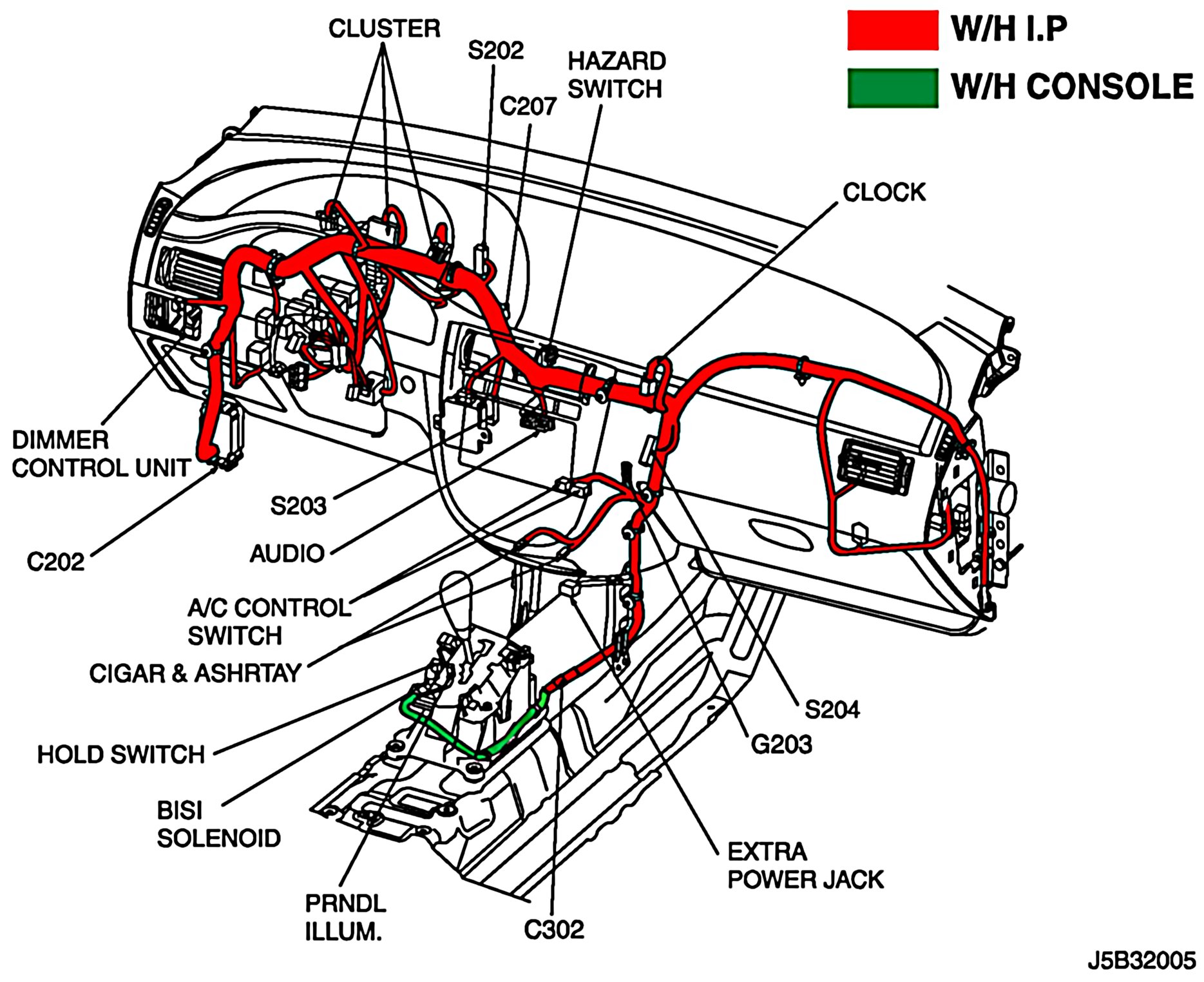

POSITION OF CONNECTORS AND GROUNDS
S203:
S204:
SPLICE PACK
