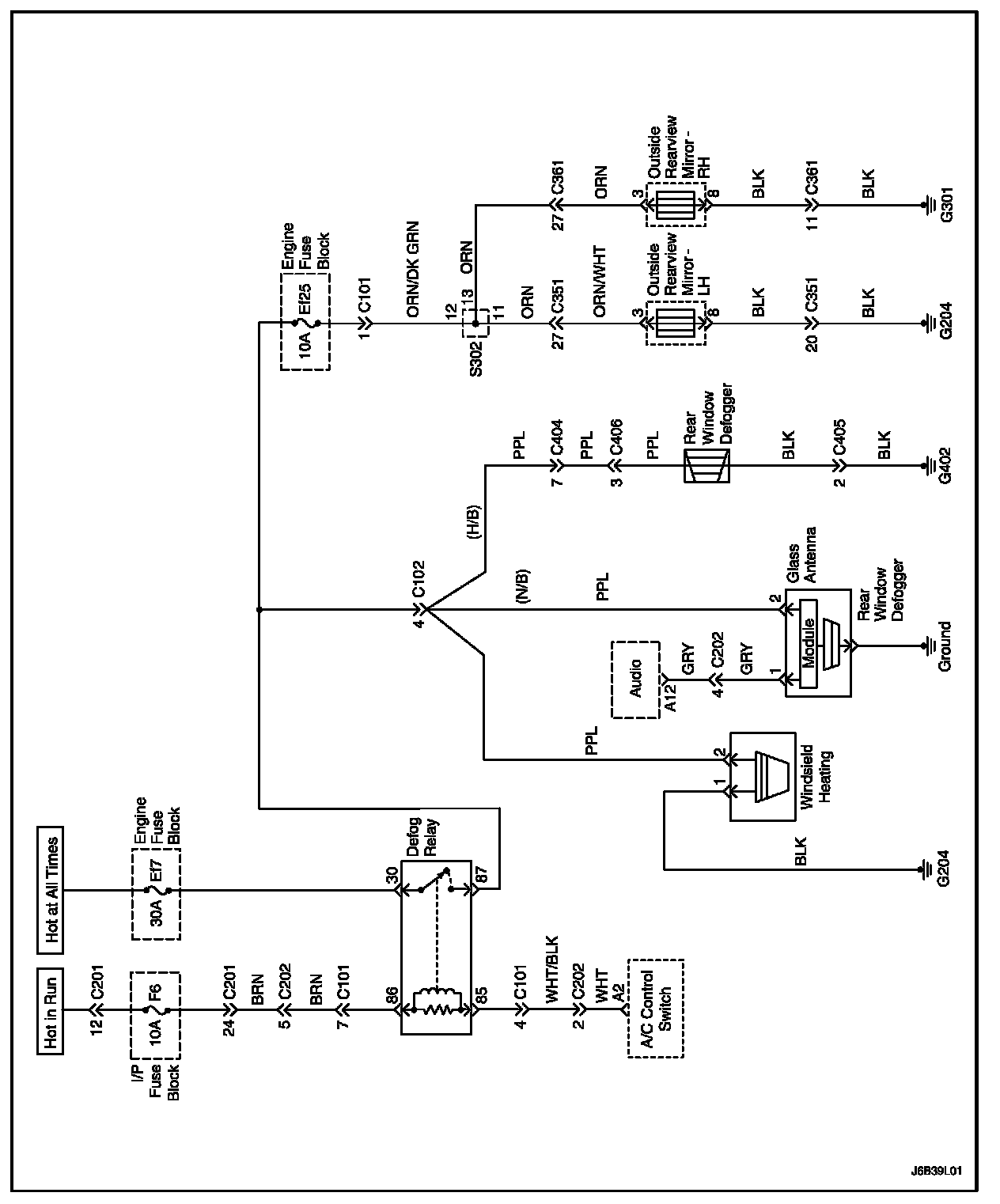

Defogger System Circuit Wiring Diagram (For Notchback and Hatchback Model)

Defogger System Circuit Wiring Diagram (For Notchback And Hatchback Model):
