For Notchback Model

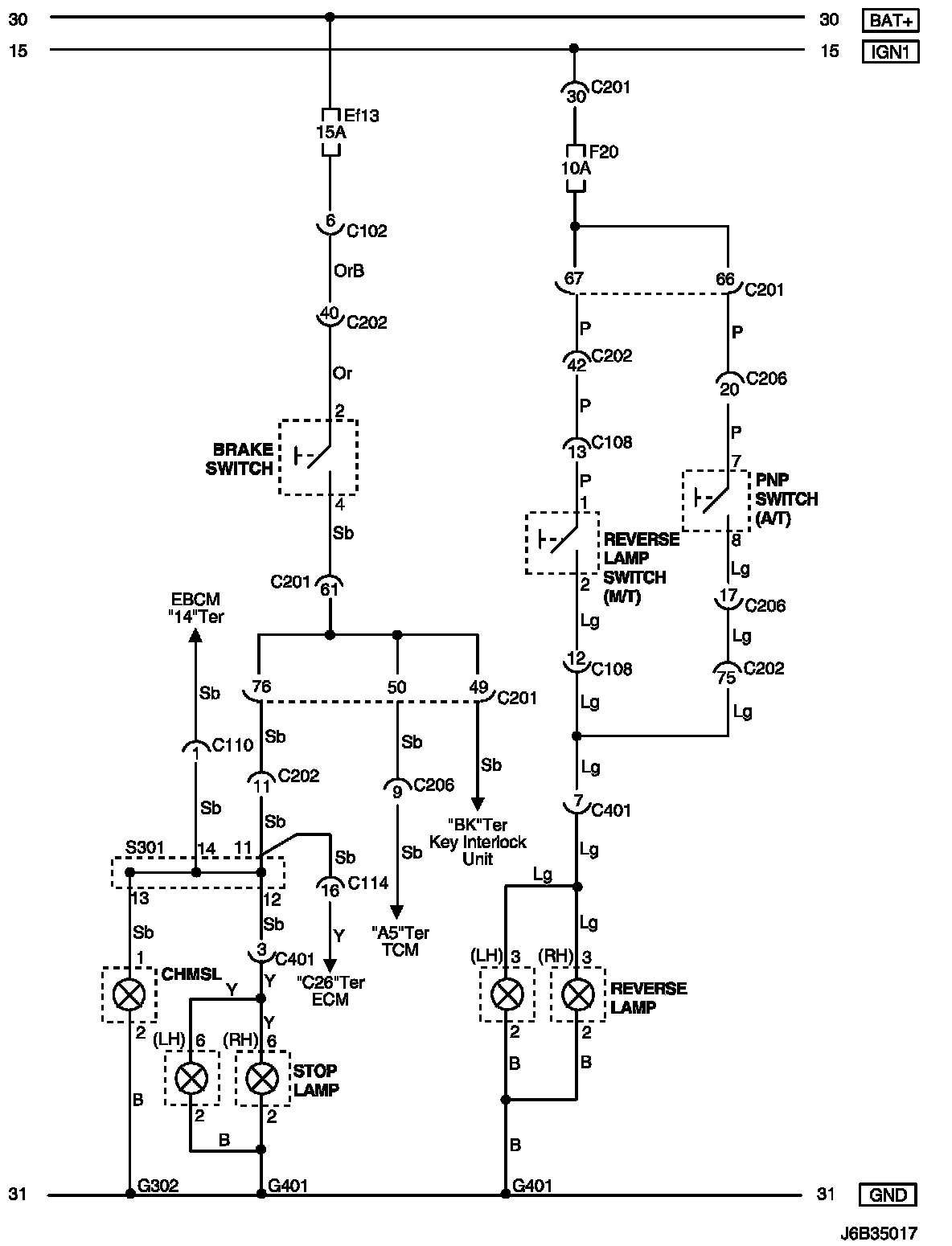

Stop Lamp, Center High Mount Stop Lamp (CHMSL) and Reverse Lamp Circuit Wiring Diagram (For HATCHBACK Model Only):
WIRING DIAGRAM
C102 - G401:

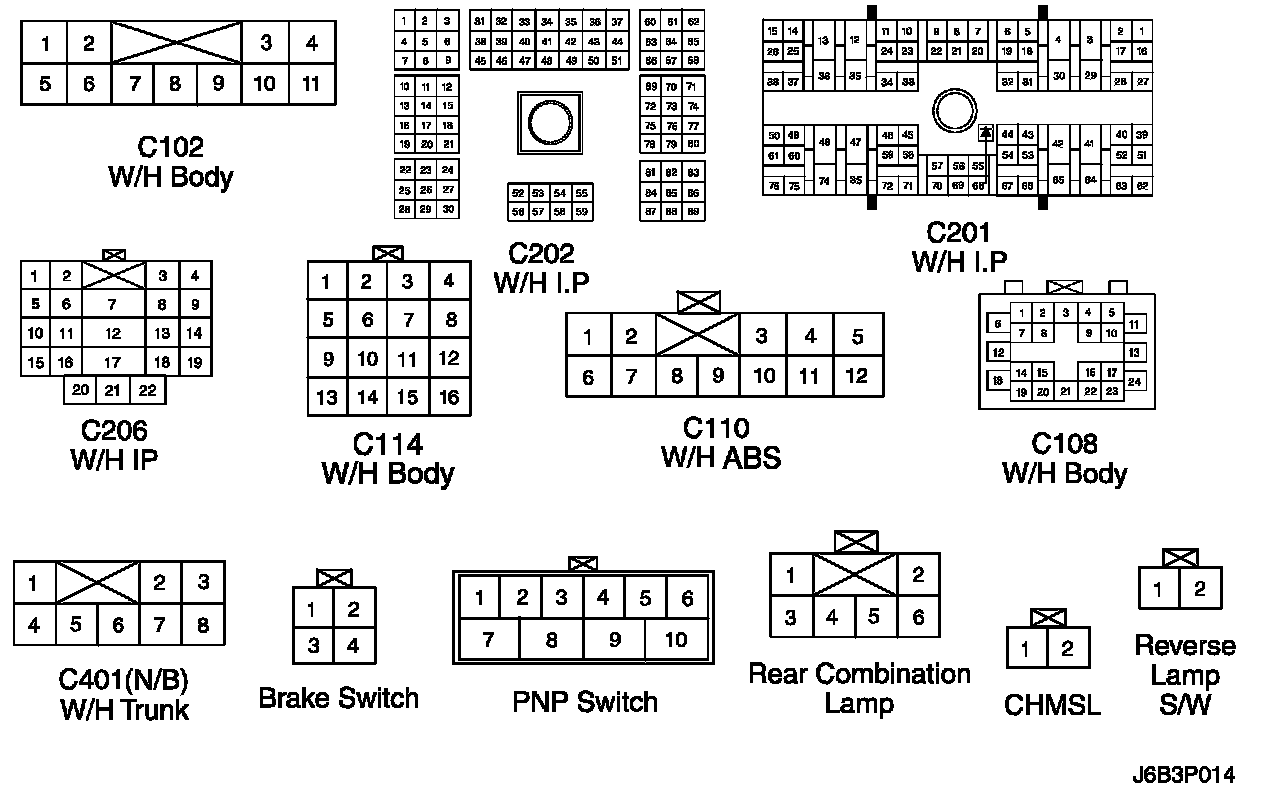

CONNECTOR INFORMATION
Connector Identification Symbol and Pin Number Position:
CONNECTOR IDENTIFICATION SYMBOL AND PIN NUMBER POSITION

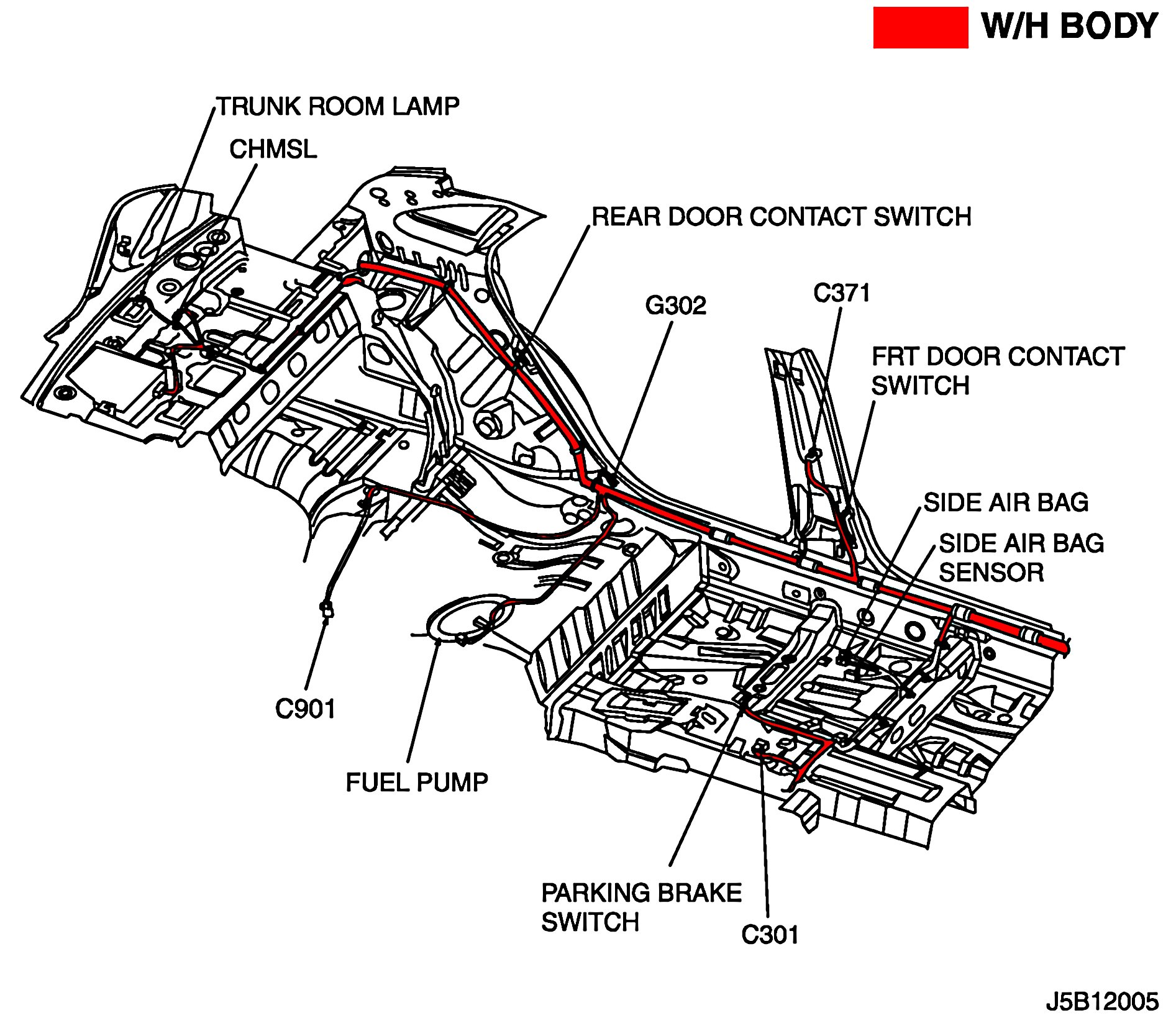

W/H BODY:
POSITION OF CONNECTORS AND GROUNDS
S301 (Notchback):
SPLICE PACK
