For Notchback Model

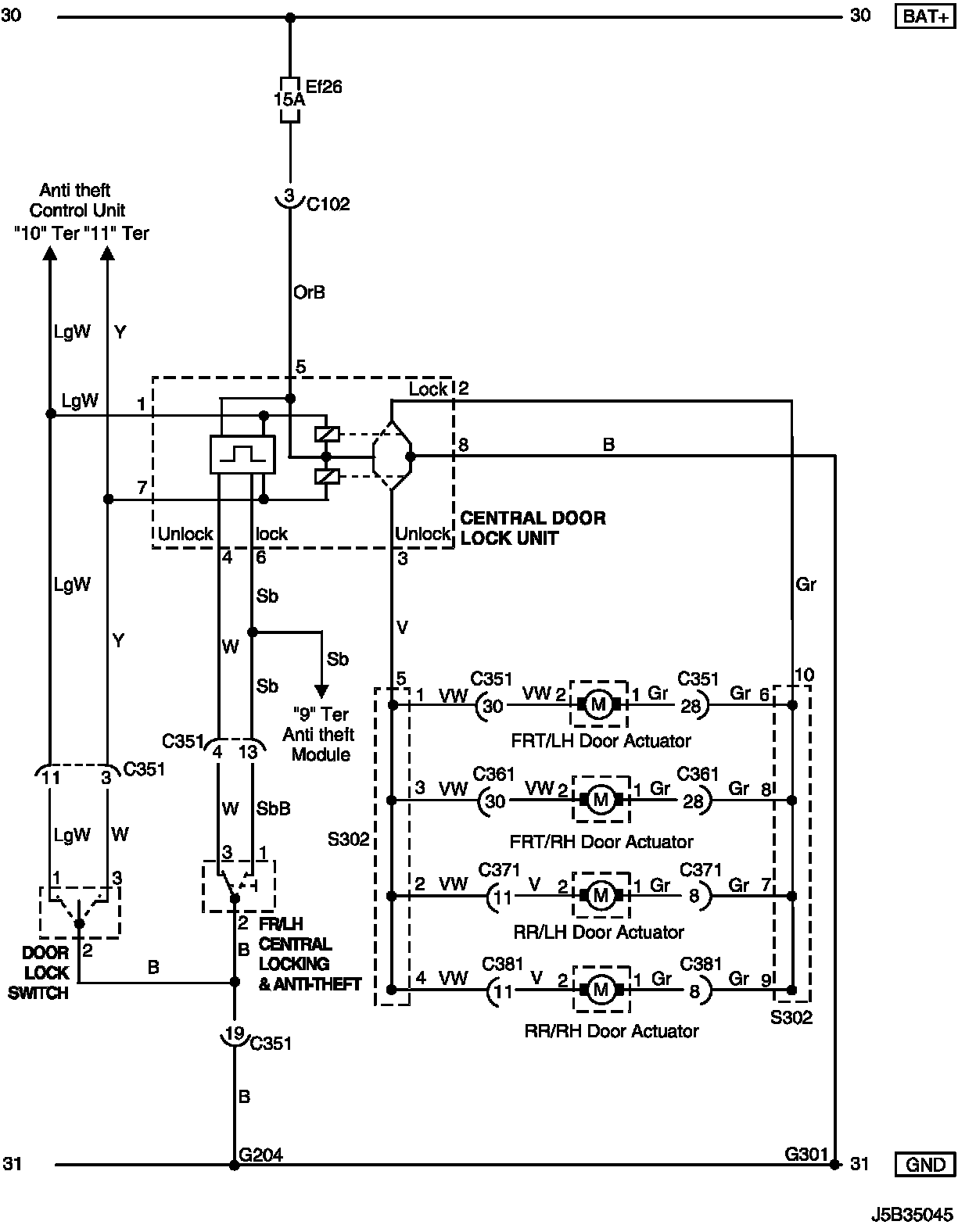

Central Door Locking System Circuit Wiring Diagram (For NOTCHBACK Model):
WIRING DIAGRAM
C102 - G301:
CONNECTOR INFORMATION
Connector Identification Symbol and Pin Number Position:
CONNECTOR IDENTIFICATION SYMBOL AND PIN NUMBER POSITION

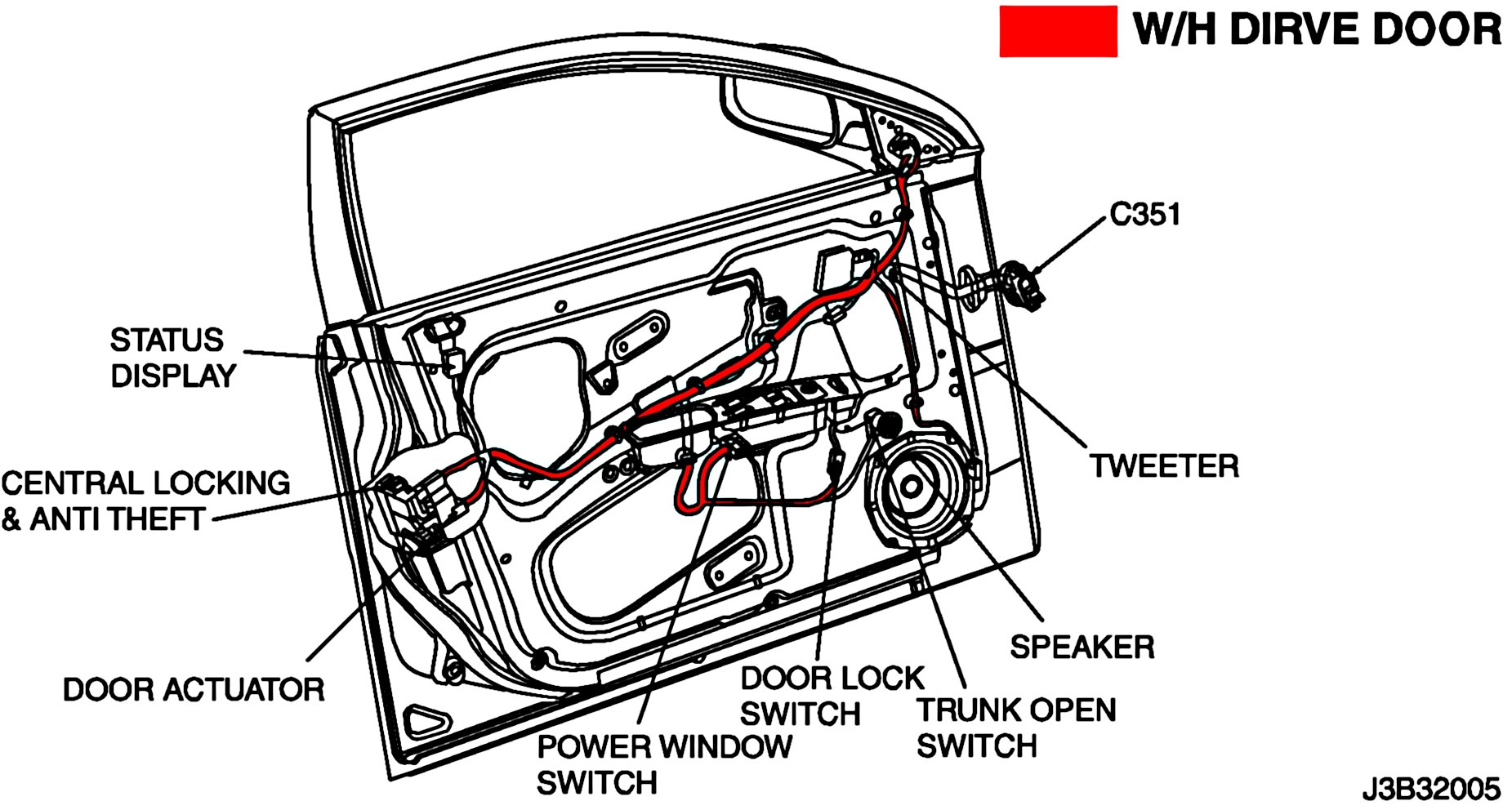

W/H DRIVE DOOR:

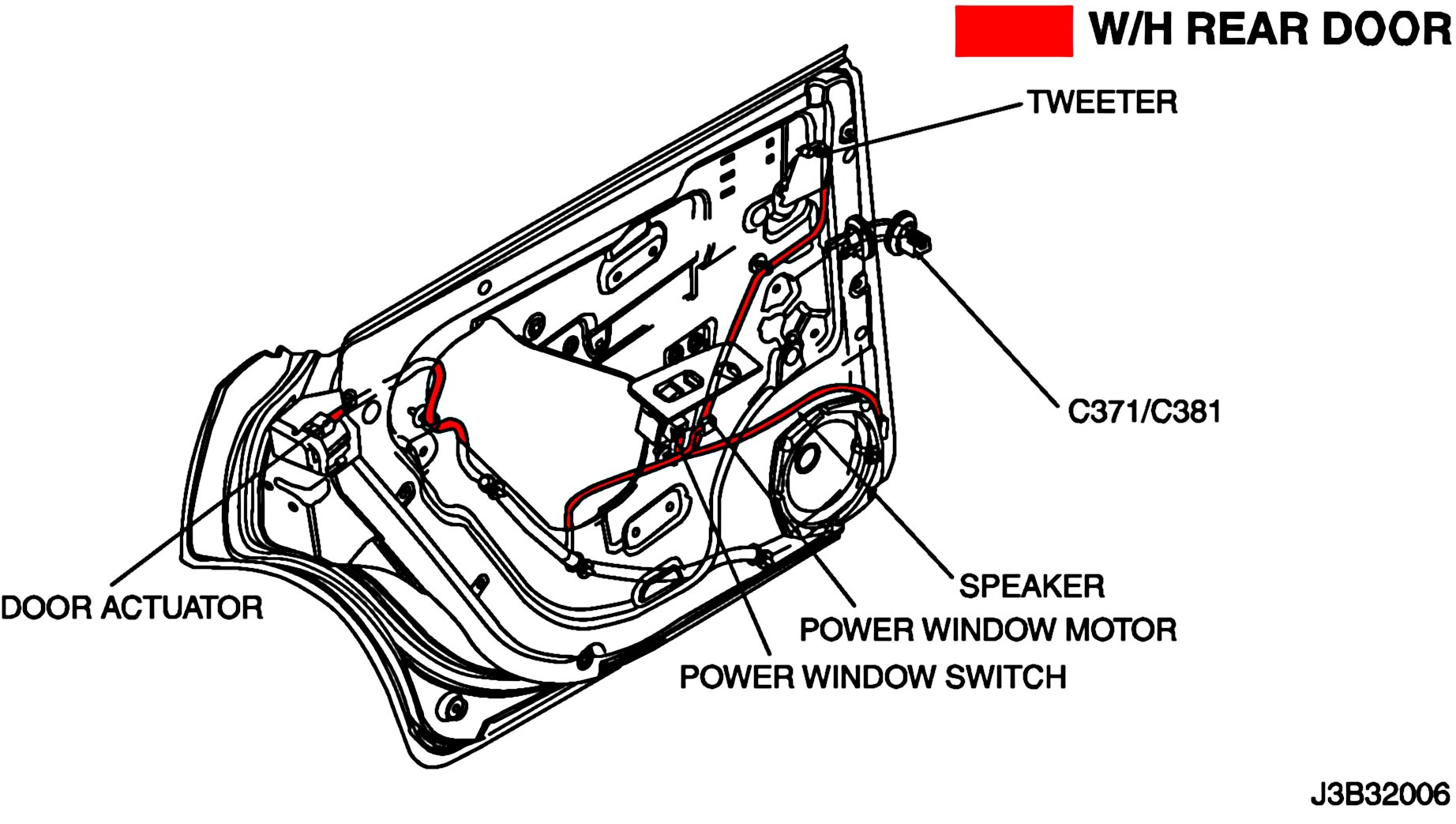

W/H REAR DOOR:

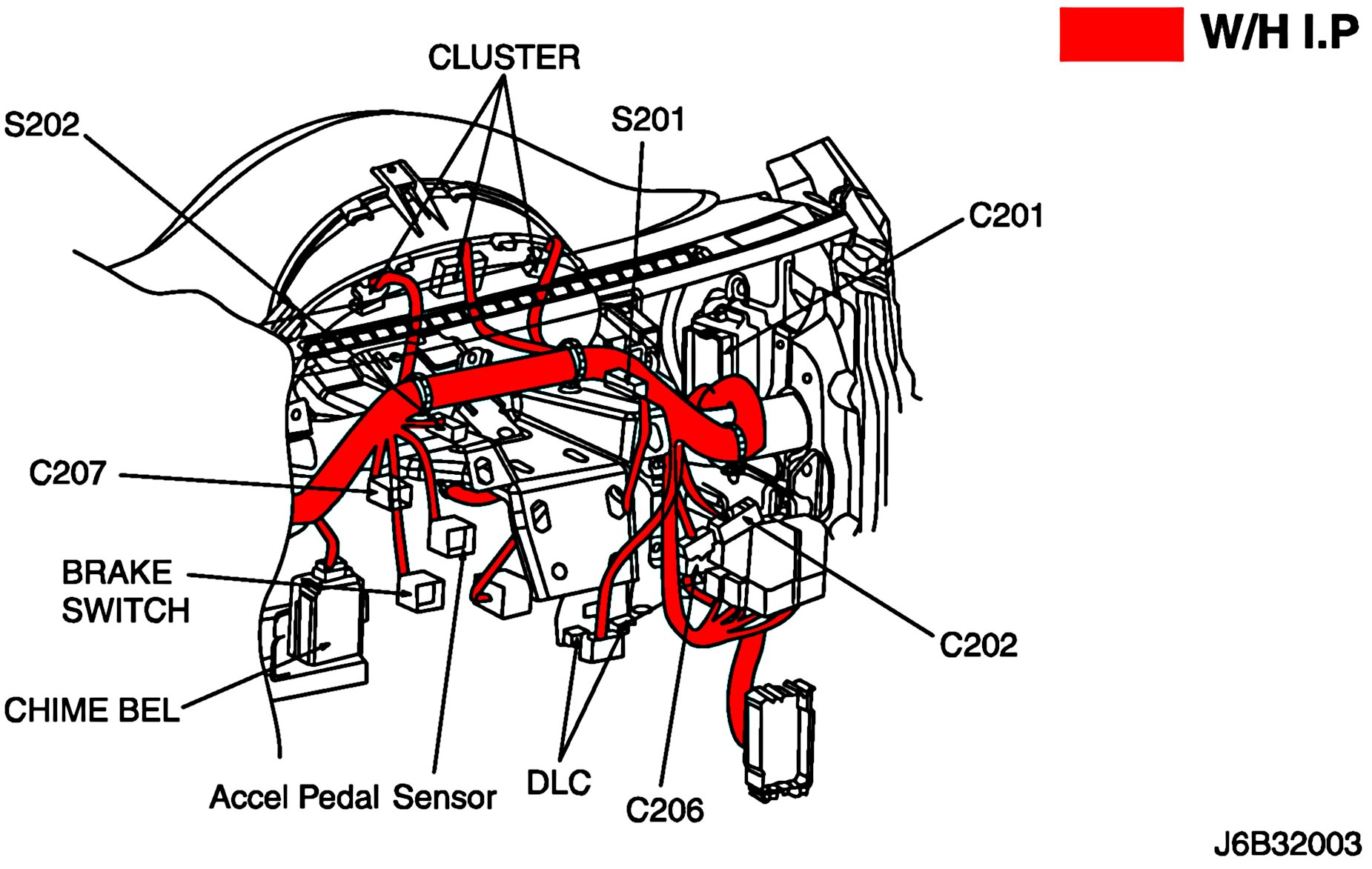

W/H INSTRUMENT PANEL:
POSITION OF CONNECTORS AND GROUNDS
S302 (Notchback):
SPLICE PACK
