For HATCHBACK Model

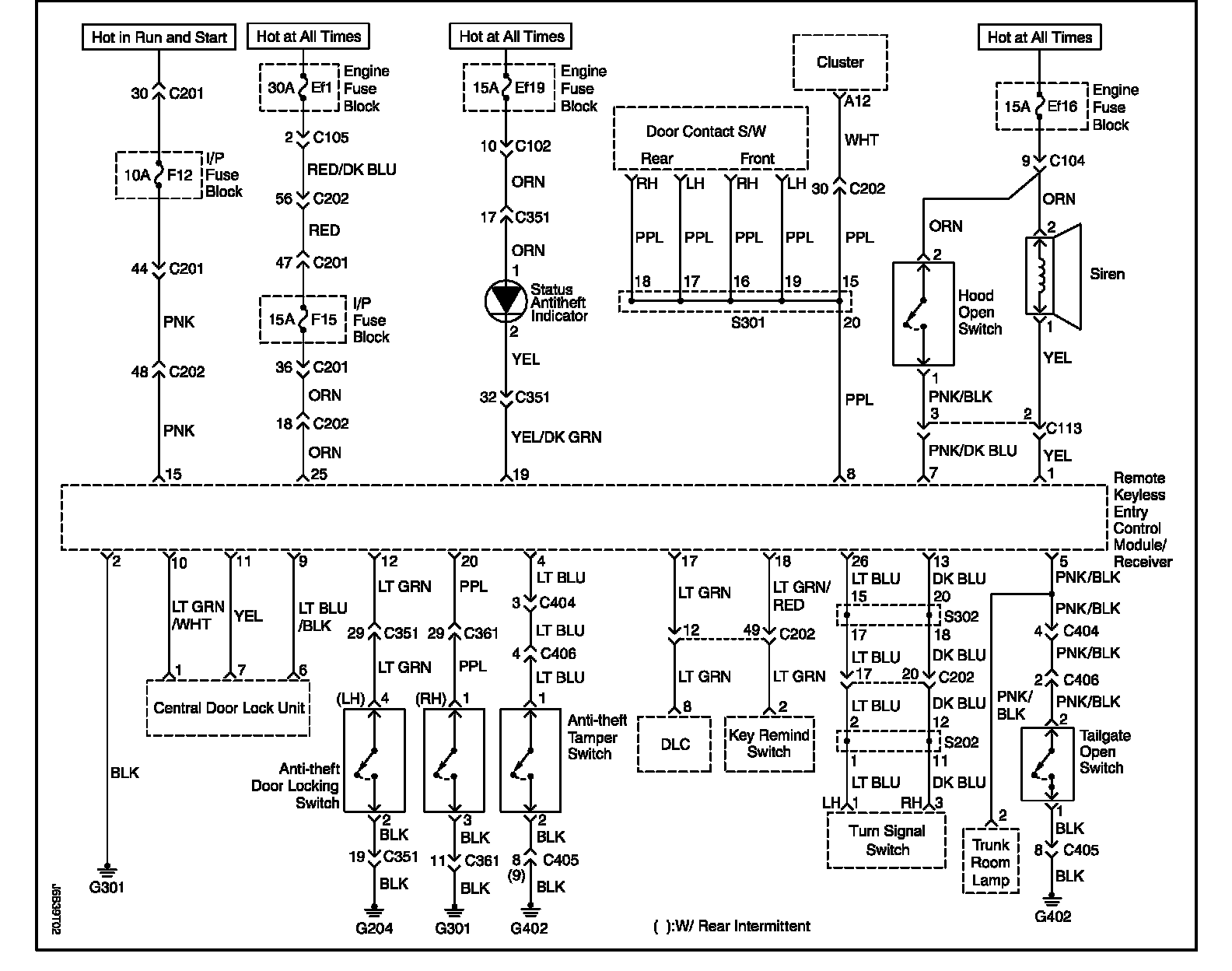

Remote Keyless Entry and Anti-Theft System Circuit Wiring Diagram - For Hatchback Model:
