Remote Keyless Entry and Anti-Theft System Circuit Wiring Diagram
Remote Keyless Entry And Anti-Theft System Circuit Wiring DiagramFor NOTCHBACK Model
For HATCHBACK Model
For STATION WAGON Model

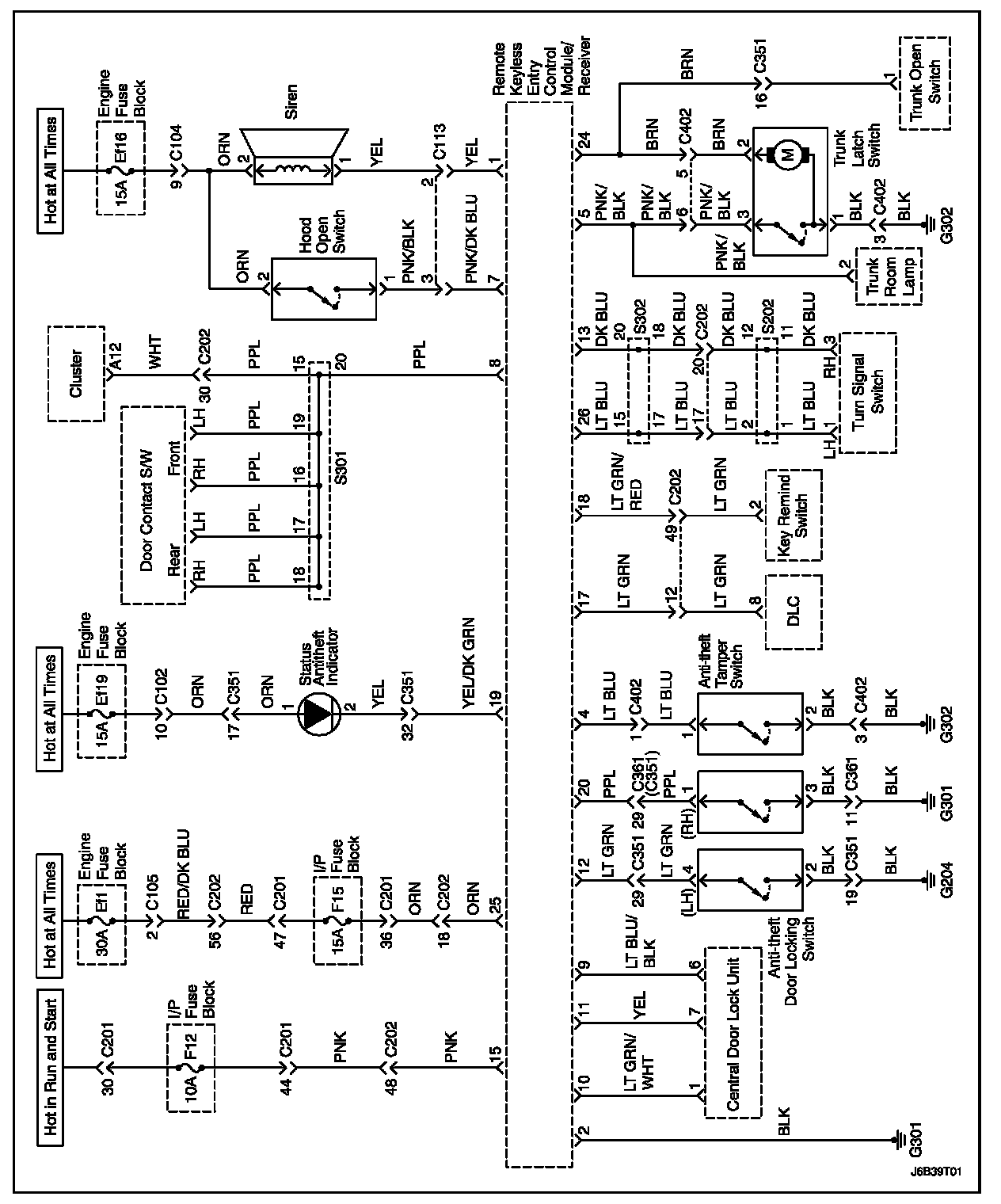

For NOTCHBACK Model

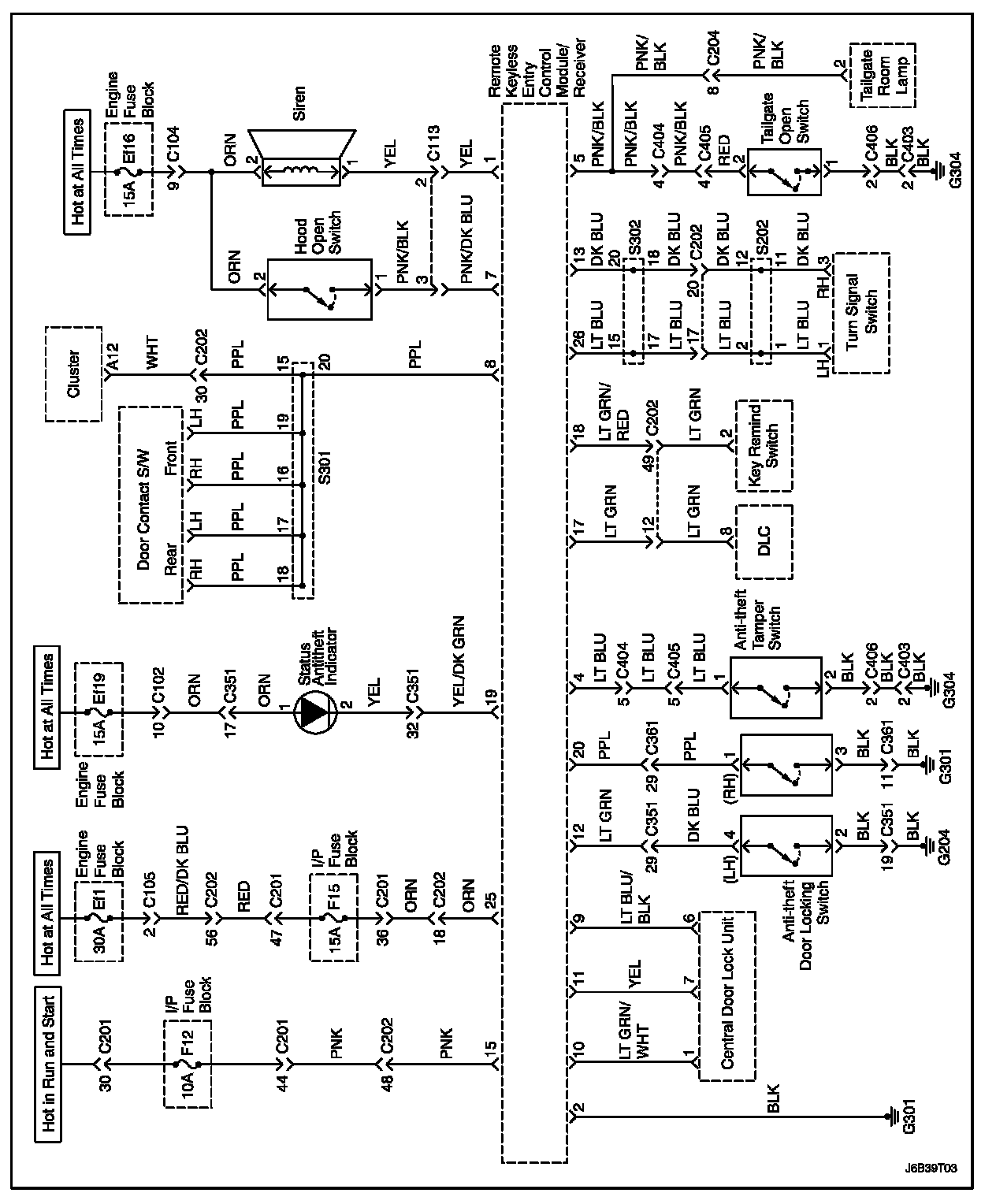

For HATCHBACK Model

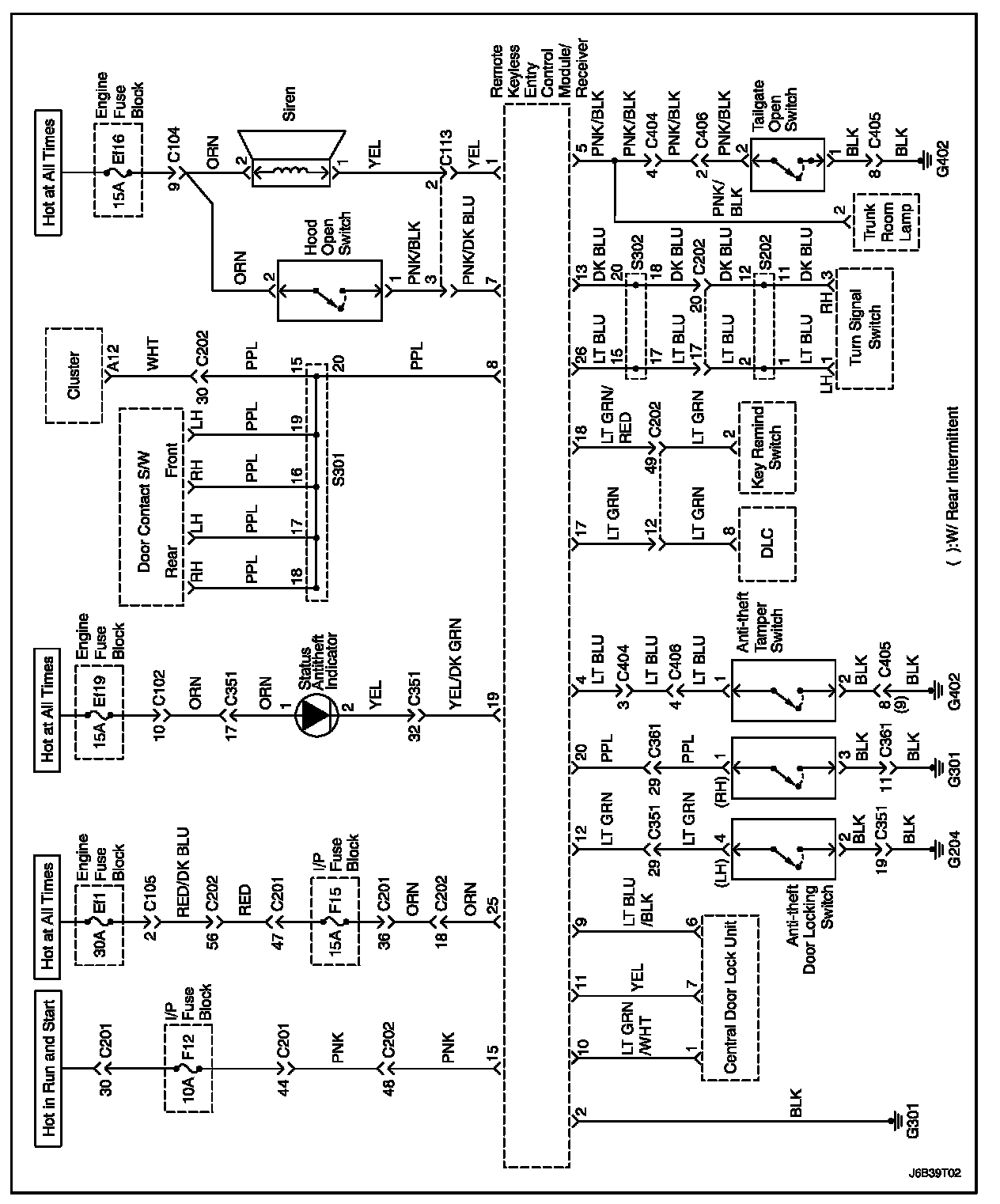

For STATION WAGON Model
