Front Bumper Cover / Fascia: Service and Repair

Front Bumper Fascia Removal And Installation

Removal

1. Disconnect the negative battery cable.
2. Remove the front wheel well splash shields.
3. Remove the fog lamps and the headlamps.

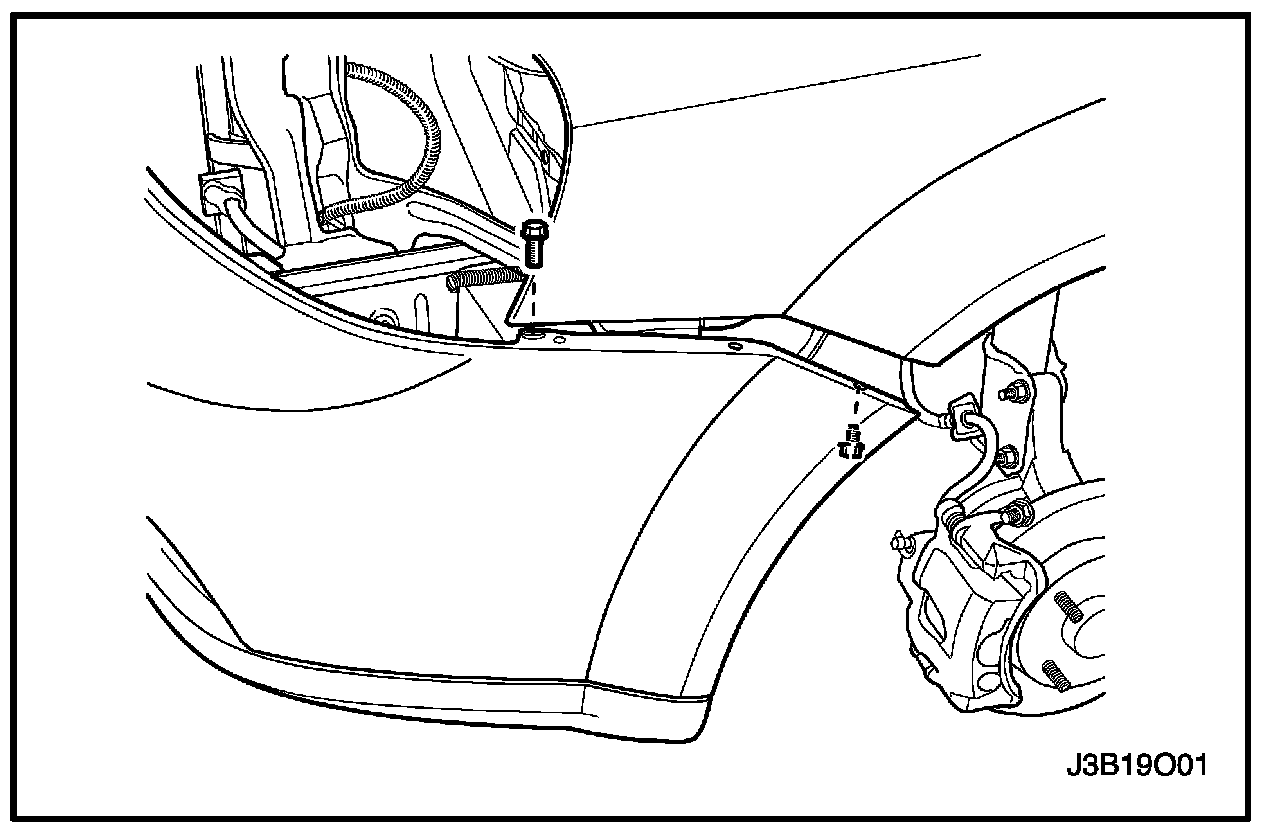

4. Remove the fender-to-fascia bolts and the screws.







5. Remove the lower fascia clips.

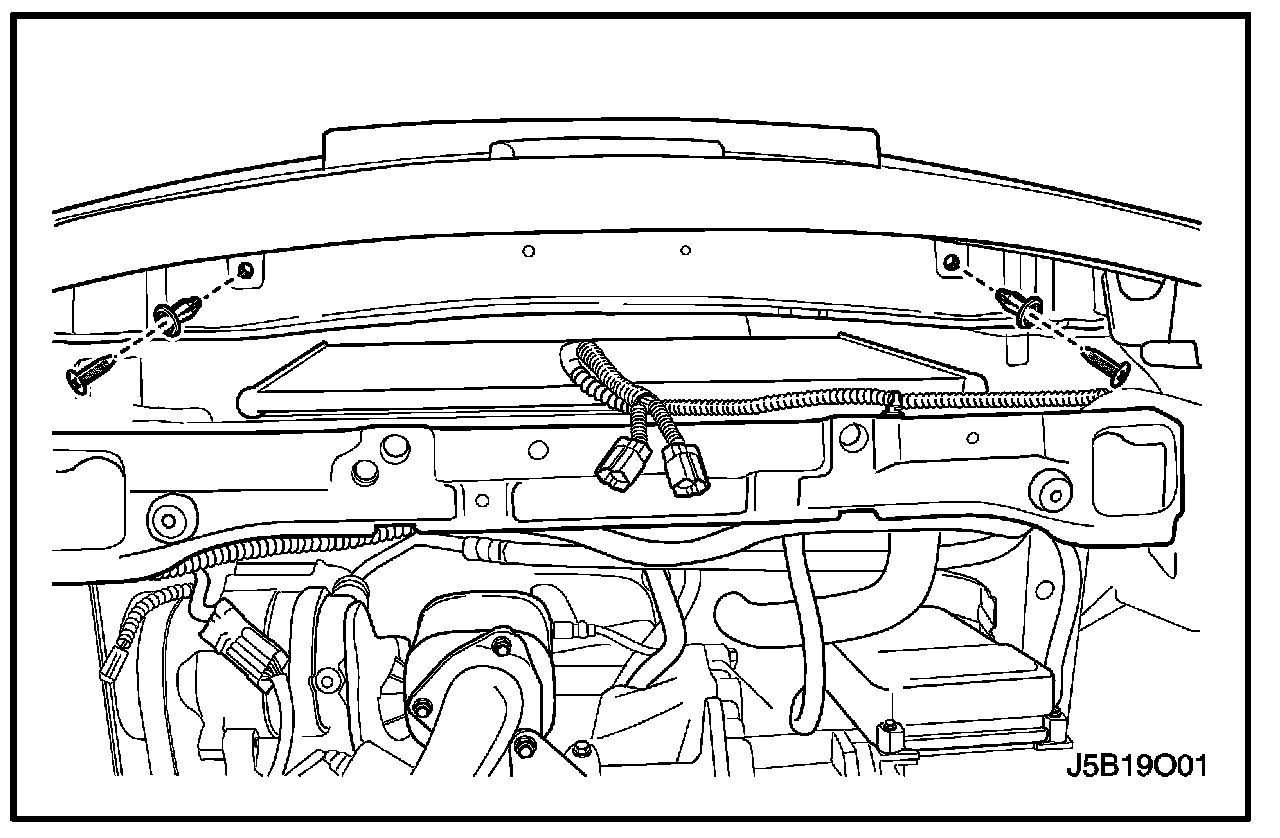

6. Remove the upper fascia clips.

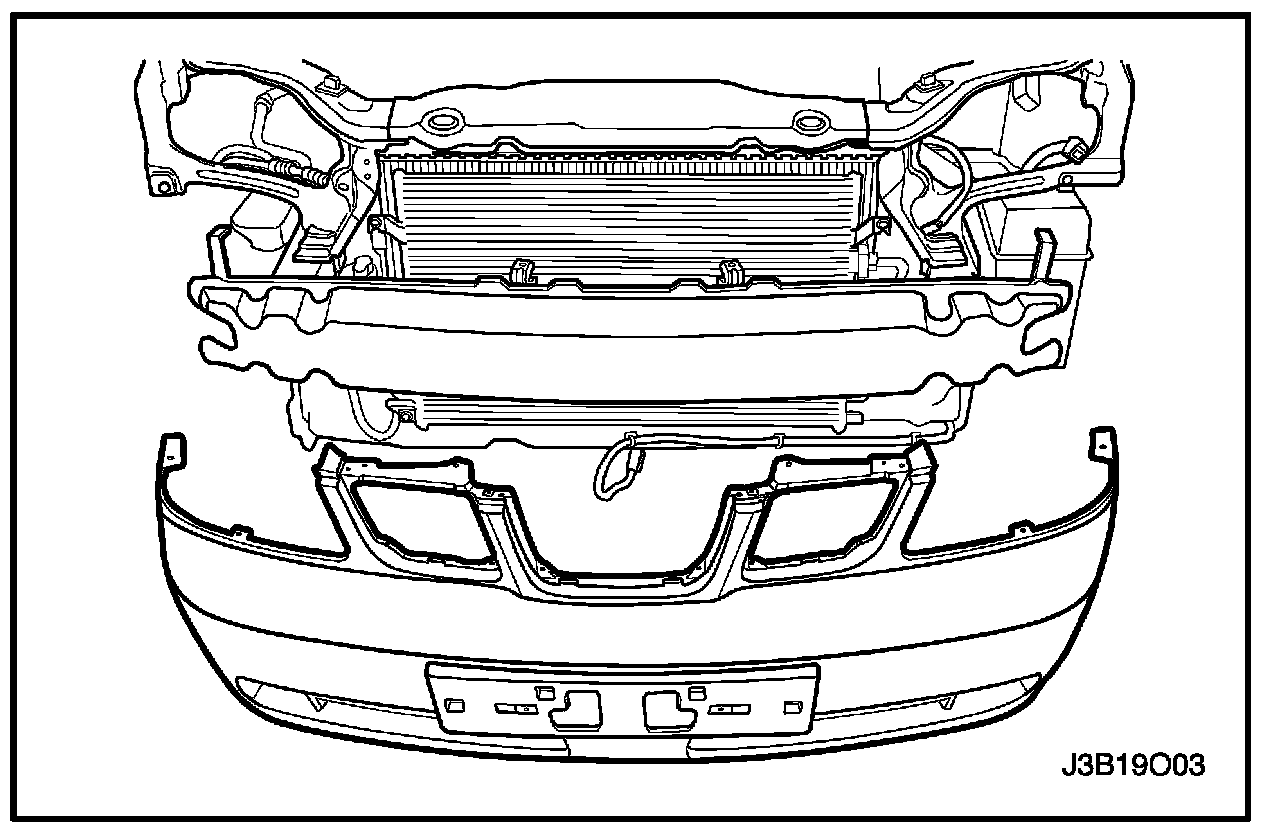

7. Remove the front bumper fascia.







Installation

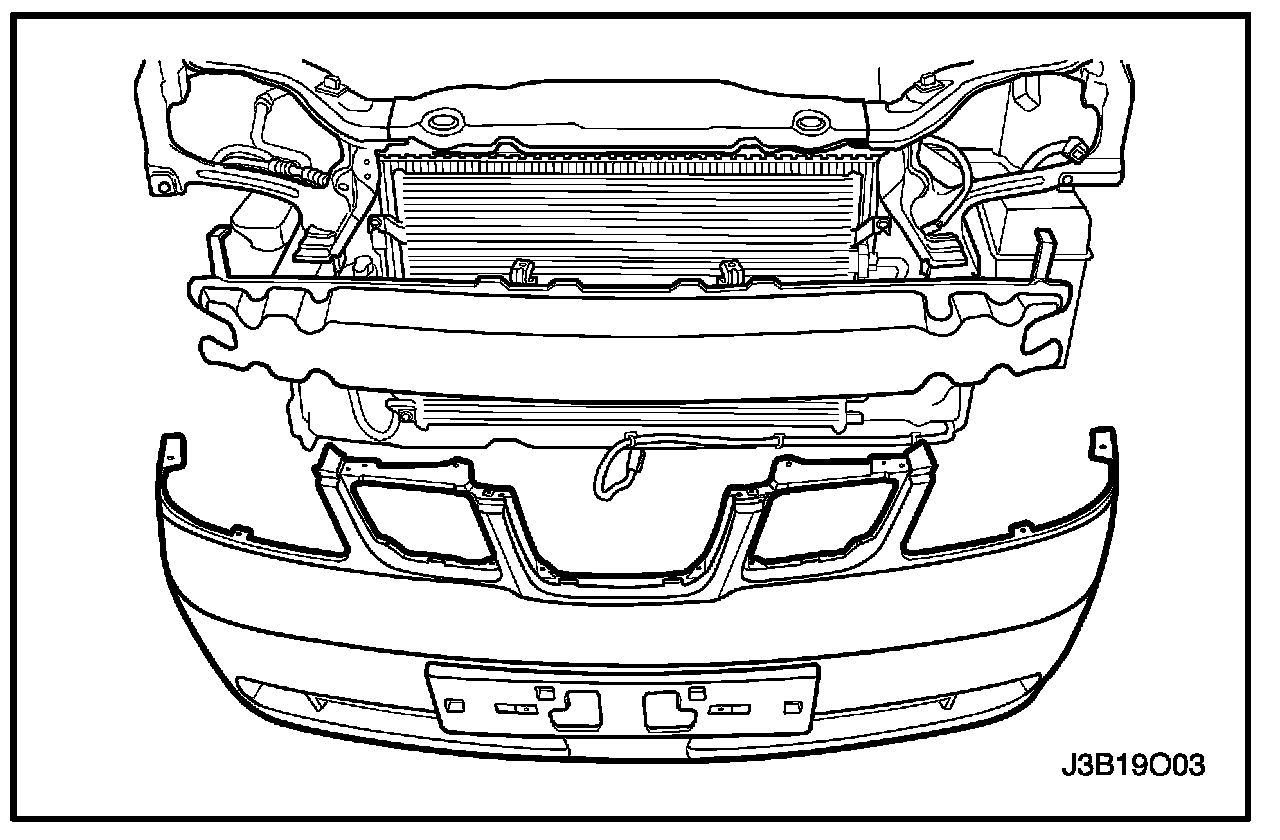

1. Install the front bumper fascia.
2. Install the upper fascia clips.







3. Install the lower fascia clips.







4. Install the fender-to-fascia bolts and the screws.

Tighten:
Tighten the fender-to-fascia bolts to 10 Nm (89 in. lbs.).
Tighten the fender-to-fascia screws to 2 Nm (18 in. lbs.).

5. Install the headlamps and the fog lamps.
6. Install the front wheel well splash shields.
7. Connect the negative battery cable.
