Shift Linkage Adjustment (Type A)

Disconnect the negative battery cable.
Position the gearshift lever into NEUTRAL.
Loosen the rod clamp bolt.

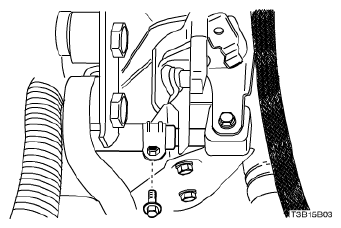

Fig 1: Identifying Rod Clamp Bolt
Courtesy of SUZUKI OF AMERICA CORP.
Remove the adjustment hole plug from the shift lever cover.
Turn the gearshift rod and fully insert a 5 mm (0.2 in.) gauge pin into the adjustment hole.

Fig 2: Inserting Gauge Pin Into Adjustment Hole
Courtesy of SUZUKI OF AMERICA CORP.
Remove the boot from the console.
Pull the boot upward to expose the shift control lever mechanism.
Position the gearshift lever close to left side of the NEUTRAL position.
Insert a 5 mm (0.2 in.) gauge pin into the holes to align the gearshift lever with the gearshift lever housing.

Fig 3: Aligning Gearshift Lever With Gearshift Lever Housing
Courtesy of SUZUKI OF AMERICA CORP.
Tighten the rod clamp bolt.
Tighten:

Tighten the rod clamp bolt to 14 N.m (124 lb-in).

Fig 4: Identifying Rod Clamp Bolt
Courtesy of SUZUKI OF AMERICA CORP.
Remove the 5 mm (0.2 in.) gauge pin from the adjustment hole.
Install the adjustment hole plug.
Remove the 5 mm (0.2 in.) gauge pin from the gearshift lever.
Install the boot to the console.
Connect the negative battery cable.

Fig 5: Identifying Gauge Pin

Courtesy of SUZUKI OF AMERICA CORP.
