Drive Axle Seal Removal and Installation: Installation

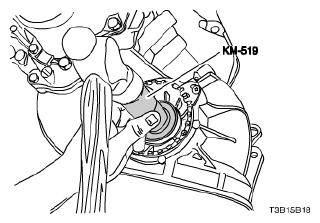

- Install the new drive axle seal using the ring installer KM-519 and a hammer.
- Coat the seal lip with the transaxle fluid.
- Install the drive axle. Refer to DRIVE AXLE ASSEMBLY REMOVAL AND INSTALLATION .
