Concentric Slave Cylinder Removal and Installation: Removal

Remove the transaxle from the vehicle. Refer to TRANSAXLE ASSEMBLY REMOVAL AND INSTALLATION .
Remove the concentric slave cylinder retaining bolts.
Disconnect the concentric slave cylinder pipe from the concentric slave cylinder.

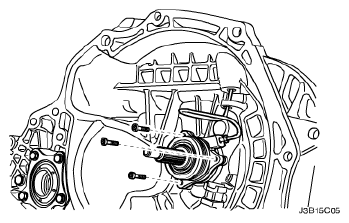

Fig 1: Identifying Concentric Slave Cylinder Retaining Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Remove the bushing from the concentric slave cylinder pipe in the transaxle housing.
Remove the concentric slave cylinder pipe.

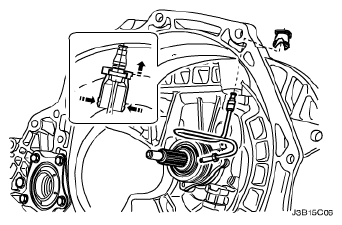

Fig 2: Identifying Bushing From Concentric Slave Cylinder Pipe In Transaxle Housing
Courtesy of SUZUKI OF AMERICA CORP.
Remove the O-ring and the concentric slave cylinder.

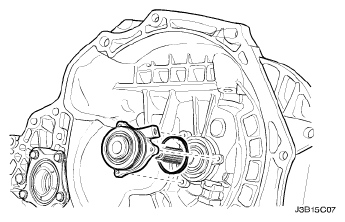

Fig 3: Identifying O-Ring And Concentric Slave Cylinder
Courtesy of SUZUKI OF AMERICA CORP.
