Concentric Slave Cylinder Removal and Installation: Installation

Install the concentric slave cylinder and the pipe.
After installing the pipe screw provisionally, tighten the concentric slave cylinder retaining bolts.
Tighten:

Tighten the concentric slave cylinder retaining bolts to 7 N.m (62 lb-in).
Tighten the pipe screw.
Tighten:

Tighten the concentric slave cylinder-to-clutch oil pipe screw to 15 N.m (11 lb-ft).

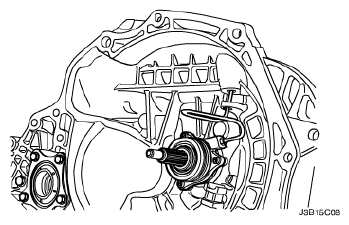

Fig 1: Identifying Concentric Slave Cylinder Retaining Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Install the bushing onto the transaxle housing.
Connect the pipe with bushing.
Install the transaxle into the vehicle. Refer to TRANSAXLE ASSEMBLY REMOVAL AND INSTALLATION .

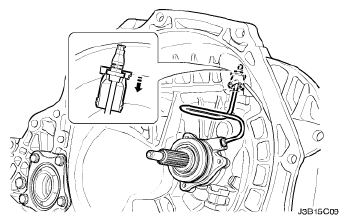

Fig 2: Identifying Pipe With Bushing
Courtesy of SUZUKI OF AMERICA CORP.
