Clutch Components

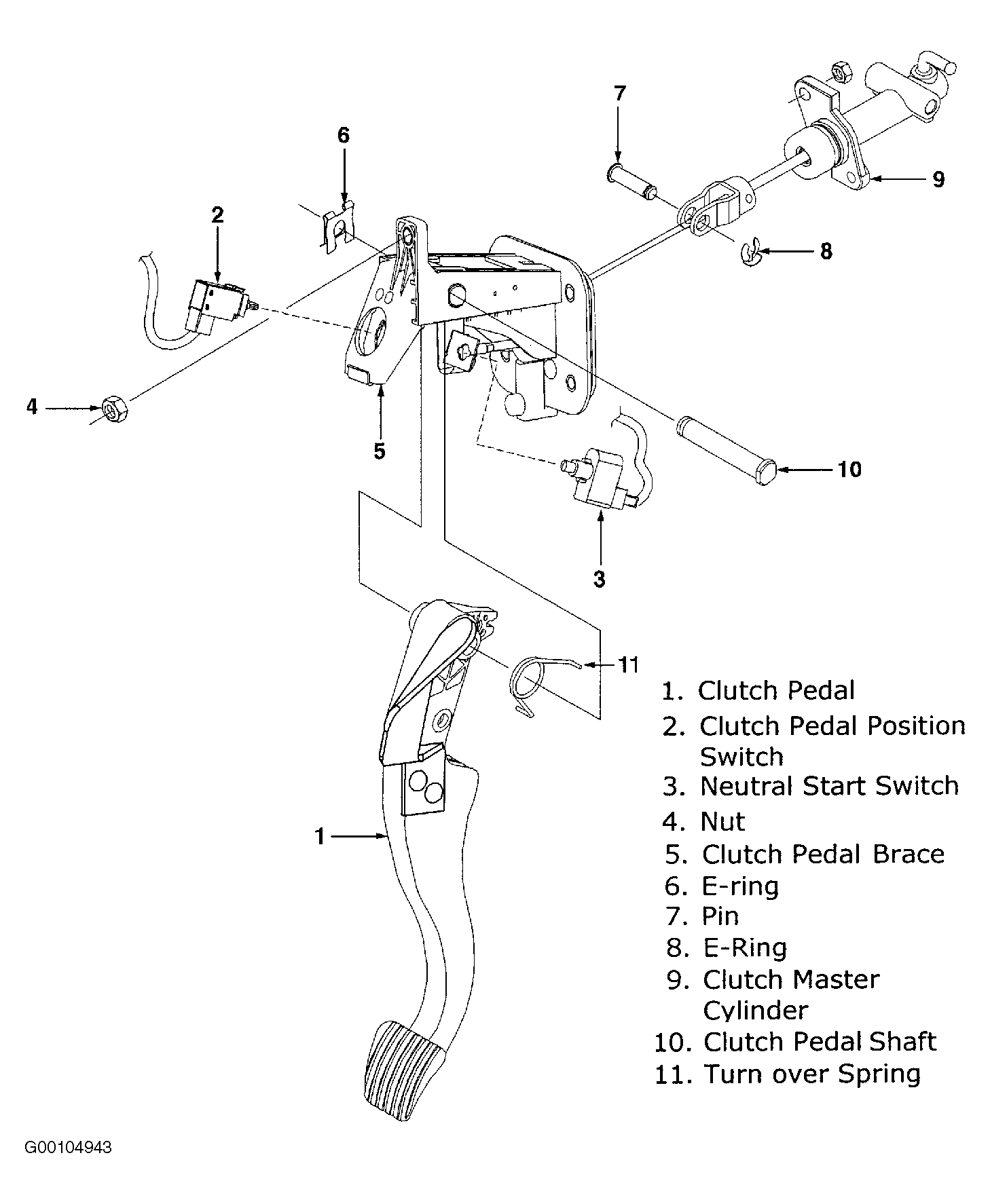

Fig 1: Identifying Clutch Pedal, Clutch Master Cylinder And Pin (2006)

Courtesy of SUZUKI OF AMERICA CORP.

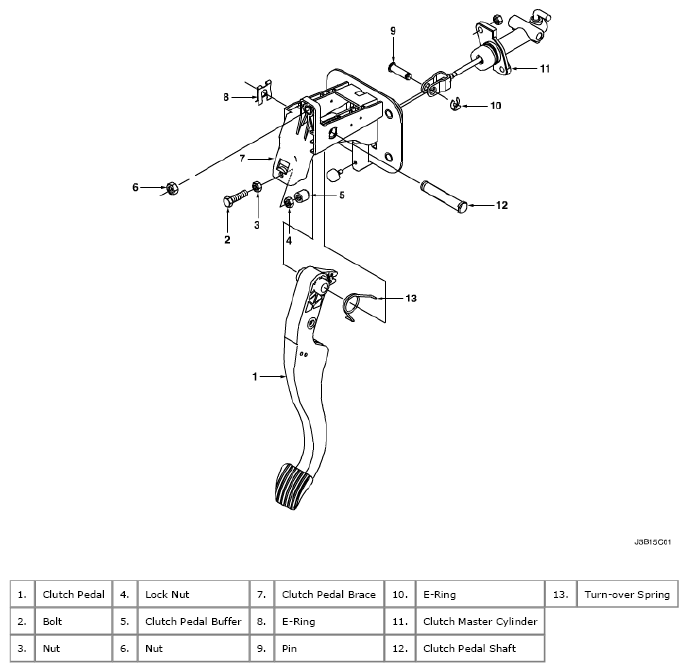

Fig 2: Identifying Clutch Pedal, Clutch Master Cylinder And Pin (2007)

Courtesy of SUZUKI OF AMERICA CORP.

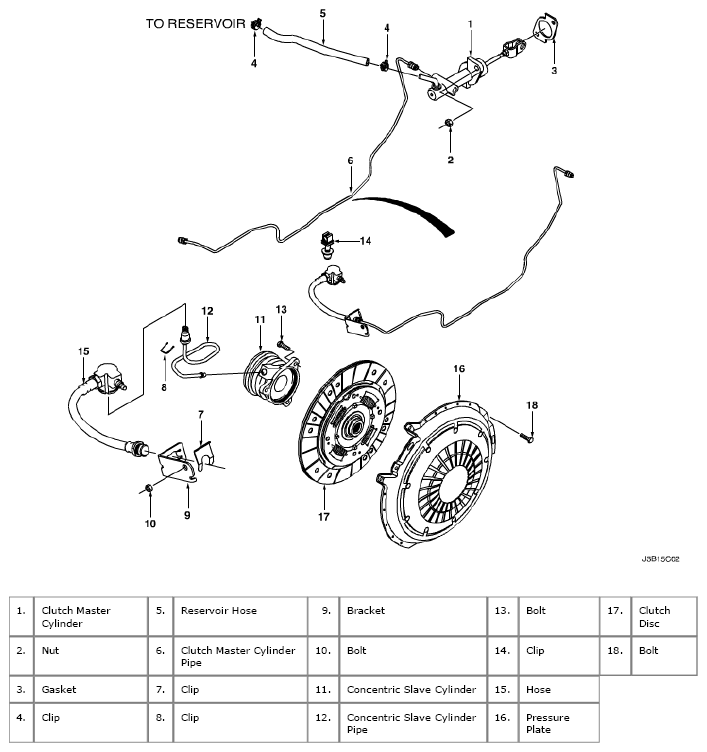

Fig 3: Identifying Pressure Plate, Clutch Disc And Clutch Master Cylinder

Courtesy of SUZUKI OF AMERICA CORP.
