Trailing Link Removal and Installation: Removal

Raise and suitably support the vehicle.
Remove the rear trailing link-to-rear knuckle nut.
Remove the rear trailing link-to-trailing link bracket nut and the rear trailing link-to-knuckle bolt.
Remove the rear trailing link.

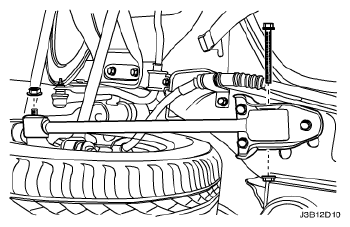

Fig 1: Identifying Rear Trailing Link-To-Knuckle Bolt
Courtesy of SUZUKI OF AMERICA CORP.
