Trailing Link Removal and Installation: Installation

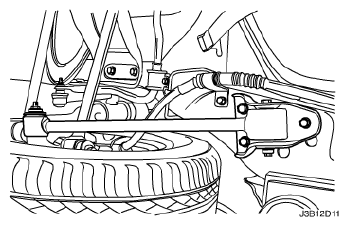

- Install the rear trailing link.
- Install the rear trailing link bracket nut and the bolt.
Tighten:
Tighten the rear trailing link-to-trailing link bracket nut to 100 N.m (74 lb-ft).
- Install the trailing link-to-knuckle nut.
Tighten:
Tighten the rear trailing link-to-knuckle nut to 150 N.m (110 lb-ft).
- Lower the vehicle.
