Stabilizer Shaft Removal and Installation: Installation

  1. Install the stabilizer shaft, the insulators, and the stabilizer shaft clamps.
  2. Install the stabilizer shaft-to-stabilizer link nut.

    Tighten:

    Tighten the stabilizer shaft-to-stabilizer link nut to 47 N.m (35 lb-ft).

  3. Install the stabilizer shaft clamp bolts.

    Tighten:

    Tighten the stabilizer shaft clamp bolts to 40 N.m (30 lb-ft).

  4. Lower the vehicle.

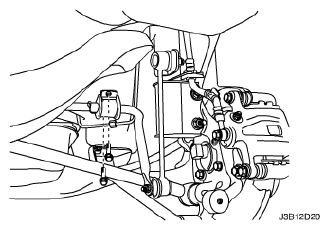

    Fig 1: Removing/Installing Stabilizer Shaft Clamp And Bolts
    G04716868Courtesy of SUZUKI OF AMERICA CORP.
