Stabilizer Link Removal and Installation: Removal

  1. Raise and suitably support the vehicle.
  2. Remove the wheel. Refer to WHEEL REMOVAL AND INSTALLATION .
  3. Remove the stabilizer shaft-to-stabilizer link nut.
  4. Remove the stabilizer link-to-strut assembly nut.
  5. Remove the stabilizer link.

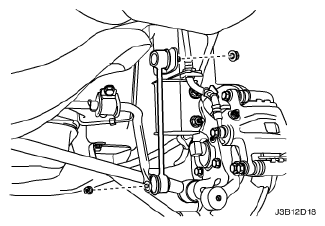

    Fig 1: Removing/Installing Stabilizer Link Nuts
    G04716870Courtesy of SUZUKI OF AMERICA CORP.
